Search results for 'LCW'

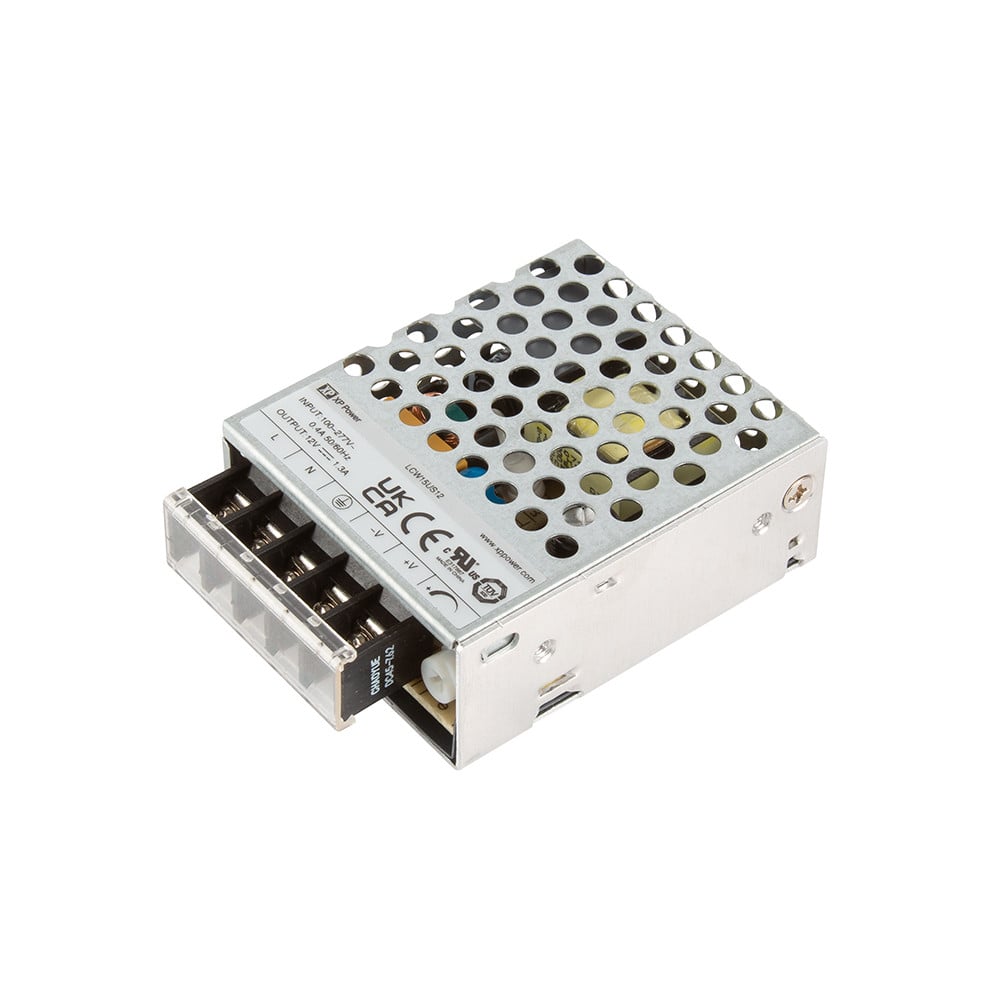

LCW15

LCW15

10W - 15W

  • 15W convection cooled
  • Integrated connector cover
  • ITE & industrial approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 3.3V to 48VDC
  • Output voltage trim ±10%
  • Efficiency to 83%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info

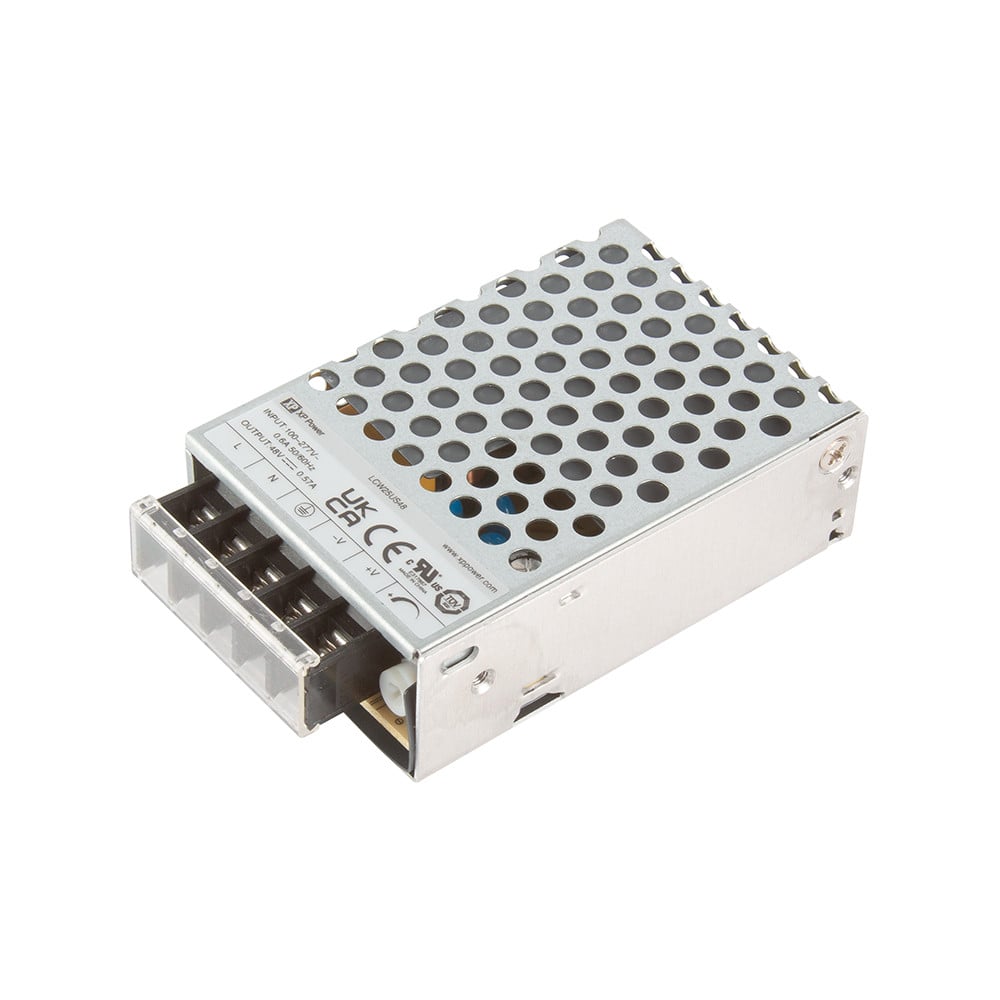

LCW25

LCW25

20W - 25W

  • 25W convection cooled
  • Integrated connector cover
  • ITE & industrial approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 3.3V to 48VDC
  • Output voltage trim ±10%
  • Efficiency to 88%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info
LCW35

LCW35

35W

  • 35W convection cooled
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 24VDC
  • Output voltage trim ±10%
  • Efficiency to 88%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info

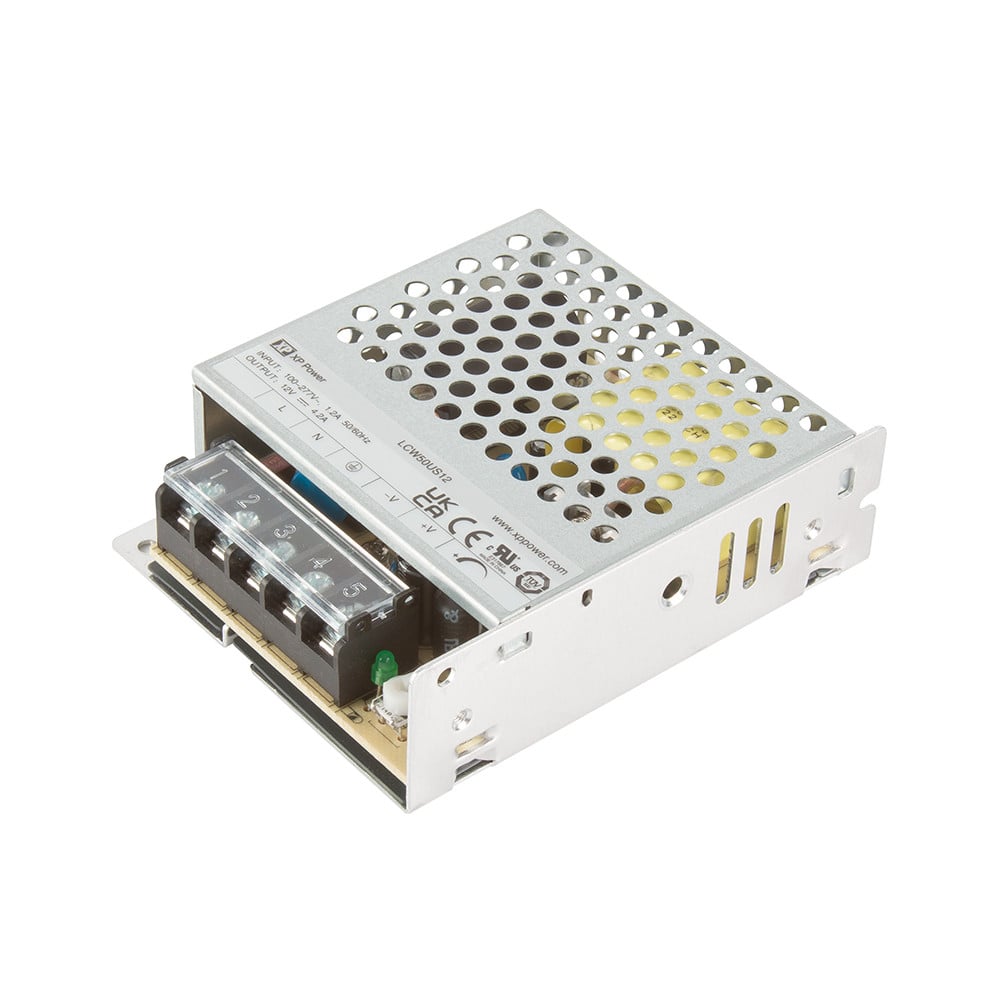

LCW50

LCW50

50W

  • 50W convection cooled
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48VDC
  • Output voltage trim ±10%
  • Efficiency to 90%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info

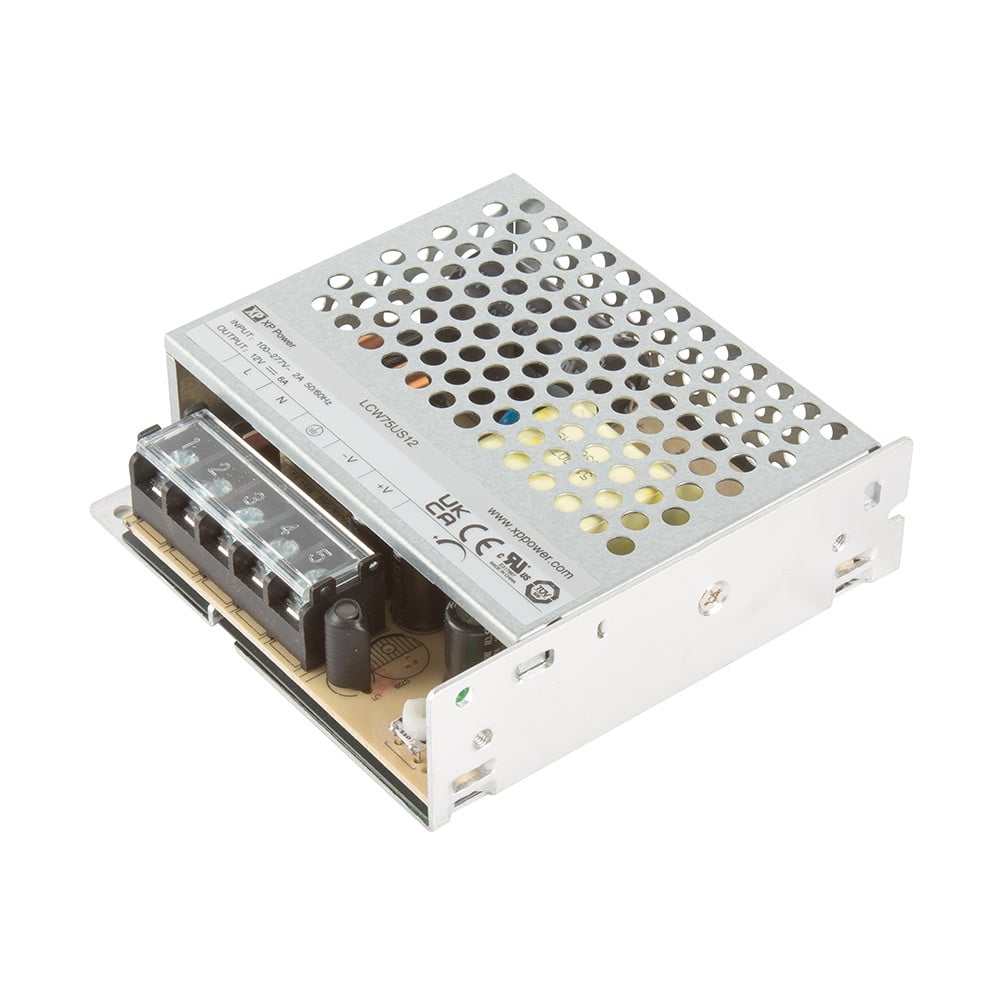

LCW75

LCW75

75W

  • 75W convection cooled
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48.0VDC
  • Output voltage trim ±10%
  • Efficiency to 90%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info

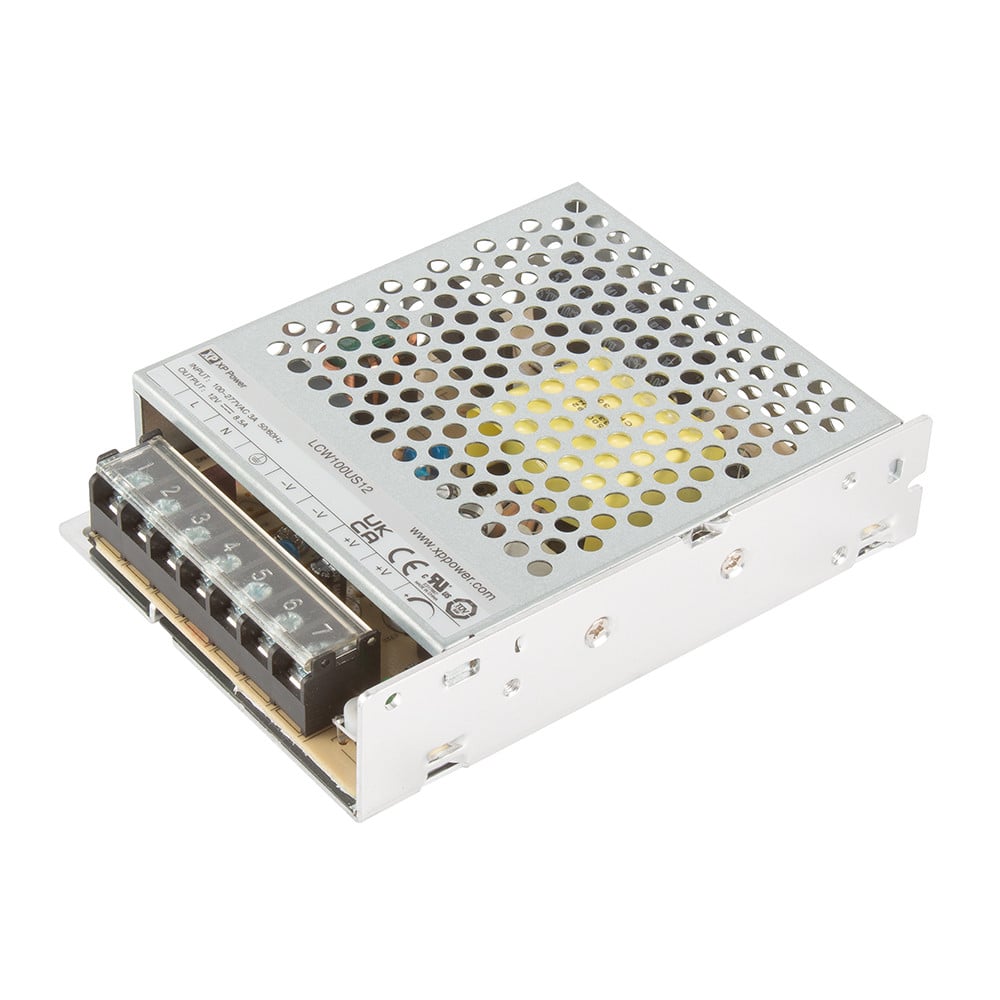

LCW100

LCW100

100W

  • 100W convection cooled
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48VDC
  • Output voltage trim ±10%
  • Efficiency to 90%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info
LCW150

LCW150

150W

  • 150W convection cooled
  • Active PFC
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 12 to 48VDC
  • Output voltage trim
  • Remote On/Off
  • Efficiency to 88%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info
LCW200

LCW200

200W

  • 200W convection cooled
  • Active PFC
  • Integrated connector cover
  • ITE & industrial approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48VDC
  • Output voltage trim
  • Efficiency to 90%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info
LCW320

LCW320

320W

  • 320W fan cooled
  • Active PFC
  • Integrated connector cover
  • ITE & industrial approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48VDC
  • Output voltage trim
  • Efficiency to 89%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
More info
