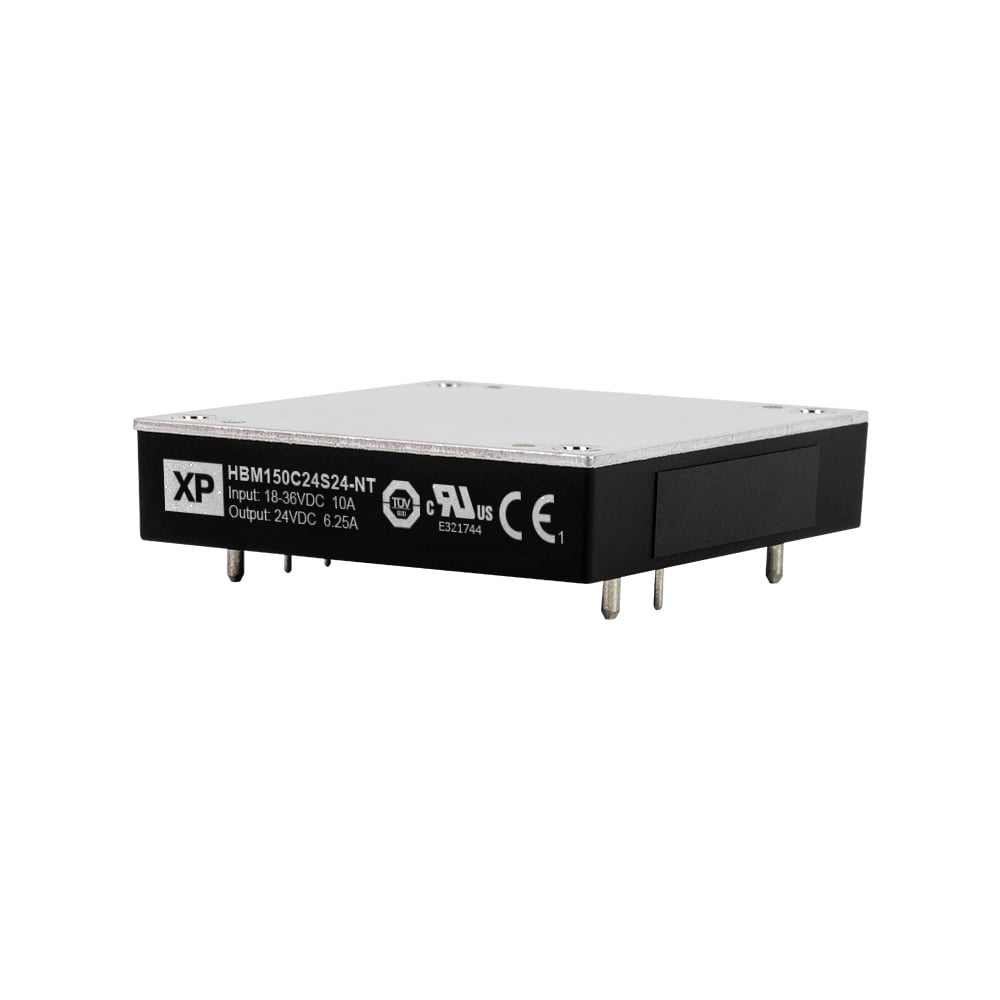

HBM150 Series
2:1 input, 150W, regulated, DC-DC converters in a ½ brick package for medical (2 x MOPP) applications
The HBM150C series of compact 150W half‑brick DC DC converters offer single output voltages of 12V, 15V and 24VDC from a wide 2:1 input range and are specifically designed for demanding medical applications. Its high efficiency and baseplate cooling enable effective thermal management ensuring high reliability in critical applications.
Featuring worldwide medical safety approvals, 2 x MOPP isolation, <10μA leakage current, remote On/Off, remote sense and output trim, the HBM150C enables easy integration into a wide range of CF-rated medical applications including patient monitoring, medical imaging, diagnostic equipment, surgical systems and industrial robotics, telecommunications and battery powered equipment.
Features
Regulated single outputs 12V to 24VDC
2:1 wide input range 18V to 36VDC
5kVAC input to output isolation
Wide output voltage trim
<10μA patient leakage current
High efficiency, up to 91.5%
IEC60601-1 medical safety agency approvals
Remote On/Off, remote sense
Overvoltage overtemperature & short circuit protection
-40°C to +100°C operating temperature
3 year warranty
