LCW320 Series

AC-DC Power Supplies

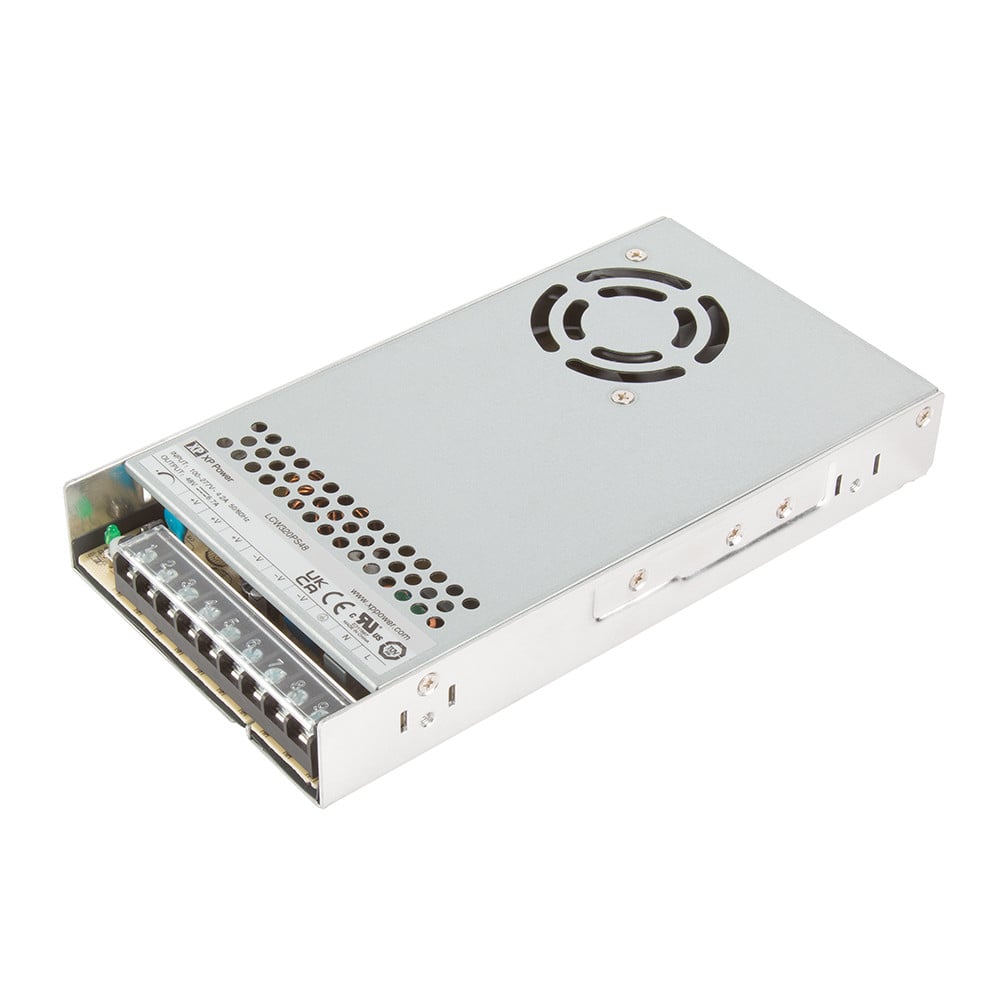

LCW320 Series

Low cost, wide 85-305VAC input, enclosed 320W AC-DC power supplies

The LCW320 series of regulated output fan cooled 320W AC-DC power supplies are designed to provide a cost effective solution for industrial electronics and technology applications. Features include wide range AC input from 85-305VAC, active PFC, output voltage adjustment, a power ‘ON’ LED, low stand-by power consumption, output short circuit protection, over current and over voltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications.

datasheet Contact us

Features

  • 320W fan cooled
  • Active PFC
  • Integrated connector cover
  • ITE & industrial approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 48VDC
  • Output voltage trim
  • Efficiency to 89%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
LCW320 LCW320PS05 320 W Single Phase 5V 60A
LCW320 LCW320PS12 320 W Single Phase 12V 26.7A
LCW320 LCW320PS15 320 W Single Phase 15V 21.4A
LCW320 LCW320PS24 320 W Single Phase 24V 13.4A
LCW320 LCW320PS48 320 W Single Phase 48V 6.7A

Specifications


Dimensions

8.46 x 4.53 x 1.18 in (215.0 x 115.0 x 30.0mm)

Input Voltage

85 to 305VAC, 115/230 typical or 120 to 430VDC. See datasheet.

No Load Input Power

0.3W

Harmonic Currents

EN61000-3-2 Class A

Efficiency

88% typical. 230VAC full load (see datasheet)

Operating Temperature

-30°C to +70°C. See datasheet

Isolation

Input to Output 4000VAC, Input to Ground 2000VAC, Output to Ground 500VAC. Class I construction

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1

Other Safety Approvals

Meets all applicable directives and legislation

EMC

EN55032 Class B conducted & radiated
