PBR500 Series
500W chassis mount AC-DC power supplies with medical (BF) & ITE approvals

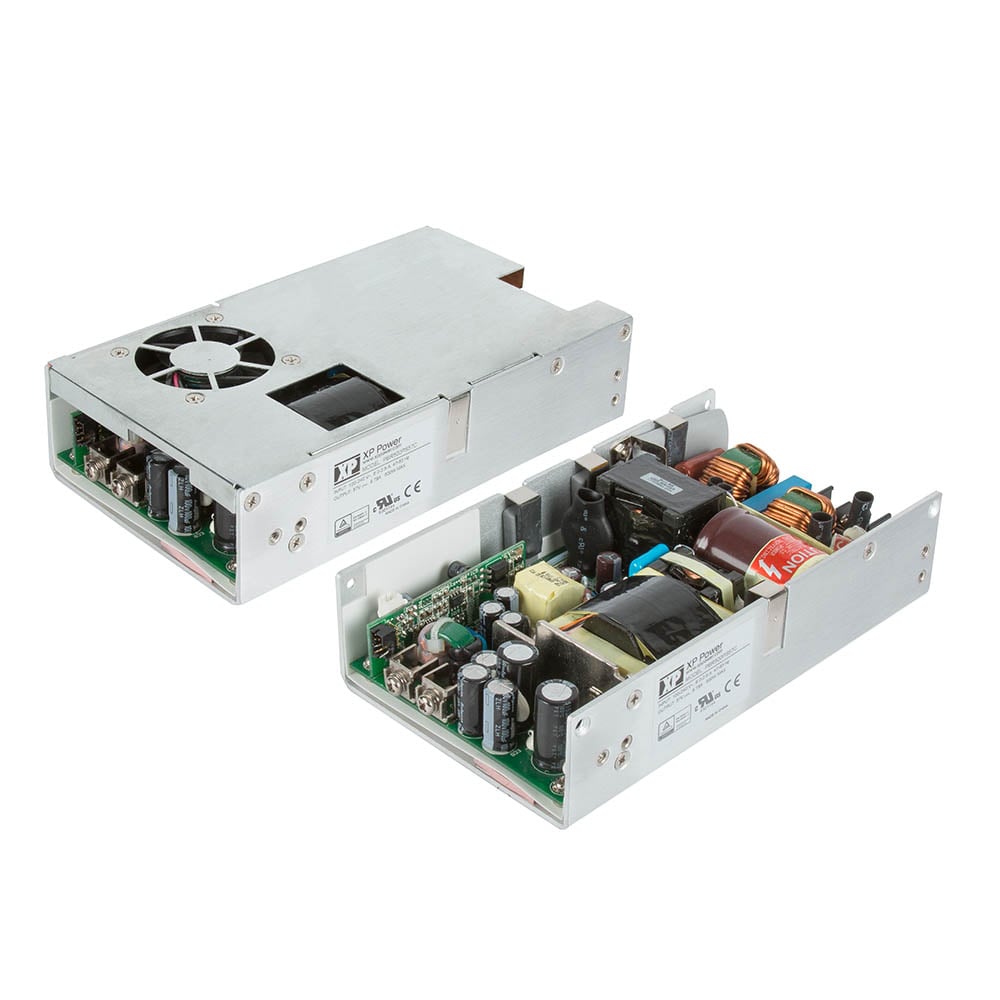

Designed for medical (BF) applications, the chassis mount PBR500, has medical 2 x MOPP (Input to Output), 1 x MOPP (Input to Ground) & ITE safety approvals. Available in two case styles: as a U channel for convection (350-400W) or external 30CFM forced air cooling (450-500W) (model numbers with suffix B); or enclosed (model numbers with suffix C) with built-in fan cooling (450-500W).
With BF class insulation the PBR500 achieves EN55011/32 Level B conducted emissions compliance whilst maintaining very low earth leakage currents making it suitable for medical (BF), industrial electronics and ITE applications where a 350/500W chassis mount power supply is required.
datasheet Contact usFeatures
- 450/500W fan cooled 350W/400W convection cooled
- 7” x 4” footprint, 1.7" profile
- Regulated single outputs 12 to 57VDC
- Input range 80 to 264VAC
- ITE & medical (BF) safety approvals
- 5V 0.5A standby
- 12V 0.3A fan supply
- AC OK, Inhibit & Remote Sense
- Class B conducted & radiated emissions
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
PBR500PS12B | 500 W | Single Phase | 12V | 37.5A |
|
|
|
|
|
PBR500PS15B | 500 W | Single Phase | 15V | 30A |
|
|
|
|
|
PBR500PS18B | 500 W | Single Phase | 18V | 27.78A |
|
|
|
|
|
PBR500PS24B | 500 W | Single Phase | 24V | 20.84A |
|
|
|
|
|
PBR500PS28B | 500 W | Single Phase | 28V | 17.86A |
|
|
|
|
|
PBR500PS36B | 500 W | Single Phase | 36V | 13.89A |
|
|
|
|
|
PBR500PS48B | 500 W | Single Phase | 48V | 10.42A |
|
|
|
|
|
PBR500PS57B | 500 W | Single Phase | 57V | 8.78A |
|
|
|
|
|
PBR500PS12C | 500 W | Single Phase | 12V | 37.5A |
|
|
|
|
|
PBR500PS15C | 500 W | Single Phase | 15V | 30A |
|
|
|
|
|
PBR500PS18C | 500 W | Single Phase | 18V | 27.78A |
|
|
|
|
|
PBR500PS24C | 500 W | Single Phase | 24V | 20.84A |
|
|
|
|
|
PBR500PS28C | 500 W | Single Phase | 28V | 17.86A |
|
|
|
|
|
PBR500PS36C | 500 W | Single Phase | 36V | 13.89A |
|
|
|
|
|
PBR500PS48C | 500 W | Single Phase | 48V | 10.42A |
|
|
|
Specifications
Dimensions
PBR500: 7.0 x 4.00 x 1.70‚ (177.8 x 101.6 x 44.5 mm)
Input Voltage
80 to 264VAC, derate to 90% at 85 VAC & 80%at 80 VAC
Harmonic Currents
Conducted & Radiated: EN55011/EN55032, Class B
Efficiency
90% (230 VAC, 100% load)
Operating Temperature
-10 to +70 °C (derate Linearly from 100% load at +50 °C to 50% load at +70 °C)
Isolation
Input to Output: 4000 VAC 2 x MOPP Input to Ground: 1500 VAC 1 X MOPP Output to Ground: 1500 VAC 1 X MOPP
Worldwide Safety Approvals
IEC62368-1, IEC60601-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
UL62368-1, CSA C22.2 No. 62368-1, ES60601-1, CSA C22.2 No.60601-1
