AC-DC Power Supplies

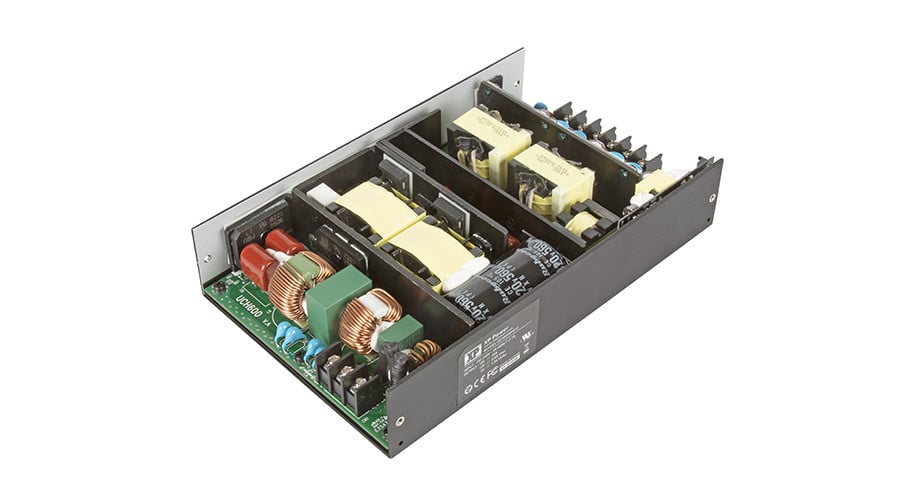

UCH600 Series
600W convection cooled U channel AC-DC power supplies for medical (BF) & ITE applications
Providing 600W of power with convection cooling and designed for ITE, industrial and healthcare applications. The convection cooled design of the UCH600 is ideally suited to the increasing demand for fan-less power solutions across a wide range of applications, removing audible noise and ingress issues, while the very low EMI emissions and high efficiency make for simple integration into the end equipment.
Suitable for BF applications with low audible noise through convection cooling, these power supplies are ideal for home healthcare equipment, hospital beds, patient monitoring, imaging, diagnostic, infusion pumps, & dialysis equipment. Additionally, with ITE & industrial approvals the UCH600 is suitable for robotics, instrumentation, industrial equipment, telecom and datacom applications.
datasheet Contact usFeatures
- 600W convection cooled
- 8.0” x 5.0” footprint, 1.57” profile
- Regulated single outputs 12 to 48VDC
- Input range 90 to 264VAC
- High efficiency, up to 95%
- Power density 5.97W/in³
- ITE & medical (BF) approvals
- Class B conducted & radiated emissions
- Remote On/Off
- 5V 1.0A standby
- -20°C to +70°C operating temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
UCH600PS12 | 600 W | Single Phase | 12V | 50A |
|
|
|
|
|
UCH600PS24 | 600 W | Single Phase | 24V | 25A |
|
|
|
|
|
UCH600PS36 | 600 W | Single Phase | 36V | 16.6A |
|
|
|
|
|
UCH600PS48 | 600 W | Single Phase | 48V | 12.5A |
|
|
|
Specifications
Dimensions
8.00 x 5.00 x 1.57” (203.2 x 127.0 x 40.0 mm)
Input Voltage
12-48VDC
No Load Input Power
1.5W (When main output is Inhibited)
Harmonic Currents
EN55011/32, Class B
Efficiency
95% (230 VAC Full load)
Operating Temperature
-20 to +70°C
Isolation
Input to Output: 4000 VAC (2 x MOPP), Input to Ground: 1500 VAC (1 x MOPP), Output to Ground: 1500 VAC (1 x MOPP)
Worldwide Safety Approvals
IEC62368, IEC60601-1 Ed 3.1 Including Risk Management
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
UL62368-1, ANSI/AAMI ES60601-1 & CSA C22.2 No.60601-1:08
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
