LCW35 Series

AC-DC Power Supplies

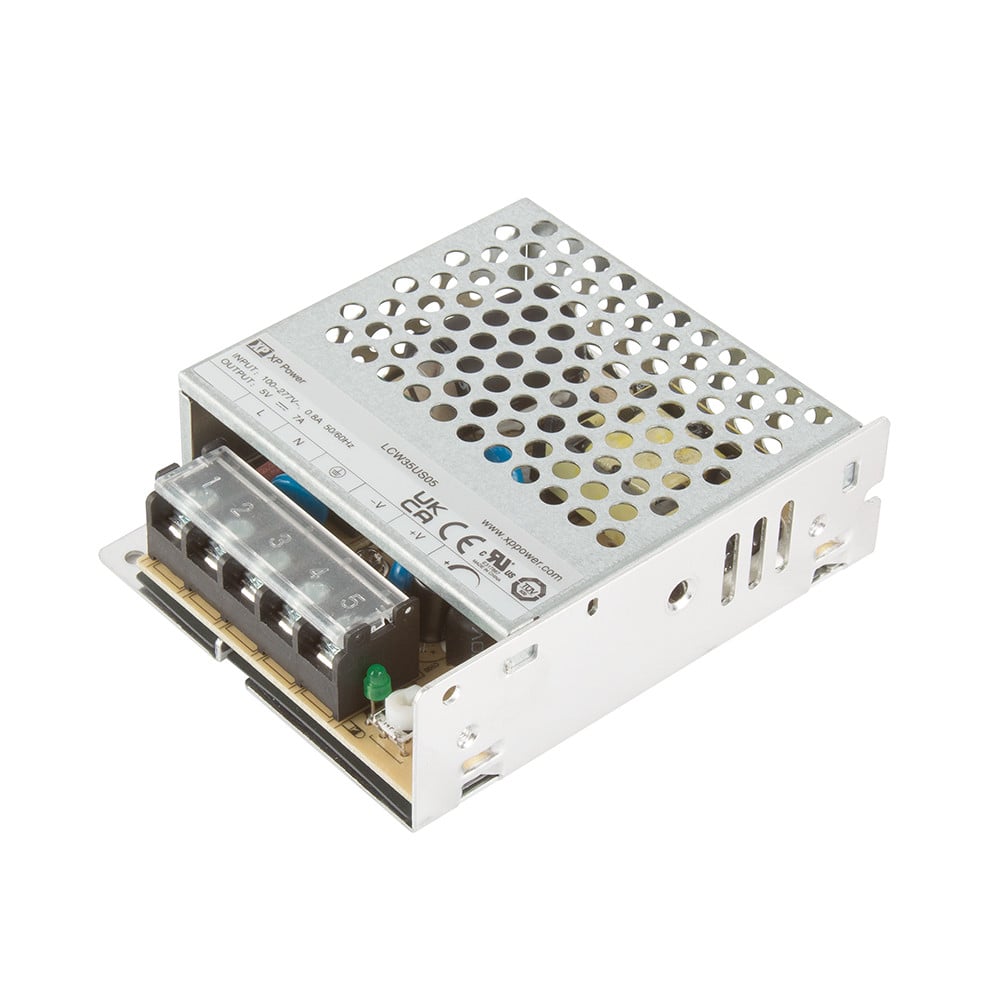

LCW35 Series

Low cost, wide 85-305VAC input, enclosed 35W AC-DC power supplies

The LCW35 series of regulated output convection cooled 35W AC-DC power supplies are designed to provide a cost effective solution for industrial electronics, technology and household applications. Features include wide range AC input from 85-305VAC, output voltage adjustment, low stand-by power consumption, output short circuit protection, over current and over voltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications.

datasheet Contact us

Features

  • 35W convection cooled
  • Integrated connector cover
  • ITE, industrial & household approvals
  • Class B conducted & radiated emissions
  • Input voltage range 85-305VAC
  • Regulated single outputs from 5.0V to 24VDC
  • Output voltage trim ±10%
  • Efficiency to 88%
  • Short circuit, overvoltage & overload protection
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
LCW35 LCW35US05 35 W Single Phase 5V 7A
LCW35 LCW35US12 35 W Single Phase 12V 3A
LCW35 LCW35US15 35 W Single Phase 15V 2.4A
LCW35 LCW35US24 35 W Single Phase 24V 1.5A

Specifications


Dimensions

3.898 x 3.228 x 1.181 in (99.0 x 82.0 x 30.0mm)

Input Voltage

85 to 305VAC, 115/230 typical or 120 to 430VDC. See datasheet.

No Load Input Power

0.3W

Efficiency

86% typical

Operating Temperature

-30°C to +70°C. See datasheet

Isolation

Input to Output 4000VAC, Input to Ground 2000VAC, Output to Ground 1250VAC. Class I construction

European Safety Approvals

EN62368-1, EN60335, EN61558

US Safety Approvals

UL62368-1

Other Safety Approvals

Meets all applicable directives and legislation

EMC

EN55032 Class B conducted & radiated
