AC-DC Power Supplies
VCB60 Series

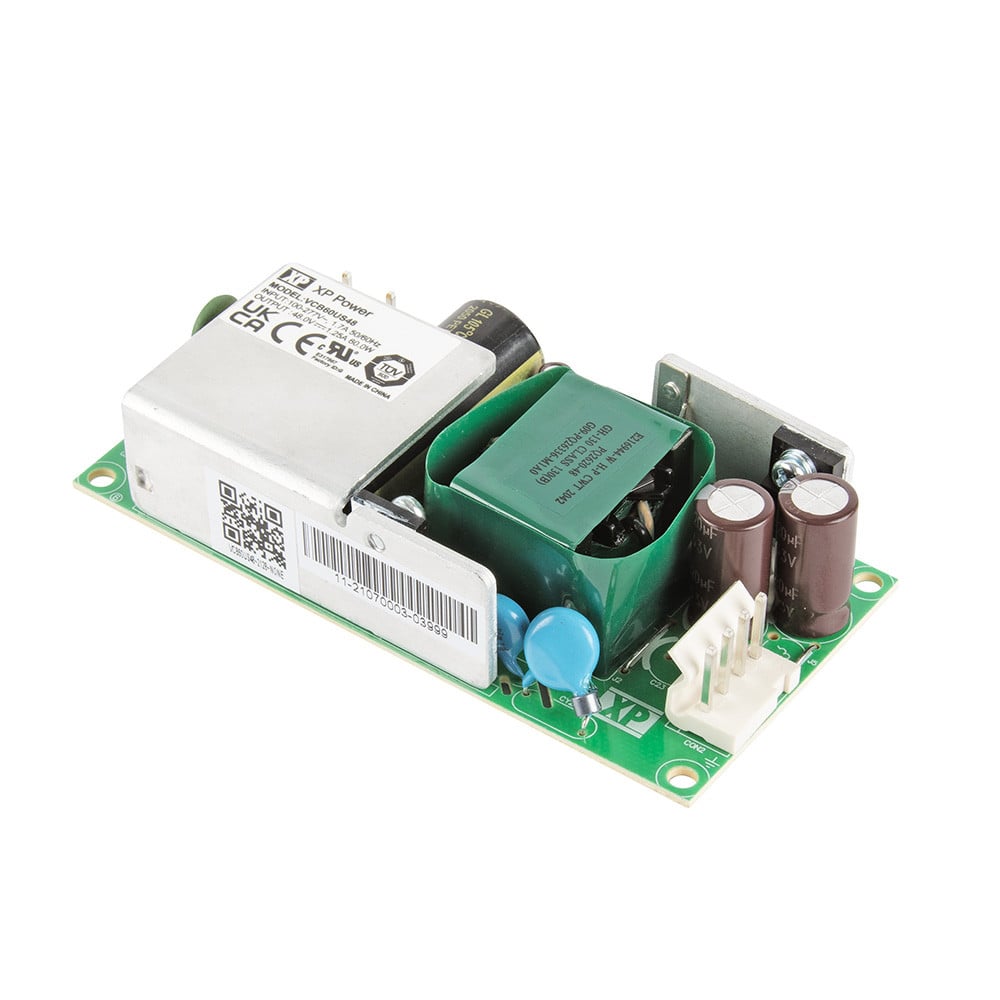

Low cost 4” x 2” open frame 60W AC-DC power supplies
The VCB60 is a series of open frame AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications.
With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, this series benefit system designers with easy integration into a wide range of applications.
A wide input range of 90-305VAC and approval to overvoltage category III (OVC III) eases installation in building wiring systems.
datasheet Contact usFeatures
- 60W convection cooled
- 4” x 2” footprint, 1.01” profile
- Regulated single outputs 5V to 54VDC
- Wide input range of 90 to 305VAC
- Up to 277VAC nominal input voltage
- Overvoltage category III
- ITE, household & similar appliance approvals
- Class B conducted and radiated emissions
- Immunity to the latest EN55035 standard
- Low no-load power consumption <0.3W
- Typically 90% efficiency
- -10°C to +60°C operating ambient
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VCB60US05 | 40 W | Single Phase | 5V | 8A |
|
|
|
|
|
VCB60US12 | 60 W | Single Phase | 12V | 5A |
|
|
|
|
|
VCB60US15 | 60 W | Single Phase | 15V | 4A |
|
|
|
|
|
VCB60US19 | 60 W | Single Phase | 19V | 3.16A |
|
|
|
|
|
VCB60US24 | 60 W | Single Phase | 24V | 2.5A |
|
|
|
|
|
VCB60US30 | 60 W | Single Phase | 30V | 2A |
|
|
|
|
|
VCB60US48 | 60 W | Single Phase | 48V | 1.25A |
|
|
|
|
|
VCB60US54 | 60 W | Single Phase | 54V | 1.11A |
|
|
|
Specifications
Dimensions
4.00 x 2.00 x 1.01 in (101.6 x 50.8 x 25.6 mm)
Input Voltage
90 to 305VAC
No Load Input Power
<0.3W
Harmonic Currents
EN61000-3-2 Class A
Efficiency
85% typical
Operating Temperature
-10 °C to +60 °C. Derate linearly from 100% load at +50°C to 50% load at +60°C
Isolation
Input to output: 3000 VAC, Input to ground: 1500 VAC , Output to ground: 500VDC
Worldwide Safety Approvals
IEC60950-1, IEC62368-1 & IEC60335-1
European Safety Approvals
EN62368-1, EN61558-1 & -2-16
US Safety Approvals
UL62368-1
Other Safety Approvals
CE & UKCA meets all applicable directives and legislation
EMC
EN55032/EN55014-1 Class B conducted & radiated
