FCB100 Series

AC-DC Power Supplies

FCB100 Series

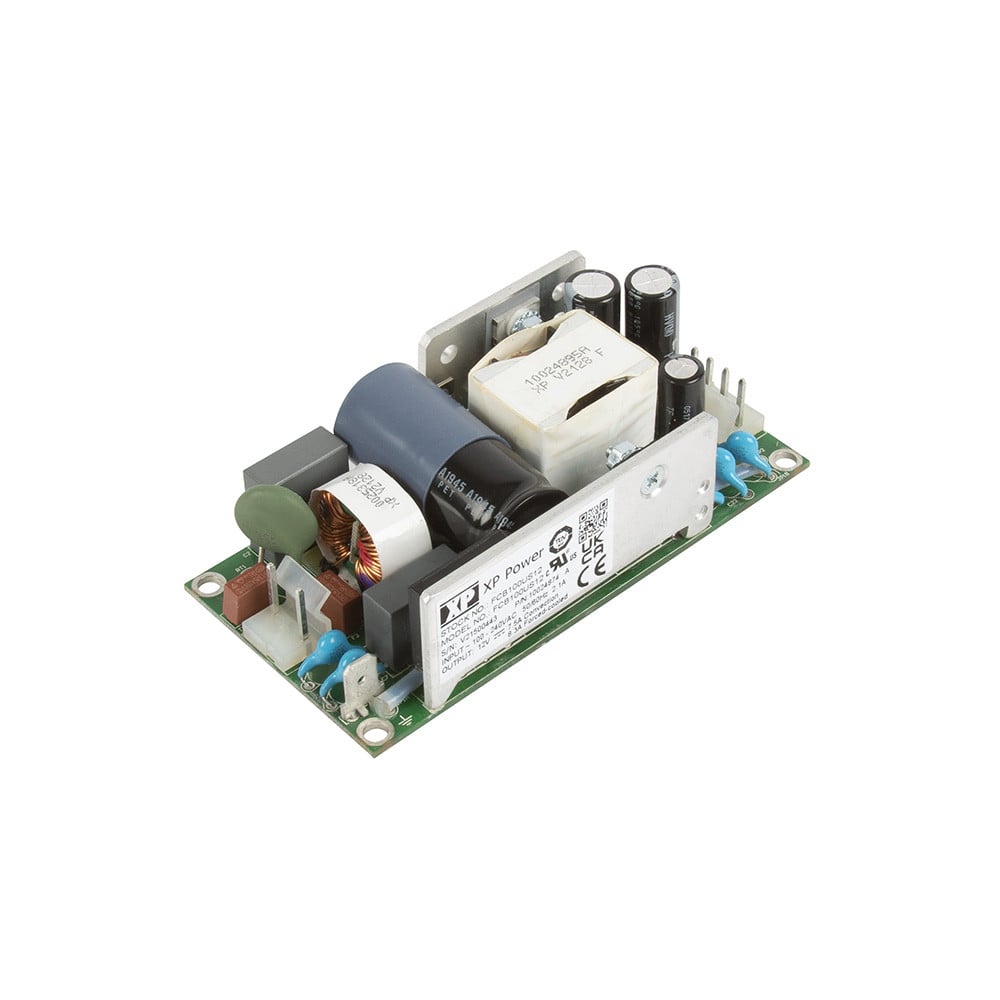

100W fan cooled 80W convection cooled 4”x 2” open frame AC-DC power supply with medical (BF), ITE & household approvals

The FCB100 is a series of open frame AC-DC power supplies designed for medical devices (including BF), industrial electronics, ITE & household applications.

The FCB100 is compliant with class B conducted & radiated emissions, can be used in both class I & class II installations and the wide 80VAC to 264VAC operating input range makes it ideal for both home healthcare applications and in hospital use.

With both convection and fan cooled ratings, extremely low emissions, and safety & EMC certification for global use, the FCB100 benefits system designers with easy integration into a wide range of applications across multiple end markets.

datasheet Contact us

Features

  • 100W fan cooled 80W convection cooled
  • 4” x 2” footprint, 1.25” profile
  • Regulated single outputs from 12 to 48VDC
  • Input range 80 to 264VAC
  • Class I & class II applications
  • Medical (BF), ITE & household approvals
  • Class B conducted & radiated emissions
  • Short circuit, overvoltage & overload protection
  • <0.3W no load input power
  • -25°C to +70°C operating temperature
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
FCB100 FCB100US12 100 W Single Phase 12V 8.3A
FCB100 FCB100US15 100 W Single Phase 15V 6.7A
FCB100 FCB100US19 100 W Single Phase 19V 5.3A
FCB100 FCB100US24 100 W Single Phase 24V 4.2A
FCB100 FCB100US36 100 W Single Phase 36V 2.8A
FCB100 FCB100US48 100 W Single Phase 48V 2.1A

Specifications


Dimensions

4.00 x 2.00 x 1.25 in (101.6 x 50.8 x 31.8 mm)

Input Voltage

80 to 264VAC. See datasheet

No Load Input Power

<0.3W

Harmonic Currents

EN61000-3-2 Class A

Efficiency

87% typical. Model dependent.

Operating Temperature

-25°C to +70°C. See datasheet

Isolation

Input to Output 4000VAC, Input to Ground 1500VAC, Output to Ground 1500VAC

Worldwide Safety Approvals

IEC60950-1, IEC62368-1, IEC60335, IEC60601-1

European Safety Approvals

EN62368-1, EN60601-1

US Safety Approvals

UL62368-1, ANSI/AAMI ES60601-1

Other Safety Approvals

CE & UKCA meets all applicable directives and legislation

EMC

EN55032/EN55011 Class B conducted & radiated
