AC-DC Power Supplies
ECH450 Series

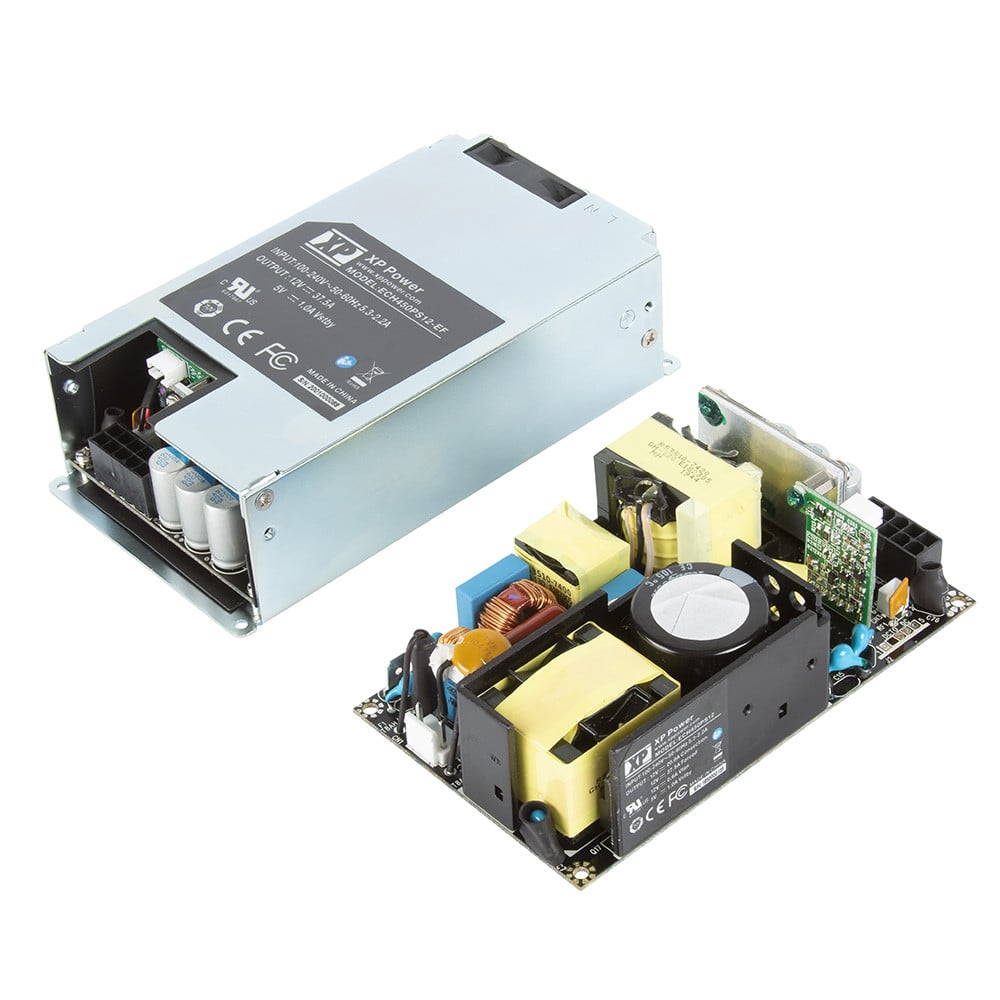

5" X 3" open frame & enclosed 450W AC-DC power supplies for ITE & medical (BF) applications
Designed to minimize size and maximize efficiency to facilitate integration into ever more compact equipment, the chassis mount ECH450 is the ideal choice. The ECH450 range has medical approvals with 2 x MOPP (input to output), 1 x MOPP (input to ground) & 1 x MOPP (output to ground) making it suitable for BF applications, they also meet IEC/UL/EN62368-1 safety approval for information technology equipment.
The full 450W is available when force air cooled with 250W available in convection cooled applications. The standard model is open frame, options are: supplied with a vented cover (model numbers with a -C suffix); encased with an end fan fitted (model numbers with a -TF suffix) or encased with a top fan fitted (model numbers with a -EF suffix).
datasheet Contact usFeatures
- 450W fan cooled 250W convection cooled
- 5.0” x 3.0” footprint, 1.42" profile
- Regulated single outputs 12V to 54VDC
- Input range 90 to 264VAC
- Medical (BF) and ITE approvals
- 2 x MOPP
- High efficiency, up to 94%
- 5V 1A standby
- 12V 0.6A fan output
- Remote On/Off
- -20°C to +70°C operation
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
ECH450PS12 | 450 W | Single Phase | 12V | 20.8A |
|
|
|
|
|
ECH450PS15 | 450 W | Single Phase | 15V | 16.6A |
|
|
|
|
|
ECH450PS19 | 450 W | Single Phase | 19V | 13A |
|
|
|
|
|
ECH450PS24 | 450 W | Single Phase | 24V | 10.4A |
|
|
|
|
|
ECH450PS36 | 450 W | Single Phase | 36V | 6.9A |
|
|
|
|
|
ECH450PS48 | 450 W | Single Phase | 48V | 5.2A |
|
|
|
|
|
ECH450PS54 | 450 W | Single Phase | 54V | 4.63A |
|
|
|
|
|
ECH450PS12-EF | 450 W | Single Phase | 12V | 20.8A |
|
|
|
|
|
ECH450PS15-EF | 450 W | Single Phase | 15V | 16.6A |
|
|
|
|
|
ECH450PS19-EF | 450 W | Single Phase | 19V | 13A |
|
|
|
|
|
ECH450PS24-EF | 450 W | Single Phase | 24V | 10.4A |
|
|
|
|
|
ECH450PS36-EF | 450 W | Single Phase | 36V | 6.9A |
|
|
|
|
|
ECH450PS48-EF | 450 W | Single Phase | 48V | 5.2A |
|
|
|
|
|
ECH450PS54-EF | 450 W | Single Phase | 54V | 4.63A |
|
|
|
|
|
ECH450PS12-C | 450 W | Single Phase | 12V | 20.8A |
|
|
|
|
|
ECH450PS15-C | 450 W | Single Phase | 15V | 16.6A |
|
|
|
|
|
ECH450PS19-C | 450 W | Single Phase | 19V | 13A |
|
|
|
|
|
ECH450PS24-C | 450 W | Single Phase | 24V | 10.4A |
|
|
|
|
|
ECH450PS36-C | 450 W | Single Phase | 36V | 6.9A |
|
|
|
|
|
ECH450PS48-C | 450 W | Single Phase | 48V | 5.2A |
|
|
|
|
|
ECH450PS54-C | 450 W | Single Phase | 54V | 4.63A |
|
|
|
|
|
ECH450PS12-TF | 450 W | Single Phase | 12V | 20.8A |
|
|
|
|
|
ECH450PS15-TF | 450 W | Single Phase | 15V | 16.6A |
|
|
|
|
|
ECH450PS19-TF | 450 W | Single Phase | 19V | 13A |
|
|
|
|
|
ECH450PS24-TF | 450 W | Single Phase | 24V | 10.4A |
|
|
|
|
|
ECH450PS36-TF | 450 W | Single Phase | 36V | 6.9A |
|
|
|
|
|
ECH450PS48-TF | 450 W | Single Phase | 48V | 5.2A |
|
|
|
|
|
ECH450PS54-TF | 450 W | Single Phase | 54V | 4.63A |
|
|
|
Specifications
Dimensions
3.00 x 5.00 x 1.42” (76.2 x 127.0 x 36.1 mm)
Input Voltage
12-54 VDC
No Load Input Power
0.21W
Harmonic Currents
EN61000-3-2, Class A, Class C for load >175 W
Efficiency
93/94% (230 VAC Full load (see fig. 1 to 4)
Operating Temperature
-20 to +70°C (See derating curve, figure 5)
Isolation
Input to Output: 4000VAC (2x MOPP), Input to Ground: 1500VAC (1x MOPP), Output to Ground: 1500VAC (1x MOPP)
Worldwide Safety Approvals
IEC62368, IEC60601-1 Ed 3.1 Including Risk Management
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
UL62368-1, ANSI/AAMI ES60601-1 & CSA C22.2 No.60601-1:08
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation.
