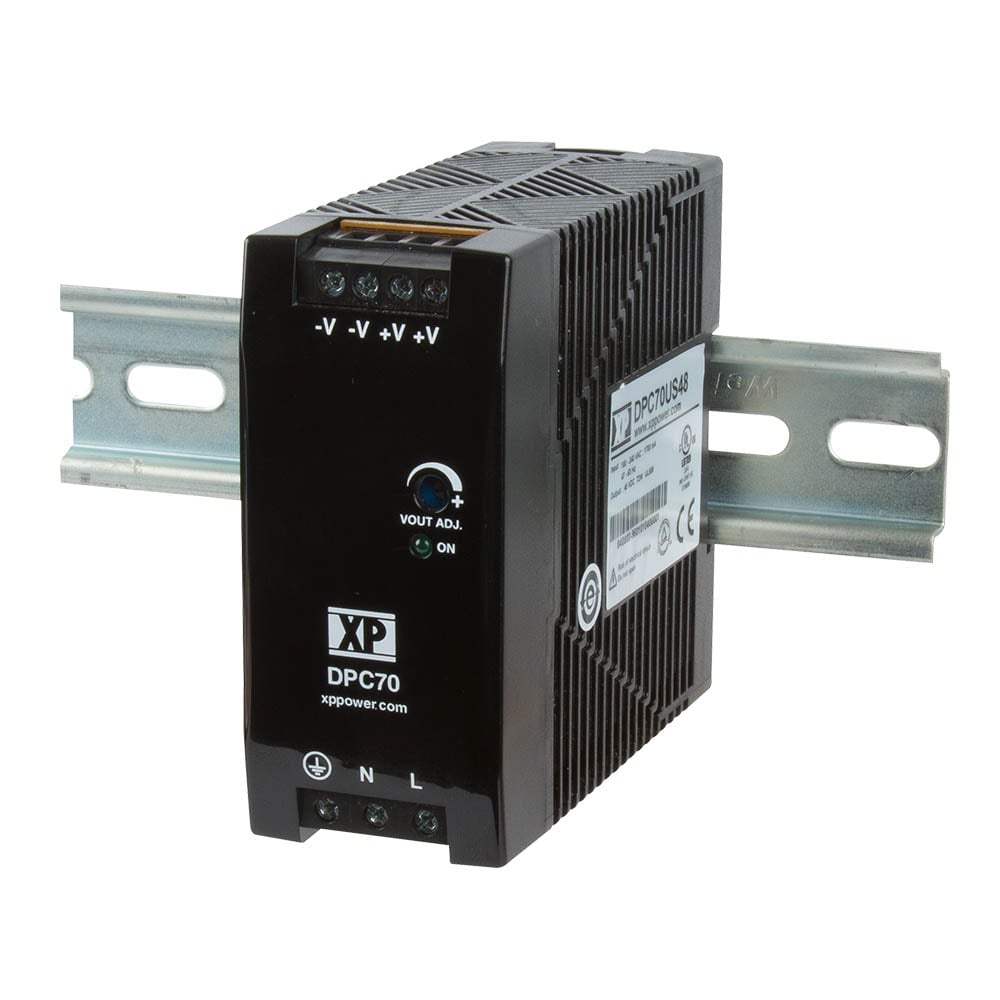

DPC70
- Ultra slim design
- High efficiency
- 12V, 24V & 48V DC nominal outputs
- Wide output adjustment range
- <0.3W no load input power
- -25°C to +70°C operating temperature
- 3 year warranty
DPC50
Ultra slim design
High efficiency
5V, 12V & 24V DC nominal outputs
Wide output adjustment range
<0.3W no load input power
-25°C to +70°C operating temperature
3 year warranty
DPC30
- Ultra slim design
- High efficiency
- 5V, 12V & 24V DC nominal outputs
- Wide output adjustment range
- <0.3W no load input power
- -25°C to +70°C operating temperature
- 3 year warranty
DDC40
- Regulated single outputs from 5 to 24VDC
- 3:1 DC input range 10 to 32VDC
- 1.5kVDC isolation
- Class B conducted & radiated emissions
- Remote On/Off
- DC On & DC Low LED indicators
- -40°C to +70°C operating temperature
- Full load to +50°C
- 3 year warranty
JMR10
- Regulated single & dual outputs from 5 to 30VDC
- 4:1 input range
- Single outputs 5V, 12V & 15VDC
- Dual outputs ±5V, ±12V & ±15VDC
- 10% trim on single output versions
- Compact DIP24 PCB mount package
- Low no-load power
- IEC60601-1 medical safety agency approvals
- 5.0kVAC reinforced isolation
- 2 x MOPP at 250VAC
- 2μA patient leakage current
- Remote On/Off with 2.5mA idle current
- Short circuit, overload & overvoltage protection
- -40°C to +100°C operating temperature
- 3 year warranty
DDC30
- 4:1 DC input range 10V to 36VDC
- 5V to 24VDC output
- Low profile design
- Remote On/Off
- 1.5kVDC isolation
- Class B conducted & radiated emissions
- High efficiency – up to 85%
- Ambient operation from -40°C to +70°C
- 3 year warranty
JMR20
Regulated single & dual outputs from 5 to 30VDC
4:1 input range
Single outputs 5V, 12V & 15VDC
Dual outputs ±5V, ±12V & ±15VDC
40.6 x 25.4mm (1.6” x 1”) PCB mount package
Low no-load power 10% trim on single output versions
IEC60601-1 medical safety agency approvals
5.0kVAC reinforced isolation
2 x MOPP at 250VAC
2μA patient leakage current
Remote On/Off with 2.5mA idle current
Short circuit, overload & overvoltage protection
-40°C to +100°C operating temperature
3 year warranty
JHM30
Regulated single & dual outputs from 5 to 30VDC
2:1 input range
Single outputs 5.0 to 15VDC
Dual outputs ±5.0 & ±15VDC
Single outputs trimmable ±10%
50.8 x 25.4mm (2” x 1”) PCB mount package
IEC60601-1 medical safety agency approvals
4kVAC reinforced isolation
2 x MOPP @250VAC working voltage
2μA patient leakage current
EN55011 class A with no external components
Short circuit, overload & overvoltage protection
-40°C to +80°C operating temperature
3 year warranty
RDF200
- Single voltage outputs from 12V to 48VDC
- Wide output voltage trim and remote sense
- 12:1 ultra-wide input range 14V to 160VDC
- Industry standard half brick format
- High efficiency, up to 90%
- 3kVAC reinforced input to output isolation
- ITE safety approvals and EN50155 compliance
- Remote On/Off with low 15mA stand-by current
- Overvoltage, overload, and short circuit protection
- -40°C to +100°C operating temperature
- 3 year warranty
RDF150
- Single voltage outputs from 5V to 48VDC
- Wide output voltage trim and remote sense
- 12:1 ultra-wide input range 14V to 160VDC
- Industry standard half brick format
- High efficiency, up to 91%
- 3kVAC reinforced input to output isolation
- ITE safety approvals and EN50155 compliance
- Remote On/Off with low 15mA stand-by current
- Overvoltage, overload, and short circuit protection
- -40°C to +100°C operating temperature
- 3 year warranty
