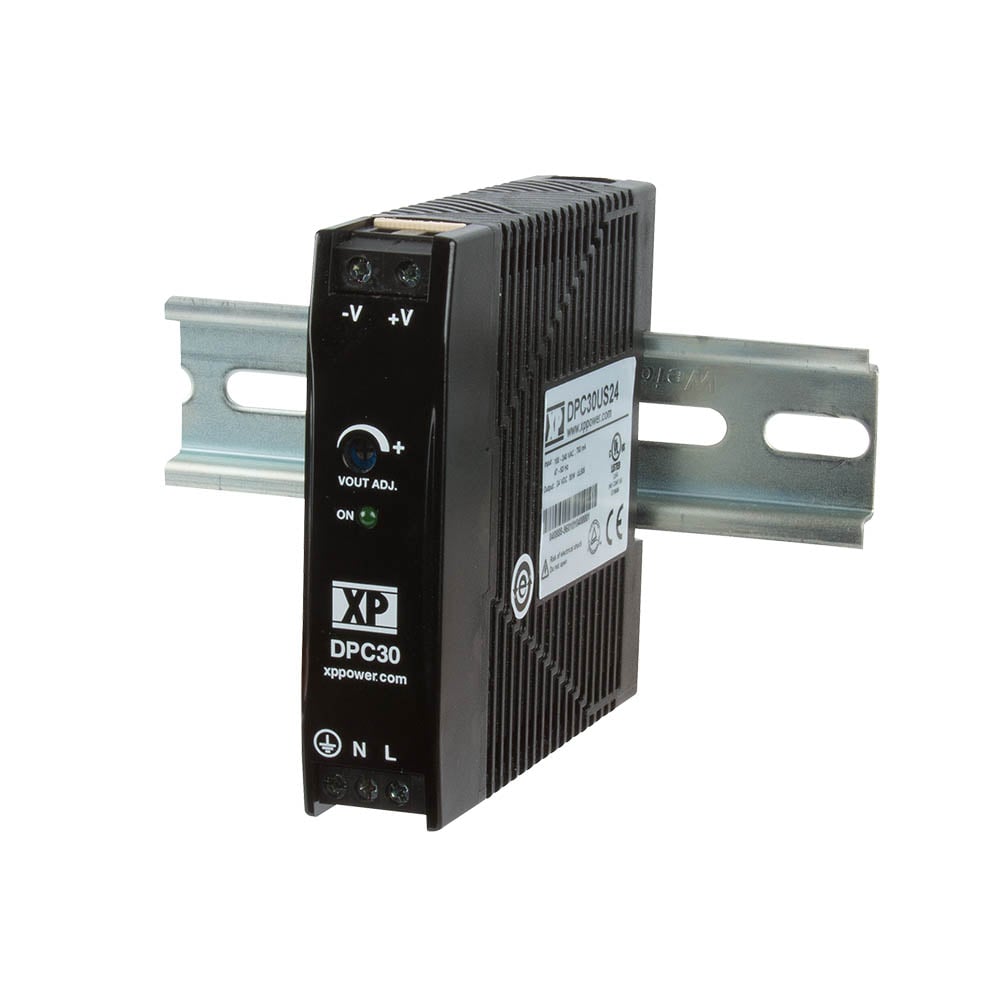

DPC30 Series

AC-DC Power Supplies

DPC30 Series

  • Ultra Slim Design
  • Ambient Operation from -25 °C to +70 °C
  • -40 °C to +85 °C Operating Temperature
  • High Efficiency
  • Wide Output Adjustment Range
  • 5 V to 24 V Nominal Outputs
  • <0.3 W No Load Input Power
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DPC30 DPC30US05 30 W Single Phase 5V 4A
DPC30 DPC30US12 30 W Single Phase 12V 2A
DPC30 DPC30US24 30 W Single Phase 24V 1.25A

Specifications


Dimensions

DPC30: 3.6 x 0.89 x 3.94‚ (90.0 x 22.5 x 100.0 mm)

Input Voltage

85 to 264 VAC (see datasheet)

No Load Input Power

0.3 W

Harmonic Currents

EN61000-3-2, Class A

Efficiency

85% (see datasheet)

Operating Temperature

-25 °C to +70 °C (see datasheet)

Isolation

Input to Output: 3000 VAC Input to Ground: 1500 VAC Output to Ground: 500 VAC

European Safety Approvals

EN60950-1 A12

US Safety Approvals

UL60950-1, UL508

EMC

Conducted: EN55032, Class B Radiated: EN55032, Class B
