DDC30 Series

DC-DC Converters

DDC30 Series

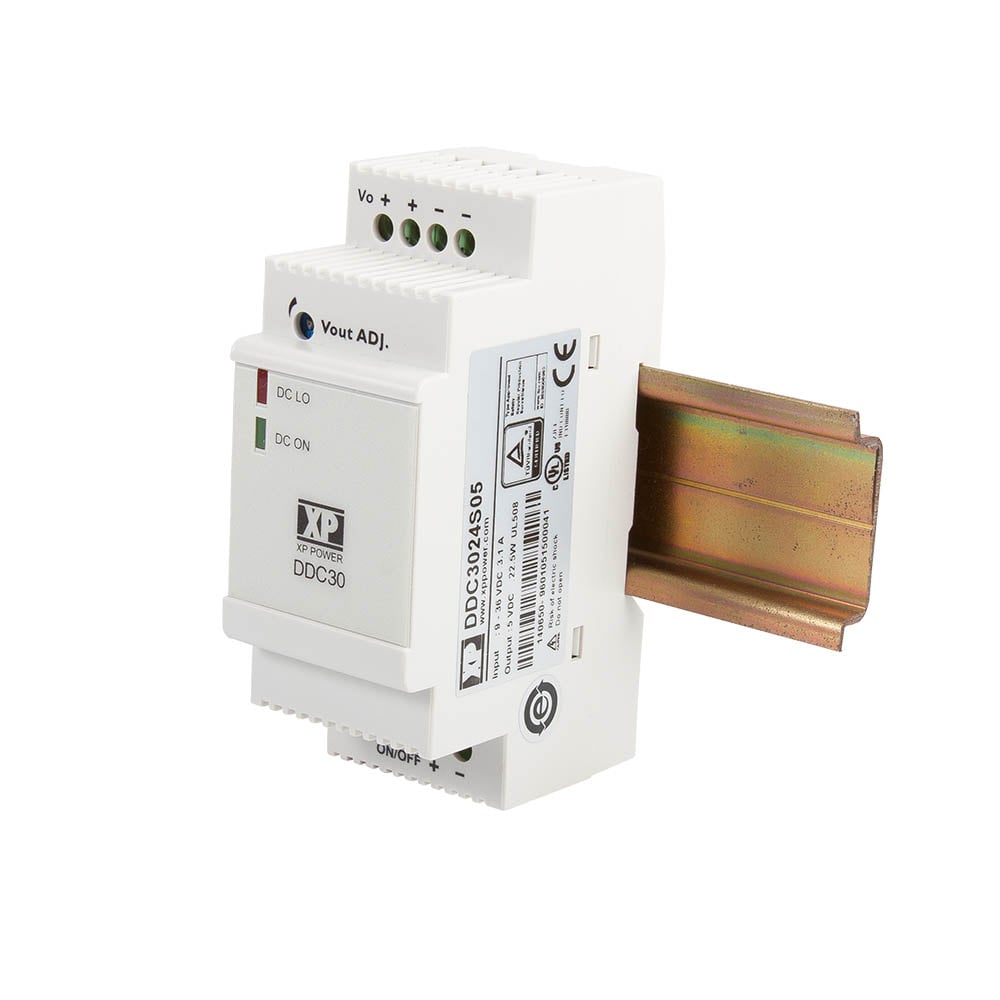

30W 4:1 DC-DC converter in a low-profile DIN rail mount housing

The DDC30 series is a range DC-DC converters housed in a low-profile DIN rail case of a similar profile to that of circuit breakers, allowing them to fit in consumer unit style housings, or in standard control panel installations.

Designed to offer additional voltages in DIN rail power systems, provide isolated outputs & noise immunity or support battery powered or battery backed applications.

With a 4:1 wide input range the DDC30 series converters can be supplied by both a 12V or 24V nominal input and offer output voltages between 5VDC and 24VDC.

Typical applications are: Machine control; Process control; Factory automation; Building heating/aircon monitoring, control & security systems; Escalator/travelator/elevator/lift control.



datasheet Contact us

Features

  • 4:1 DC Input Range 10V to 36VDC
  • 5V to 24VDC Output
  • Low Profile Design
  • Remote On/Off
  • 1.5kVDC Isolation
  • Class B Conducted and Radiated Emissions
  • High Efficiency – Up to 85%
  • Ambient Operation from -40°C to +70°C
  • 3 Year Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DDC30 DDC3024S05 30 W 10 to 36 VDC 5V 4.5A
DDC30 DDC3024S09 30 W 10 to 36 VDC 9V 2.8A
DDC30 DDC3024S12 30 W 10 to 36 VDC 12V 2.5A
DDC30 DDC3024S15 30 W 10 to 36 VDC 15V 2A
DDC30 DDC3024S24 30 W 10 to 36 VDC 24V 1.25A

Specifications


Dimensions

DDC30: 1.38 x 3.58 x 2.22 in (35.0 x 91.0 x 56.5 mm)

Input Voltage

9.0-36.0 VDC

Efficiency

83% typical

Operating Temperature

-40 °C to +70 °C, see datasheet

Isolation

1500 VDC minimum variable

Worldwide Safety Approvals

IEC60950-1 +A1:2009

European Safety Approvals

EN62368-1:2014/A11:2017

US Safety Approvals

UL508, UL 62368-1:2014

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55022, class B conducted and radiated
