RDE20
- Regulated single & dual outputs
- 4:1 input range
- Covers 24/48 & 72/110VDC for railway applications
- Single outputs 3.3 to 15VDC
- Dual outputs ±5.0 to ±15VDC
- Output trim ±10%
- 25.4 x 25.4mm (1" x 1") PCB mount package
- 3.0kVAC reinforced isolation
- Remote On/Off
- Complies with EN50155 for railway applications
- Meets EMC standard EN50121-3-2
- No external filter required
- -40°C to +100°C operating temperature
- Full power to +55°C
- 3 year warranty
RCQ75
- Regulated single output
- Baseplate-cooled ¼ brick package
- Input ranges 43V to 101V & 66V to 160VDC
- 72V & 110VDC nominal inputs for railway applications
- 3kVAC isolation
- Remote On/Off & remote sense
- Complies with EN50155 and IEC60571
- Meets EMC standard EN50121-3-2
- Optional heatsink
- Operating temperature -40°C to +105°C
- 3 year warranty
RCQ50
- Regulated single outputs 5V to 24VDC
- Baseplate cooled ¼ brick package
- Input ranges 43V to 101V & 66V to 160VDC
- 72V & 110VDC nominal inputs for railway applications
- 3kVAC isolation
- Remote On/Off & remote sense
- Complies with EN50155 and IEC60571
- Meets EMC standard EN50121-3-2
- Optional heatsink
- Operating temperature -40°C to +105°C
- 3 year warranty
MTF50
- 50W baseplate cooled
- Active surge protection & EMC filter
- Output voltage tracks input voltage & clamps >50VDC
- Input voltage range 10V to 40VDC
- Remote inhibit
- MIL-STD-1275A MIL-STD-461 immunity
- MIL-STD-704A DEF-STAN-61-5 Part 6 Issue 6 immunity
- MIL-STD-461 & DEF-STAN-59-411 EMC emissions
- MIL-STD-810G shock & vibration
- -55°C to +100°C operating temperature (baseplate)
- 3 Year Warranty

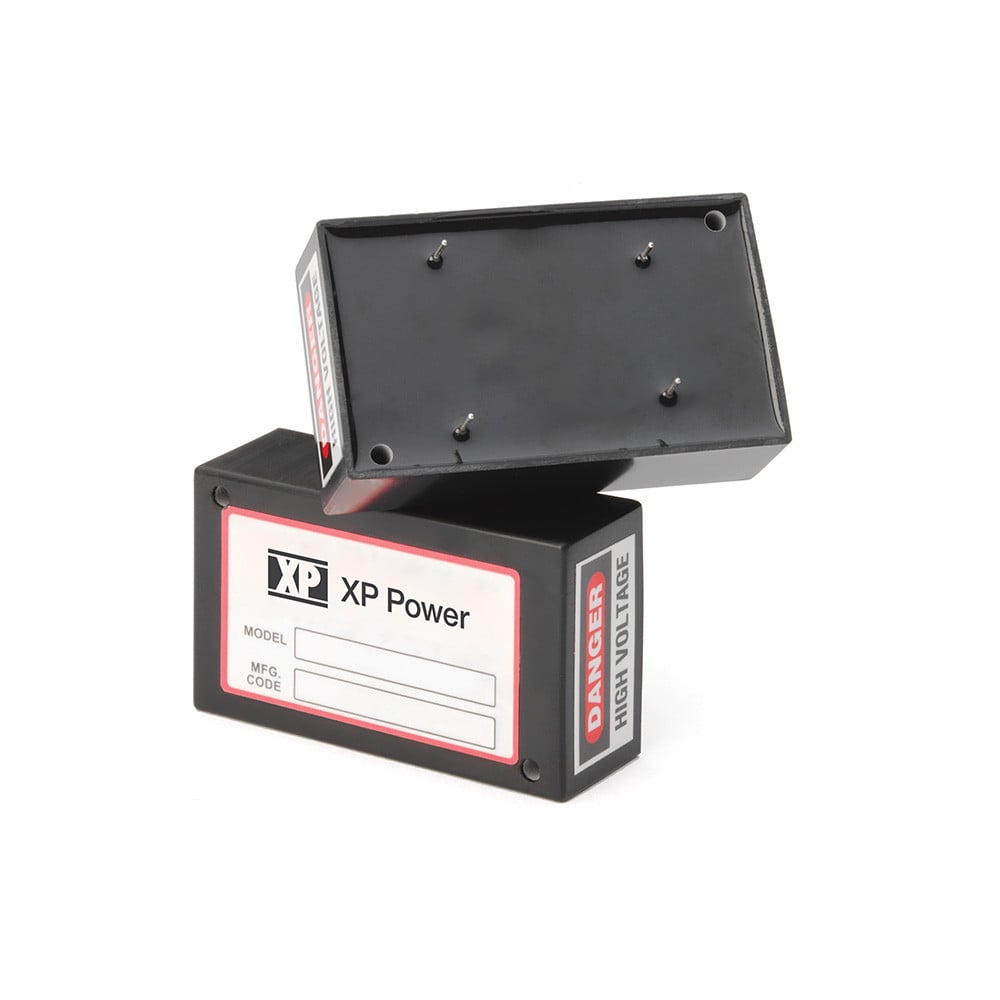

L
- Low ripple
- Proven reliability
- Extensive filtering and shielding
- High performance
- RoHS compliant
IMB01
- Unregulated single output
- ±10% input range
- Single outputs 5.0 to 15VDC
- SIP7 package
- World wide medical approvals
- 4kVAC reinforced isolation
- 2 x MOPP at 300VAC
- 2μA patient leakage current
- -40°C to +105°C operation
- Full load at +85°C ambient
- 3 year warranty
HPU1K5
- 1.5kW high line 1.2kW low line fan cooled
- Single phase input 85 to 264VAC
- Regulated single outputs 12V, 24V & 48VDC
- Medical safety approvals (-M versions)
- Variable fan speed to reduce audible noise
- AC OK, DC OK & inhibit
- Fault & overtemperature signals
- SEMI F47 compliant
- 5VDC standby
- -20°C to +70°C operation
- 3 year warranty
GFR1K5
- 1.5kW high line 1.2kW low line fan cooled
- 299.7 x 101.6 footprint, 143.3mm profile
- Regulated single outputs 12V to 56VDC
- Input range 85 to 264VAC
- 1U blind mate, hotswap, redundancy
- 1U 19" subrack accepts up to 4 x GFR's (6kW)
- 56VDC Power over Ethernet compatible model
- AC OK, DC OK, inhibit, enable, 5VDC standby
- Current share & I²C interface
- 3 year warranty
FIHM
- Chassis mount filter
- Dual stage
- Compact design
- Medical version
- Voltage range 0 to 250VAC
- Current rating 1, 3, 6, 10, 15 & 20A
- 6.3 x 0.8mm Faston terminals
- Bleed resistor
- Shielded metal body
- Wide operating temperature range
- 3 year warranty
FIHA
- Chassis mount filter
- Dual stage
- Compact design
- ITE Version
- Voltage range 0 to 250VAC
- Current rating 1, 3, 6, 10, 15 & 20A
- 6.3 x 0.8mm Faston terminals
- Bleed resistor
- Shielded metal body
- Wide operating temperature range
- 3 year warranty
