No longer manufactured
Unfortunately, this series is no longer available. Please see related products below or use the contact us button to reach out to our team.

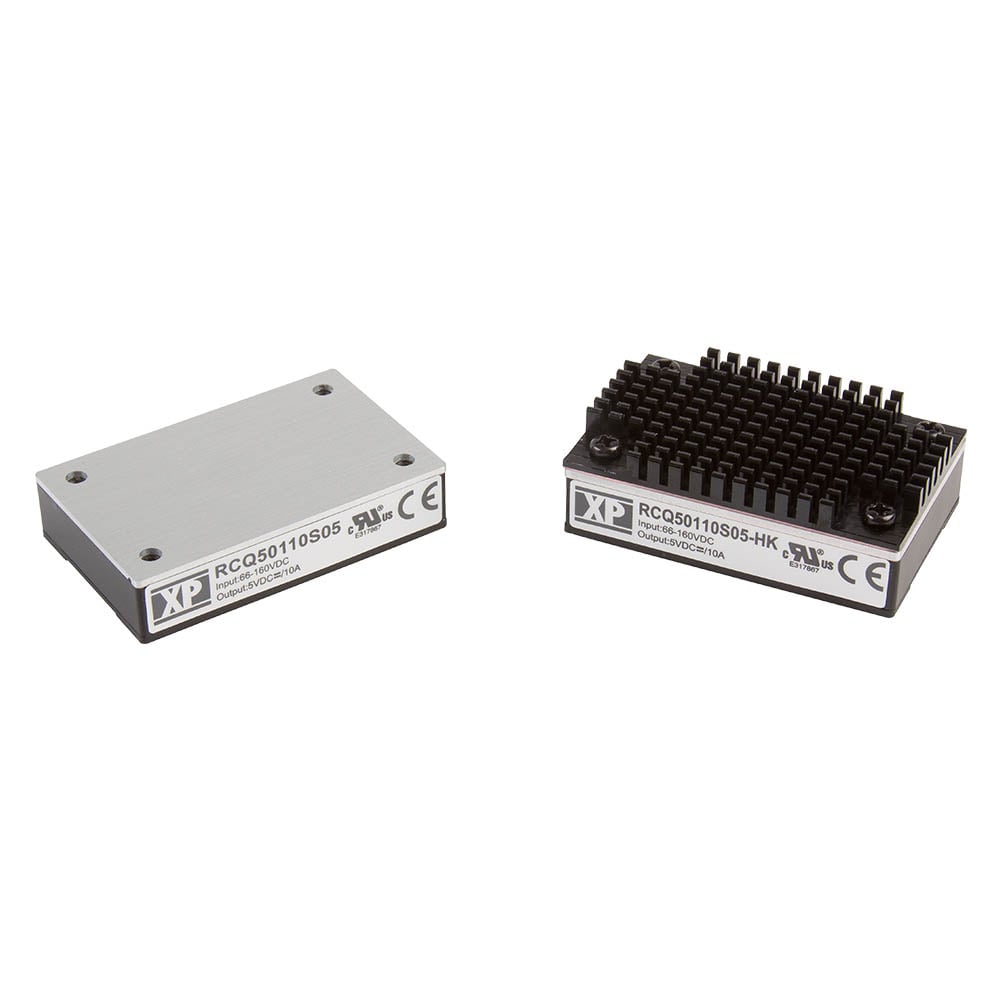

RCQ50 Series
50W quarter brick DC-DC converters for railway equipment
Designed for railway applications, the RCQ50 series converters comply with EN50155 and meet EN50121-3-2 railway standards for electronic equipment used on traction & rolling stock. They are housed in a compact ¼ brick package.
The 50 watt RCQ50 is available in two wide input ranges: 43 to 101VDC for 72VDC nominal supplies; 66 to 160VDC for 110VDC nominal supplies.
Typically used on traction & rolling stock to power: Telemetry; Door control; System & safety monitors; Communication & infotainment systems; Video surveillance; Access & ticketing machines; Drive controls; Power controls; Information systems; Lighting; Passenger device-charging USB ports; HVAC systems; Sanitation control.
Features
- Regulated single outputs 5V to 24VDC
- Baseplate cooled ¼ brick package
- Input ranges 43V to 101V & 66V to 160VDC
- 72V & 110VDC nominal inputs for railway applications
- 3kVAC isolation
- Remote On/Off & remote sense
- Complies with EN50155 and IEC60571
- Meets EMC standard EN50121-3-2
- Optional heatsink
- Operating temperature -40°C to +105°C
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
RCQ5072S05 | 50W | 43 to 101VDC | 5V | 10A | Datasheet | Stock | RFQ |
|
|
RCQ5072S12 | 50W | 43 to 101VDC | 12V | 4.17A | Datasheet | Stock | RFQ |
|
|
RCQ5072S15 | 50W | 43 to 101VDC | 15V | 3.33A | Datasheet | Stock | RFQ |
|
|
RCQ5072S24 | 50W | 43 to 101VDC | 24V | 2.08A | Datasheet | Stock | RFQ |
|
|
RCQ50110S05 | 50W | 66 to 160VDC | 5V | 10A | Datasheet | Stock | RFQ |
|
|
RCQ50110S12 | 50W | 66 to 160VDC | 12V | 4.17A | Datasheet | Stock | RFQ |
|
|
RCQ50110S15 | 50W | 66 to 160VDC | 15V | 3.33A | Datasheet | Stock | RFQ |
|
|
RCQ50110S24 | 50W | 66 to 160VDC | 24V | 2.08A | Datasheet | Stock | RFQ |
