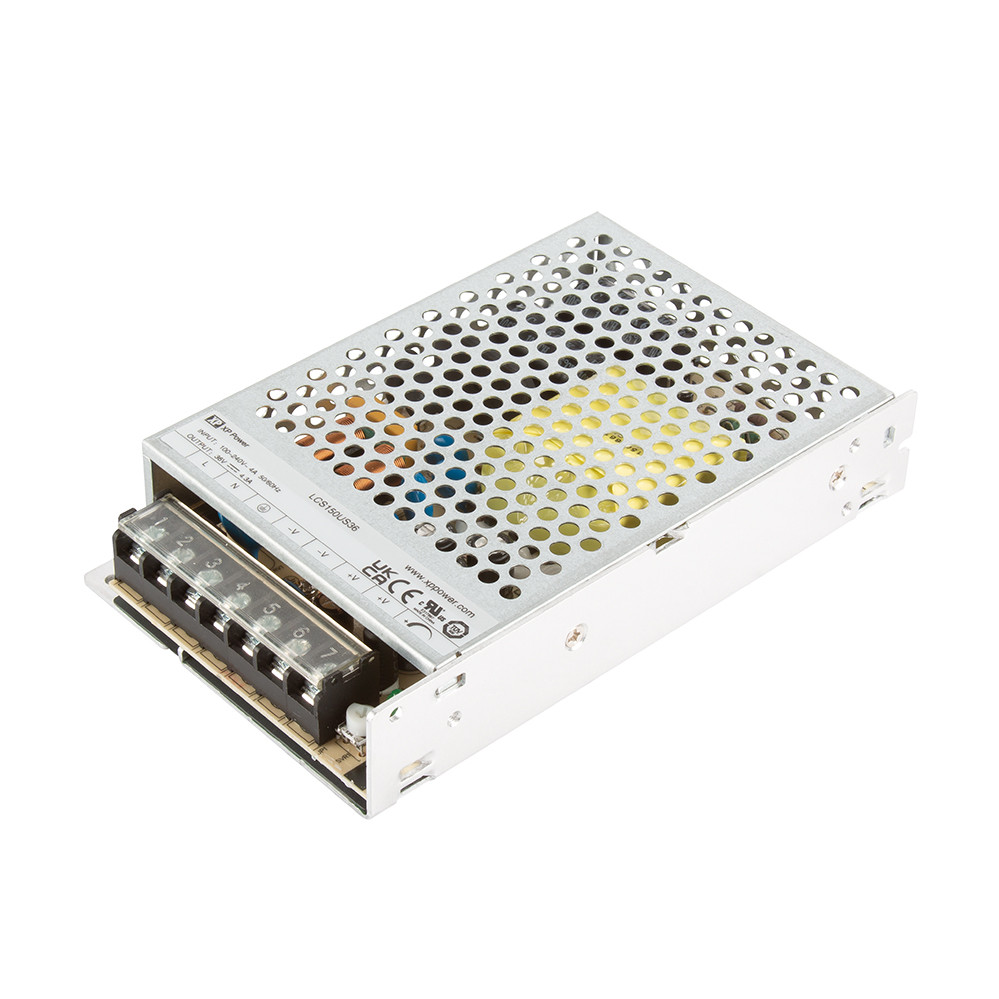

LCS150

  • 150W convection cooled

  • ITE & household approvals

  • Integrated connector cover

  • Class B conducted & radiated emissions

  • Input voltage range 85-264VAC

  • 300VAC withstand voltage for 5s

  • Output voltages from 12V to 48VDC

  • Output voltage trim ±10%

  • Efficiency to 89%

  • Short circuit, overvoltage & overload protection

  • Conformal coating option

  • Power-On LED status indicator

  • -30°C to +70°C operating temperature

  • 3 year warranty

More info

LCS100

  • 100W convection cooled

  • ITE & household approvals

  • Integrated connector terminals cover

  • Class B conducted & radiated emissions

  • Input voltage 85 to 264VAC or 120 to 370VDC

  • Input surge withstand 300VAC for 5s

  • Output voltages from 5 to 48VDC

  • Output voltage adjust ±10%

  • High efficiency, up to 90%

  • Short circuit, overvoltage & overload protection

  • Power-On LED status indicator

  • Conformal coating option

  • -30°C to +70°C operating temperature

  • 3 year warranty

More info

LCS75

  • 75W convection cooled

  • ITE & household approvals

  • Integrated connector terminals cover

  • Class B conducted & radiated emissions

  • Input voltage 85 to 264VAC or 120 to 370VDC

  • Input surge withstand 300VAC for 5s

  • Output voltages from 5 to 48VDC

  • Output voltage adjust ±10%

  • High efficiency, up to 88%

  • Short circuit, overvoltage & overload protection

  • Power-On LED status indicator

  • Conformal coating option

  • -30°C to +70°C operating temperature

  • 3-year warranty

More info

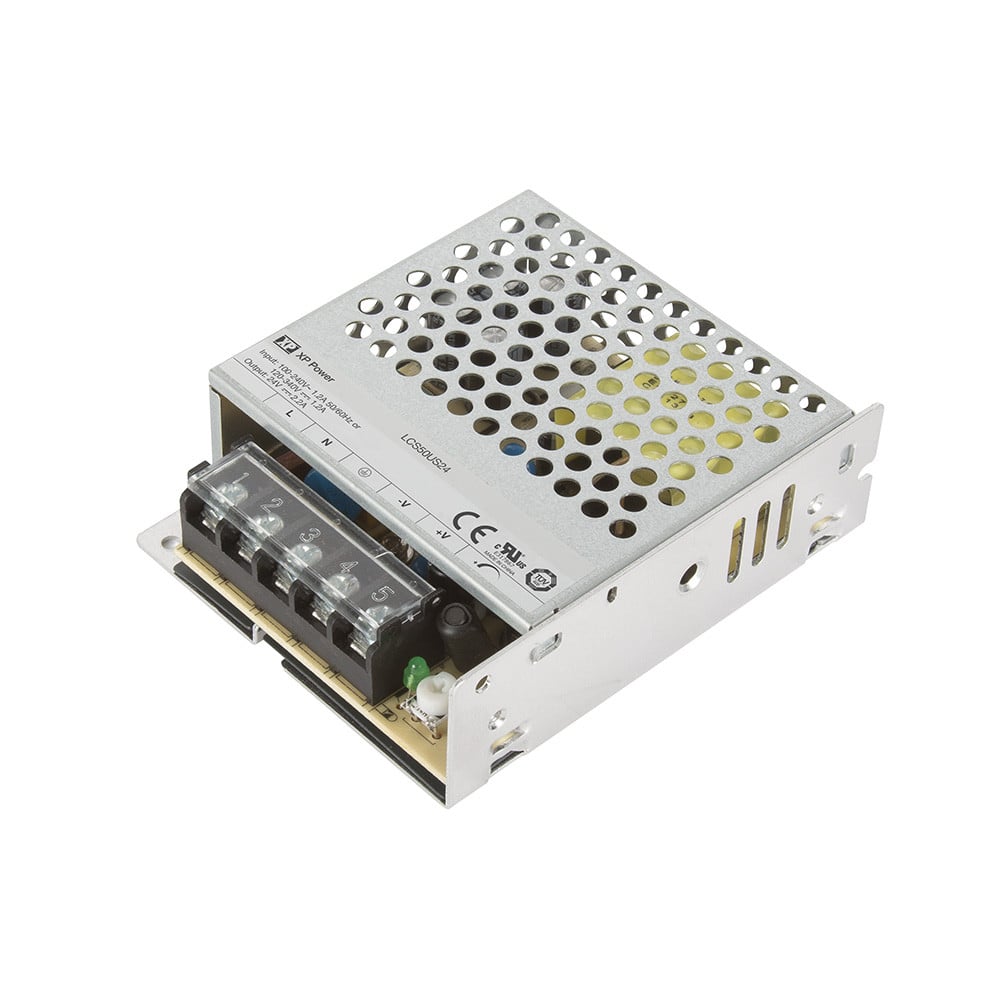

LCS50

  • 50W convection cooled

  • ITE & household approvals

  • Integrated connector terminals cover

  • Class B conducted & radiated emissions

  • Input voltage 85 to 264VAC or 120 to 370VDC

  • Input surge withstand 300VAC for 5s

  • Output voltages from 5 to 48VDC

  • Output voltage adjust ±10%

  • High efficiency, up to 88%

  • Short circuit, overvoltage & overload protection

  • Power-On LED status indicator

  • Conformal coating option

  • -30°C to +70°C operating temperature

  • 3-year warranty

More info

LCS35

  • 35W convection cooled

  • ITE & household approvals

  • Integrated connector terminals cover

  • Class B conducted & radiated emissions

  • Input voltage 85 to 264VAC or 120 to 370VDC

  • Input surge withstand 300VAC for 5s

  • Output voltages from 5 to 24VDC

  • Output voltage adjust ±10%

  • High efficiency, up to 88%

  • Short circuit, overvoltage & overload protection

  • Power-On LED status indicator

  • Conformal coating option

  • -30°C to +70°C operating temperature

  • 3-year warranty

More info
