LCS75 Series

AC-DC Power Supplies

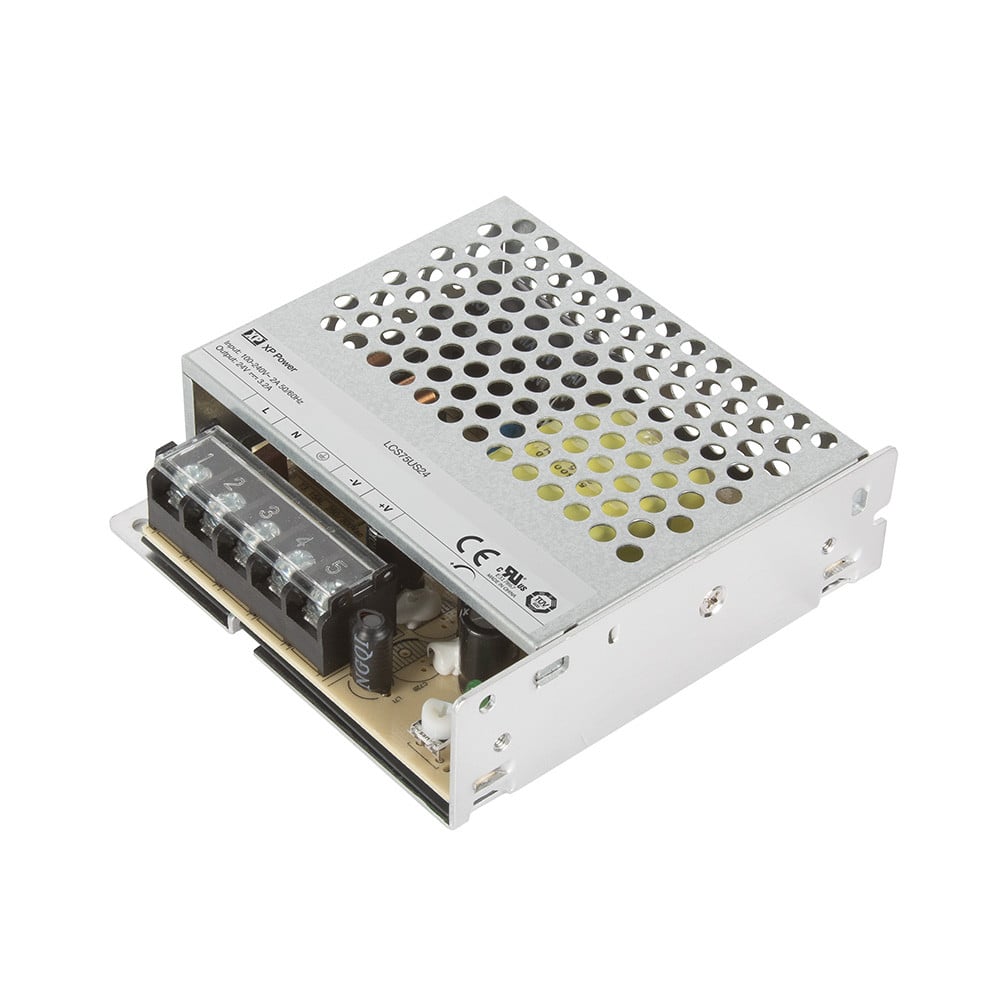

LCS75 Series

Low cost enclosed 75W AC-DC power supplies for technology and industrial electronics applications

The LCS75 series of regulated output convection cooled 75W AC-DC power supplies are designed to provide a cost effective solution for industrial electronics, technology and household applications. Features include output voltage adjustment, a power ‘ON’ LED, low stand-by power consumption, output short circuit protection, over current and over voltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications.

datasheet Contact us

Features

  • Low cost
  • 75W convection cooled
  • Industrial & ITE approvals
  • Integrated connector terminals cover
  • Class B conducted & radiated emissions
  • Input voltage 85 to 264VAC or 120 to 370VDC
  • Input surge withstand 300VAC for 5s
  • Output voltages from 5 to 48VDC
  • Output voltage adjust ±10%
  • High efficiency, up to 88%
  • Short circuit, overvoltage & overload protection
  • Power ‘ON’ LED indicator
  • Conformal coating option
  • -30°C to +70°C operating temperature
  • 3-year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
LCS75 LCS75US05 75 W Single Phase 5V 14A
LCS75 LCS75US12 75 W Single Phase 12V 6A
LCS75 LCS75US15 75 W Single Phase 15V 5A
LCS75 LCS75US24 75 W Single Phase 24V 3.2A
LCS75 LCS75US36 75 W Single Phase 36V 2.1A
LCS75 LCS75US48 75 W Single Phase 48V 1.6A

Specifications


Dimensions

3.89 x 3.82 x 1.18 in (99.0 x 97.0 x 30.0 mm)

Input Voltage

85 to 264VAC or 120 to 373VDC. See datasheet.

No Load Input Power

0.3W

Harmonic Currents

EN61000-3-2 Class A

Efficiency

88% typical. 230VAC Full load (see datasheet)

Operating Temperature

-30°C to +70°C. See datasheet

Isolation

Input to Output 4000VAC, Input to Ground 2000VAC, Output to Ground 1250VAC. Class I construction

European Safety Approvals

EN62368-1, EN60335, EN61558

US Safety Approvals

UL62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55032 Class B conducted & radiated
