AC-DC Power Supplies

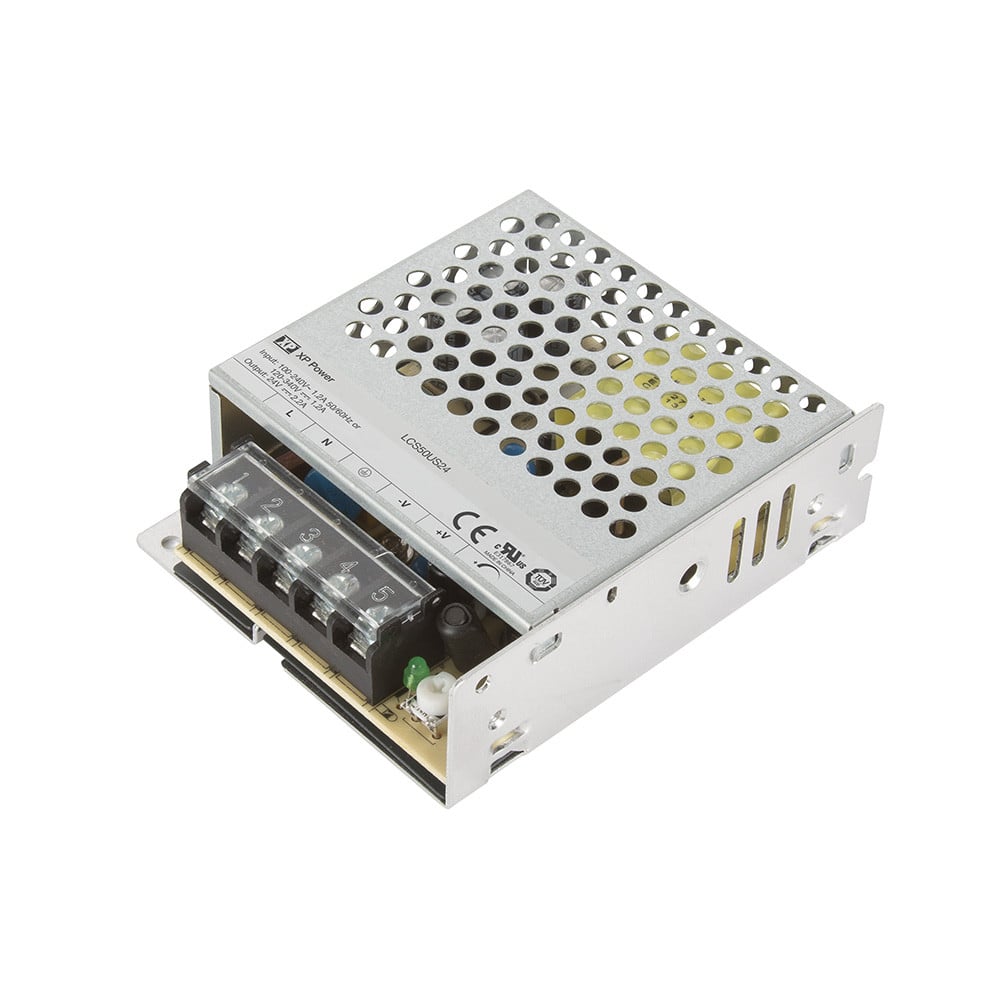

LCS50 Series
Low cost enclosed 50W AC-DC power supplies for technology and industrial electronics applications
The LCS50 series of regulated output convection cooled 50W AC-DC power supplies are designed to provide a cost effective solution for industrial electronics, technology and household applications. Features include output voltage adjustment, a power ‘ON’ LED, low stand-by power consumption, output short circuit protection, over current and over voltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications.
datasheet Contact usFeatures
- Low cost
- 50W convection cooled
- ITE, Industrial & household approvals
- Integrated connector terminals cover
- Class B conducted & radiated emissions
- Input voltage 85 to 264VAC or 120 to 370VDC
- Input surge withstand 300VAC for 5s
- Output voltages from 5 to 48VDC
- Output voltage adjust ±10%
- High efficiency, up to 88%
- Short circuit, overvoltage & overload protection
- Power ‘ON’ LED indicator
- Conformal coating option
- -30°C to +70°C operating temperature
- 3-year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
LCS50US05 | 50 W | Single Phase | 5V | 10A |
|
|
|
|
|
LCS50US12 | 50 W | Single Phase | 12V | 4.2A |
|
|
|
|
|
LCS50US15 | 50 W | Single Phase | 15V | 3.4A |
|
|
|
|
|
LCS50US24 | 50 W | Single Phase | 24V | 2.2A |
|
|
|
|
|
LCS50US36 | 50 W | Single Phase | 36V | 1.45A |
|
|
|
|
|
LCS50US48 | 50 W | Single Phase | 48V | 1.1A |
|
|
|
Specifications
Dimensions
3.89 x 3.23 x 1.18 in (99.0 x 82.0 x 30.0 mm)
Input Voltage
85 to 264VAC or 120 to 373VDC. See datasheet.
No Load Input Power
0.3W
Harmonic Currents
EN61000-3-2 Class A
Efficiency
89% typical. 230VAC Full load (see datasheet)
Operating Temperature
-30°C to +70°C. See datasheet
Isolation
Input to Output 4000VAC, Input to Ground 2000VAC, Output to Ground 1250VAC. Class I construction
European Safety Approvals
EN62368-1, EN60335, EN61558
US Safety Approvals
UL62368-1
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
EN55032 Class B conducted & radiated
