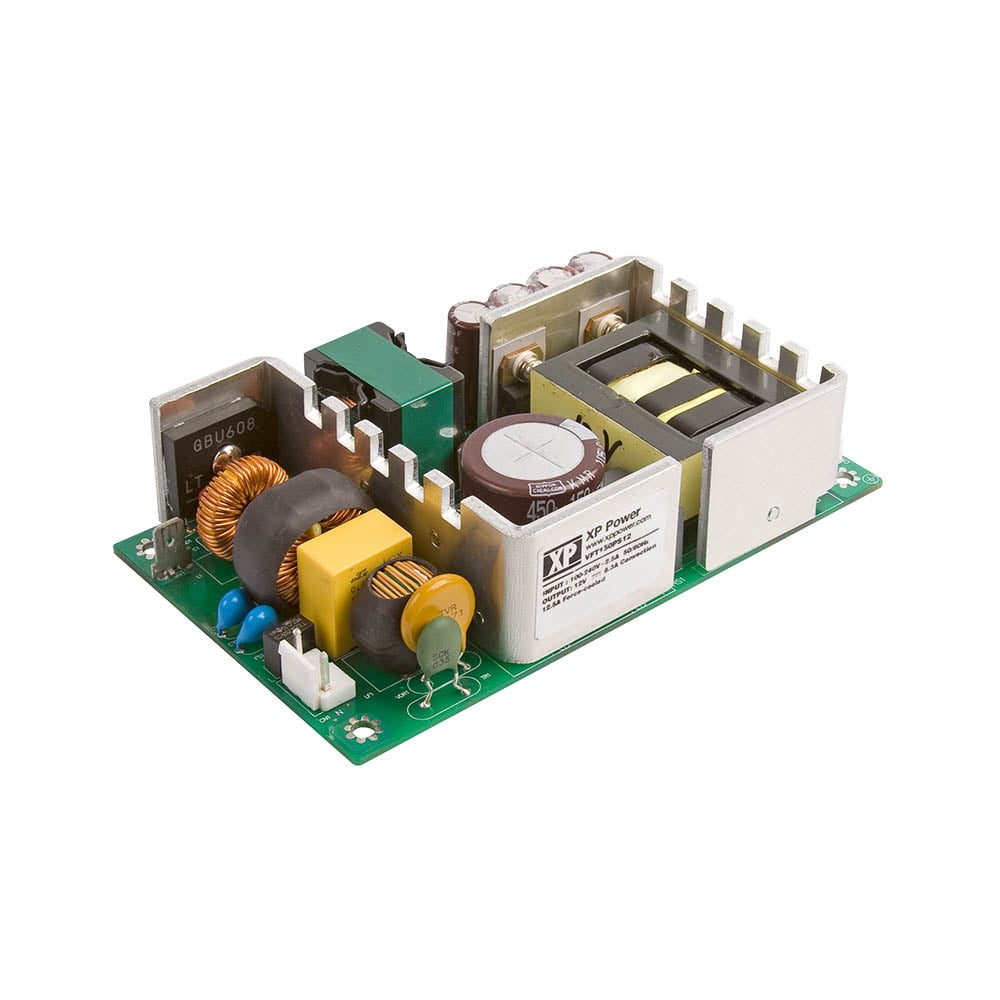

VFT150 Series

AC-DC Power Supplies

VFT150 Series

  • 100 W Convection Rating
  • 150 W Forced-cooled Rating
  • 3” x 5” Package
  • Single Outputs from 5 V to 48 V
  • Built-in Fan Supply
  • <0.5 W No Load Input Power
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VFT150 VFT150US05 150 W Single Phase 5V 24A
VFT150 VFT150US12 150 W Single Phase 12V 12.5A
VFT150 VFT150US15 150 W Single Phase 15V 10A
VFT150 VFT150US24 150 W Single Phase 24V 6.25A
VFT150 VFT150US48 150 W Single Phase 48V 3.13A

Specifications


Dimensions

VFT150: 5.00 x 3.00 x 1.40 in (127.0 x 76.2 x 35.6 mm)

Input Voltage

90-264 VAC

No Load Input Power

<0.5 W

Harmonic Currents

EN61000-3-2 class A EN61000-3-2 class C for loads ?60 W

Efficiency

83-92%

Operating Temperature

-10 °C to +70 °C derate from 100% load at 50 °C to 50% load at 70 °C for 12, 24 & 48 V versions or 65 °C for 5 & 15 V versions

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground 500 VDC Output to Ground

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL60950-1, UL62368-1

EMC

EN55022, level B conducted & radiated
