EPL150 Series

AC-DC Power Supplies

EPL150 Series

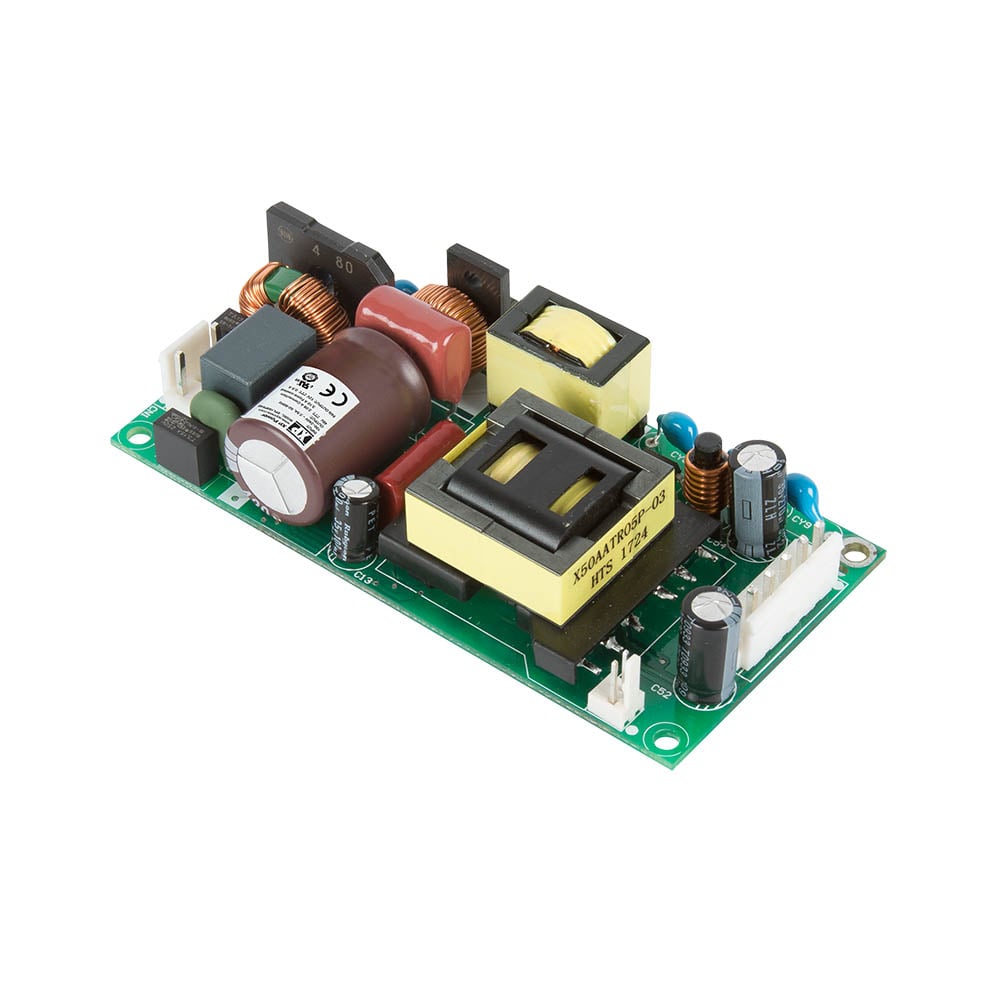

150W fan cooled 100W convection cooled 4" x 2" open frame AC-DC power supplies with medical (BF) & ITE approvals

The EPL150 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation.

Fully approved as Class I & Class II for ITE, industrial electronics and medical (BF) applications, the EPL150 provides up to 100W when convection cooled and up to 150W when forced air cooled at just 10CFM. A 12V 0.5A fan supply is included to support force cooled applications.

The small footprint, low profile, low noise and comprehensive safety agency approvals enable this versatile product to be suitable for a wide range of medical (BF), ITE and industrial electronics applications.



datasheet Contact us

Features

  • 150W fan cooled 100W convection cooled
  • 4” x 2” footprint open frame, 0.99” profile
  • Regulated single outputs 12 to 48VDC
  • Input range 80 to 264VAC
  • High efficiency – up to 94%
  • ITE & medical (BF) approvals
  • 4.0kVAC input to output isolation
  • Class I & class II operation
  • <0.5W no load input power
  • 12V/0.5A fan supply
  • -20°C to +70°C operating temperature
  • Full load to +50°C
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
EPL150 EPL150PS12 150 W Single Phase 12V 12.5A
EPL150 EPL150PS15 150 W Single Phase 15V 10A
EPL150 EPL150PS18 150 W Single Phase 18V 8.33A
EPL150 EPL150PS24 150 W Single Phase 24V 6.25A
EPL150 EPL150PS28 150 W Single Phase 28V 5.4A
EPL150 EPL150PS36 150 W Single Phase 36V 4.17A
EPL150 EPL150PS48 150 W Single Phase 48V 3.1A

Specifications


Dimensions

EPL150: 4.00 x 2.00 x 0.99‚ (101.6 x 50.8 x 25.1 mm)

Input Voltage

90 to 264 VAC (see datasheet)

No Load Input Power

0.5 W

Harmonic Currents

EN61000-3-2, Class A

Efficiency

93% typical (see datasheet)

Operating Temperature

-20 to +70 °C (see datasheet)

Isolation

Input to Output: 4000 VAC (2 MOPP) Input to Ground: 1500 VAC (1 MOPP) Output to Ground: 1500 VAC (1 MOPP)

Worldwide Safety Approvals

IEC60601-1, IEC60950-1-1, IEC62368-1

European Safety Approvals

EN60601-1, EN62368-1

US Safety Approvals

UL60950-1, UL62368-1

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
