VES180 Series

AC-DC Power Supplies

VES180 Series

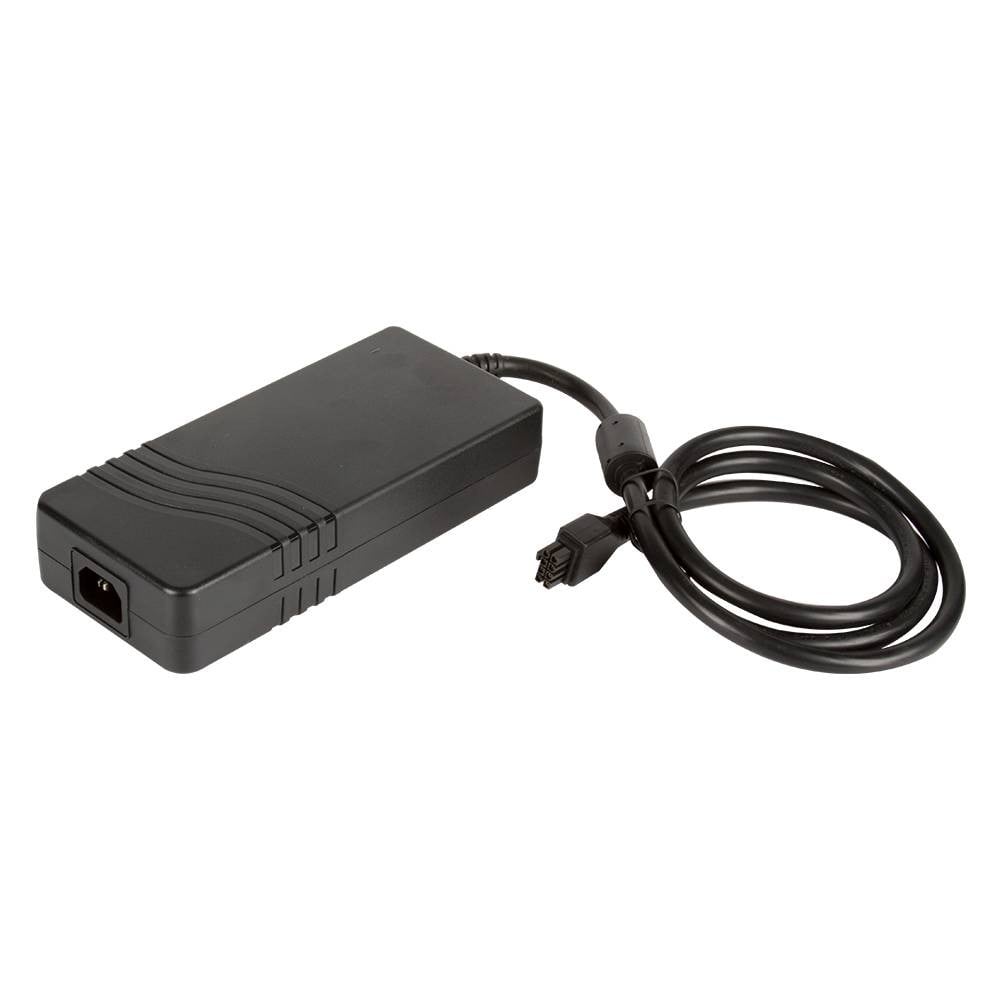

180W low cost desktop AC-DC power supplies

The 180W VES180 with Energy Efficiency Level VI and CoC Tier 2 these desktop/external AC-DC power supplies are designed for high volume/low cost applications.

With class I construction the VES180 are fitted with an IEC320-C14 inlet and have a voltage input range of 90 to 264VAC.

The DC lead is fitted with an 8 way Molex Mini Fit Jnr connector.



datasheet Contact us

Features

  • Energy efficiency level VI
  • European CoC tier 2
  • High Power Density
  • Single outputs from 12V to 48VDC
  • <0.15W standby power
  • China compulsory certification (CCC) qualified
  • -10°C to +60°C operation
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VES180 VES180PS12 180 W Single Phase 12V 15A
VES180 VES180PS15 180 W Single Phase 15V 12A
VES180 VES180PS19 180 W Single Phase 19V 9.47A
VES180 VES180PS24 180 W Single Phase 24V 7.5A
VES180 VES180PS48 180 W Single Phase 48V 3.75A

Specifications


Dimensions

7.77 x 3.5 x 1.53 in (197.4 x 88.9 x 39.0 mm)

Input Voltage

90-264 VAC

No Load Input Power

0.15W

Harmonic Currents

EN61000-3-2 Class A

Operating Temperature

-10 to +60 °C. Derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

Input to Output: 3000VAC, Input to Ground: 1500VAC, Output return is connected to input ground

Worldwide Safety Approvals

IEC62368-1, IEC60950-1

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1, China Compulsory Certification, GB4943, AU/NZ 62368-1, LVD, EMC, RoHS

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)

EMC

EN55032 & FCC Part 15 Class B Conducted & Radiated
