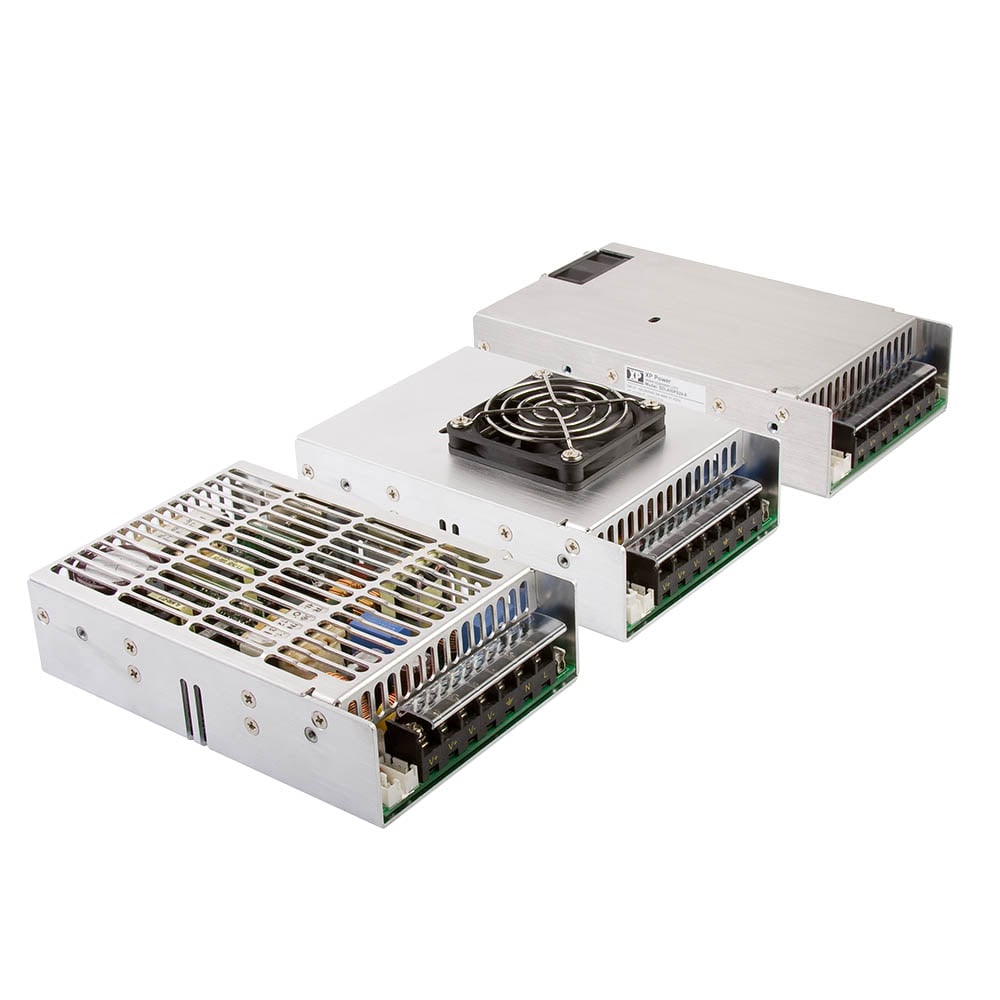

SDL400 Series

AC-DC Power Supplies

SDL400 Series

  • Single & Dual Outputs
  • Up to 700 W Peak Power
  • Fan Fail & Power Good Signals
  • Variable Speed Fan
  • Low Leakage Current Option
  • Fits 1U Applications
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
SDL400 SDL400PS12 400 W Single Phase 12V 33.33A
SDL400 SDL400PS15 400 W Single Phase 15V 26.67A
SDL400 SDL400PS18 400 W Single Phase 18V 22.22A
SDL400 SDL400PS24 400 W Single Phase 24V 16.67A
SDL400 SDL400PS28 400 W Single Phase 28V 14.29A
SDL400 SDL400PS36 400 W Single Phase 36V 11.11A
SDL400 SDL400PS48 400 W Single Phase 48V 8.33A
SDL400 SDL400PS54 400 W Single Phase 54V 7.41A
SDL400 SDL400PS60 400 W Single Phase 60V 6.67A
SDL400 SDL400PD0512 400 W Single Phase 5V, 12V 30A, 20.83A
SDL400 SDL400PD0524 400 W Single Phase 5V, 24V 30A, 10.42A
SDL400 SDL400PD0548 400 W Single Phase 5V, 48V 30A, 5.21A
SDL400 SDL400PD1224 400 W Single Phase 12V, 24V 20.83A, 10.42A
SDL400 SDL400PS12-F 400 W Single Phase 12V 33.33A
SDL400 SDL400PS15-F 400 W Single Phase 15V 26.67A
SDL400 SDL400PS18-F 400 W Single Phase 18V 22.22A
SDL400 SDL400PS24-F 400 W Single Phase 24V 16.67A
SDL400 SDL400PS28-F 400 W Single Phase 28V 14.29A
SDL400 SDL400PS36-F 400 W Single Phase 36V 11.11A
SDL400 SDL400PS48-F 400 W Single Phase 48V 8.33A
SDL400 SDL400PS54-F 400 W Single Phase 54V 7.41A
SDL400 SDL400PS60-F 400 W Single Phase 60V 6.67A
SDL400 SDL400PD0512-F 400 W Single Phase 5V, 12V 30A, 20.83A
SDL400 SDL400PD0524-F 400 W Single Phase 5V, 24V 30A, 10.42A
SDL400 SDL400PD0548-F 400 W Single Phase 5V, 48V 30A, 5.21A
SDL400 SDL400PD1224-F 400 W Single Phase 12V, 24V 20.83A, 10.42A
SDL400 SDL400PS12-E 400 W Single Phase 12V 33.33A
SDL400 SDL400PS15-E 400 W Single Phase 15V 26.67A
SDL400 SDL400PS18-E 400 W Single Phase 18V 22.22A
SDL400 SDL400PS24-E 400 W Single Phase 24V 16.67A
SDL400 SDL400PS28-E 400 W Single Phase 28V 14.29A
SDL400 SDL400PS36-E 400 W Single Phase 36V 11.11A
SDL400 SDL400PS48-E 400 W Single Phase 48V 8.33A
SDL400 SDL400PS54-E 400 W Single Phase 54V 7.41A
SDL400 SDL400PS60-E 400 W Single Phase 60V 6.67A
SDL400 SDL400PD0512-E 400 W Single Phase 5V, 12V 30A, 20.83A
SDL400 SDL400PD0524-E 400 W Single Phase 5V, 24V 30A, 10.42A
SDL400 SDL400PD0548-E 400 W Single Phase 5V, 48V 30A, 5.21A
SDL400 SDL400PD1224-E 400 W Single Phase 12V, 24V 20.83A, 10.42A
SDL400 SDL400PS12-C 400 W Single Phase 12V 33.33A
SDL400 SDL400PS15-C 400 W Single Phase 15V 26.67A
SDL400 SDL400PS18-C 400 W Single Phase 18V 22.22A
SDL400 SDL400PS24-C 400 W Single Phase 24V 16.67A
SDL400 SDL400PS28-C 400 W Single Phase 28V 14.29A
SDL400 SDL400PS36-C 400 W Single Phase 36V 11.11A
SDL400 SDL400PS48-C 400 W Single Phase 48V 8.33A
SDL400 SDL400PS54-C 400 W Single Phase 54V 7.41A
SDL400 SDL400PS60-C 400 W Single Phase 60V 6.67A
SDL400 SDL400PD0512-C 400 W Single Phase 5V, 12V 30A, 20.83A
SDL400 SDL400PD0524-C 400 W Single Phase 5V, 24V 30A, 10.42A
SDL400 SDL400PD0548-C 400 W Single Phase 5V, 48V 30A, 5.21A
SDL400 SDL400PD1224-C 400 W Single Phase 12V, 24V 20.83A, 10.42A

Specifications


Dimensions

SDL: 6.00 x 4.00 x 1.50 in (152.4 x 101.6 x 38.1 mm) SDL-F: 6.00 x 4.00 x 2.14 in (152.4 x 101.6 x 54.4 mm) SDL-E: 7.01 x 4.00 x 1.60 in (177.8 x 101.6 x 40.6 mm) SDL-C: 6.00 x 4.00 x 1.57 in (152.4 x 101.6 x 39.9 mm)

Input Voltage

90-264 VAC

Harmonic Currents

EN61000-3-2 class A EN61000-3-2 class C for loads ?30%

Efficiency

Single output: 88% typical Dual output: 85% typical

Operating Temperature

0 °C to +70 °C, derate at 2.5%/ °C from +50 °C to +70 °C

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground 250 VDC Output to Ground

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL62368-1

EMC

EN55022 Level B conducted & radiated
