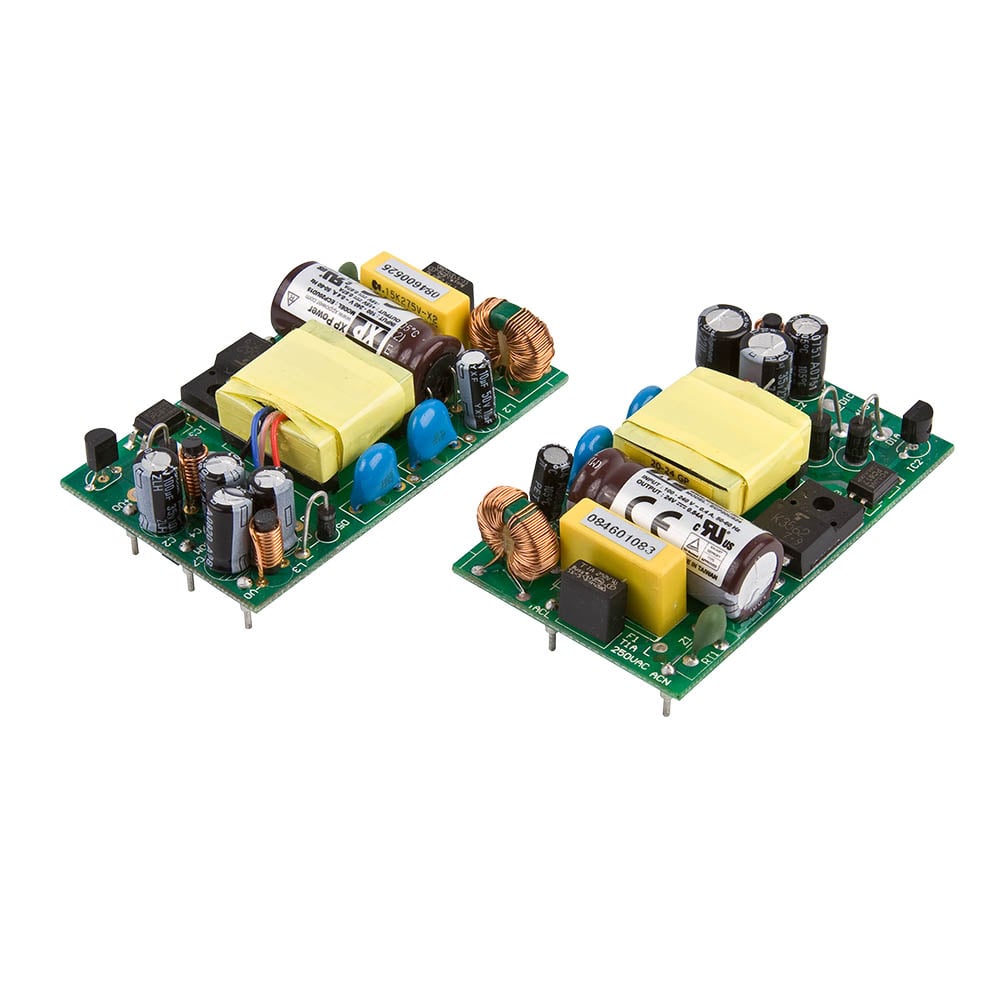

ECP20 Series
20W convection cooled open frame PCB mount AC-DC power supplies with medical & ITE approvals
With single and dual outputs and a 130% peak load capability for up to 30 seconds with a maximum duty cycle of 10%, the ECP20 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation.
Approved for medical, industrial electronics and ITE applications, with a low leakage current as required for medical applications. This range of single output AC-DC power supplies are packaged in a low profile 0.88” height with a foot print of just 2.64” x 1.57" for the single output version.
The ECP20 provides up to 20W convection-cooled over the full 85 to 264VAC input range. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile series to be used in a wide range of applications.
Features
- 20W convection cooled
- Regulated single outputs from 3.3V to 48VDC
- Regulated dual outputs ±12V, ±24V & ±15VDC
- Input range 85 to 264VAC
- Open frame PCB mount
- 2.64” x 1.57” footprint, 0.88” profile
- Peak load capability
- ITE & medical approvals
- 4.0kVAC input to output isolation
- <0.3W no load input power
- Class II construction
- -20°C to +70°C operating temperature
- Full load to +50°C
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
ECP20UD12 | 20W | Single Phase | 12V, -12V | 0.84A, 0.84A | Datasheet | Stock | RFQ |
|
|
ECP20UD15 | 20W | Single Phase | 15V, -15V | 0.67A, 0.67A | Datasheet | Stock | RFQ |
|
|
ECP20UD24 | 20W | Single Phase | 24V, -24V | 0.42A, 0.42A | Datasheet | Stock | RFQ |
|
|
ECP20US03 | 20W | Single Phase | 3.3V | 4A | Datasheet | Stock | RFQ |
|
|
ECP20US05 | 20W | Single Phase | 5V | 4A | Datasheet | Stock | RFQ |
|
|
ECP20US09 | 20W | Single Phase | 9V | 2.23A | Datasheet | Stock | RFQ |
|
|
ECP20US12 | 20W | Single Phase | 12V | 1.67A | Datasheet | Stock | RFQ |
|
|
ECP20US15 | 20W | Single Phase | 15V | 1.34A | Datasheet | Stock | RFQ |
|
|
ECP20US24 | 20W | Single Phase | 24V | 0.84A | Datasheet | Stock | RFQ |
|
|
ECP20US30 | 20W | Single Phase | 30V | 0.67A | Datasheet | Stock | RFQ |
|
|
ECP20US48 | 20W | Single Phase | 48V | 0.42A | Datasheet | Stock | RFQ |
