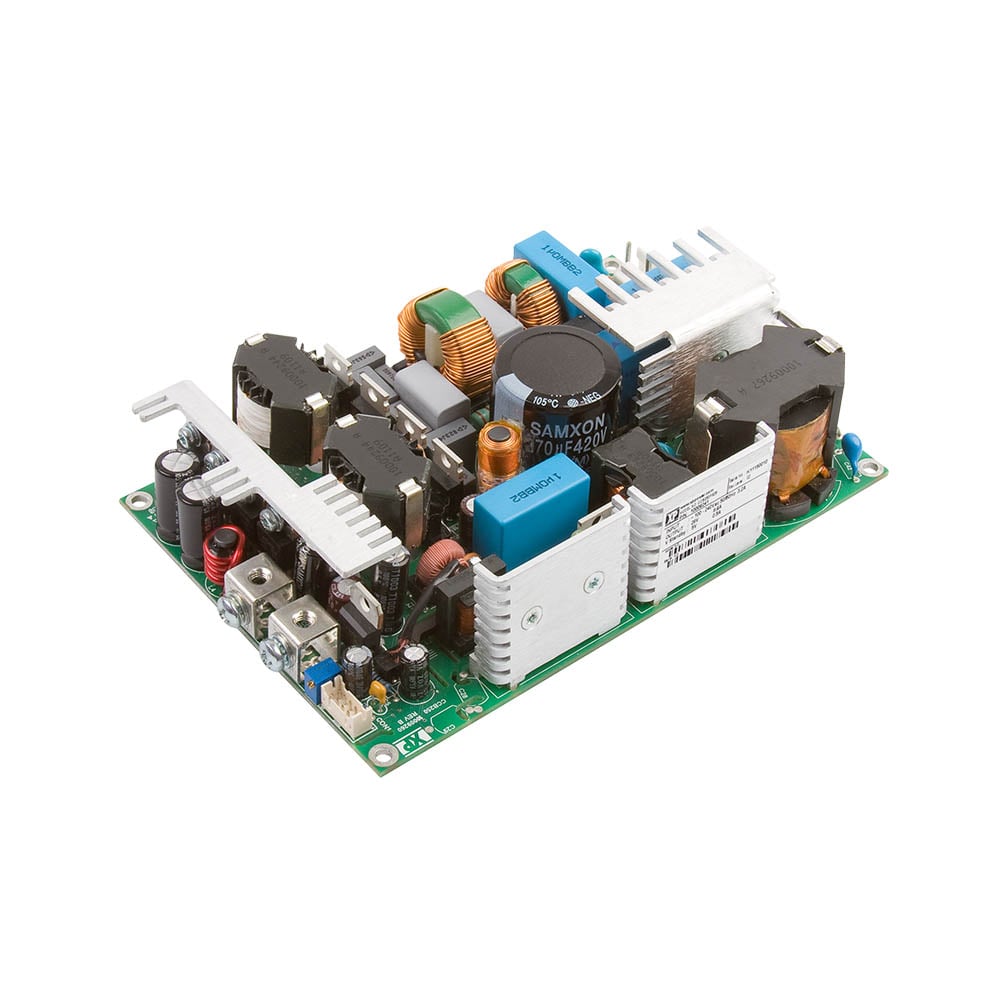

CCB250 Series

AC-DC Power Supplies

CCB250 Series

  • AC - DC Power Supply
  • 250 W Convection-cooled
  • Very Low Heat Loss
  • Very High Efficiency up to 95%
  • 5 V Standby, Inhibit & Power Fail Signals
  • IT & Medical (BF) Safety Approvals
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
CCB250 CCB250PS12 250 W Single Phase 12V 25A
CCB250 CCB250PS15 250 W Single Phase 15V 20A
CCB250 CCB250PS24 250 W Single Phase 24V 12.5A
CCB250 CCB250PS28 250 W Single Phase 26V 10.7A
CCB250 CCB250PS36 250 W Single Phase 36V 8.3A
CCB250 CCB250PS48 250 W Single Phase 48V 6.25A

Specifications

Dimensions

CCB250: 6.00 x 4.00 x 1.50 in (152.4 x 101.6 x 38.1 mm)

Input Voltage

See datasheet

No Load Input Power

<0.5 W when inhibit used

Harmonic Currents

EN61000-3-2, class A, >140 W class C

Efficiency

Up to 95%

Operating Temperature

See datasheet

Isolation

4000 VAC Input to Output 2 x MOPP 1500 VAC Input to Ground 1 x MOPP 1500 VAC Output to Ground 1 x MOPP

Worldwide Safety Approvals

IEC62368-1, IEC60950-1, IEC60601-1

European Safety Approvals

EN62368-1, EN60601-1

US Safety Approvals

ANSI/AAMI ES60601-1, CSA22.2 No.60601-1, UL62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55011/22 level B conducted EN55011/22 level A radiated
