Not recommended for new designsThis product is available for purchase, but there are newer products available that may better suit your needs.
Please contact us to discuss your requirements.
AC-DC Power Supplies
AFM30-60 Series
- Energy Efficiency Level V
- CEC2008 & EISA2007 Compliant
- IT & Medical Approvals
- China Compulsory Certification (CCC) Qualified
- Optional Class II Versions

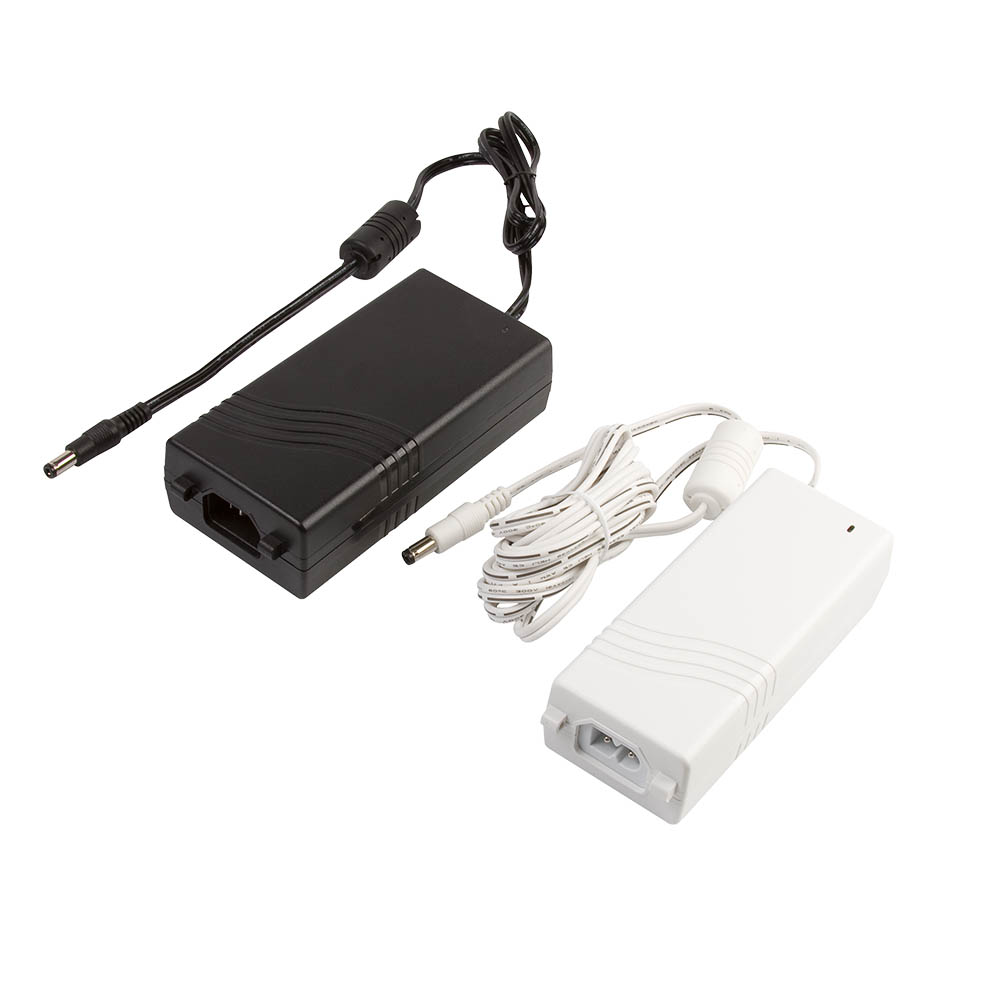

- Optional White Case Versions
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
AFM30US12 | 30 W | Single Phase | 12V | 2.5A |
|
|
|
|
|
AFM30US15 | 30 W | Single Phase | 15V | 2A |
|
|
|
|
|
AFM30US18 | 30 W | Single Phase | 18V | 1.67A |
|
|
|
|
|
AFM30US24 | 30 W | Single Phase | 24V | 1.25A |
|
|
|
|
|
AFM45US12 | 45 W | Single Phase | 12V | 4A |
|
|
|
|
|
AFM45US15 | 45 W | Single Phase | 15V | 3.2A |
|
|
|
|
|
AFM45US18 | 45 W | Single Phase | 18V | 2.67A |
|
|
|
|
|
AFM45US24 | 45 W | Single Phase | 24V | 2A |
|
|
|
|
|
AFM60US12 | 60 W | Single Phase | 12V | 5A |
|
|
|
|
|
AFM60US15 | 60 W | Single Phase | 15V | 4A |
|
|
|
|
|
AFM60US18 | 60 W | Single Phase | 18V | 3.34A |
|
|
|
|
|
AFM60US24 | 60 W | Single Phase | 24V | 2.5A |
|
|
|
Specifications
Dimensions
AFM30-45: 4.76 x 1.97 x 1.21 in (121.0 x 50.0 x 30.8 mm) AFM60: 4.92 x 2.44 x 1.33 in (125.0 x 62.0 x 34.0 mm)
Input Voltage
80-264 VAC, derate output power 25% <90 VAC
No Load Input Power
AFM30/45: <0.3 W, AFM60: <0.5 W
Harmonic Currents
EN61000-3-2, Class A
Efficiency
87-88%
Operating Temperature
0 °C to +60 °C, derate from 100% power at +40 °C to 60% power at +60 °C
Isolation
4000 VAC Input to Output, 2 x MOPP 1500 VAC Input to Ground, 1 x MOPP* Output 0 V is electrically connected to Input Ground*. *Not C8 version
Worldwide Safety Approvals
IEC60950-1, IEC60601-1 (3rd Ed.)
European Safety Approvals
EN62368-1, EN60950-1, EN60601-1 (3rd Ed.)
US Safety Approvals
UL60950-1, UL60601-1 (2nd Ed.)
Other Safety Approvals
China Compulsory Certification (CCC) Qualified
EMC
EN55011/22/FCC Class B conducted, EN55011/22/FCC Class B radiated
