AC-DC Power Supplies
AKM45 Series

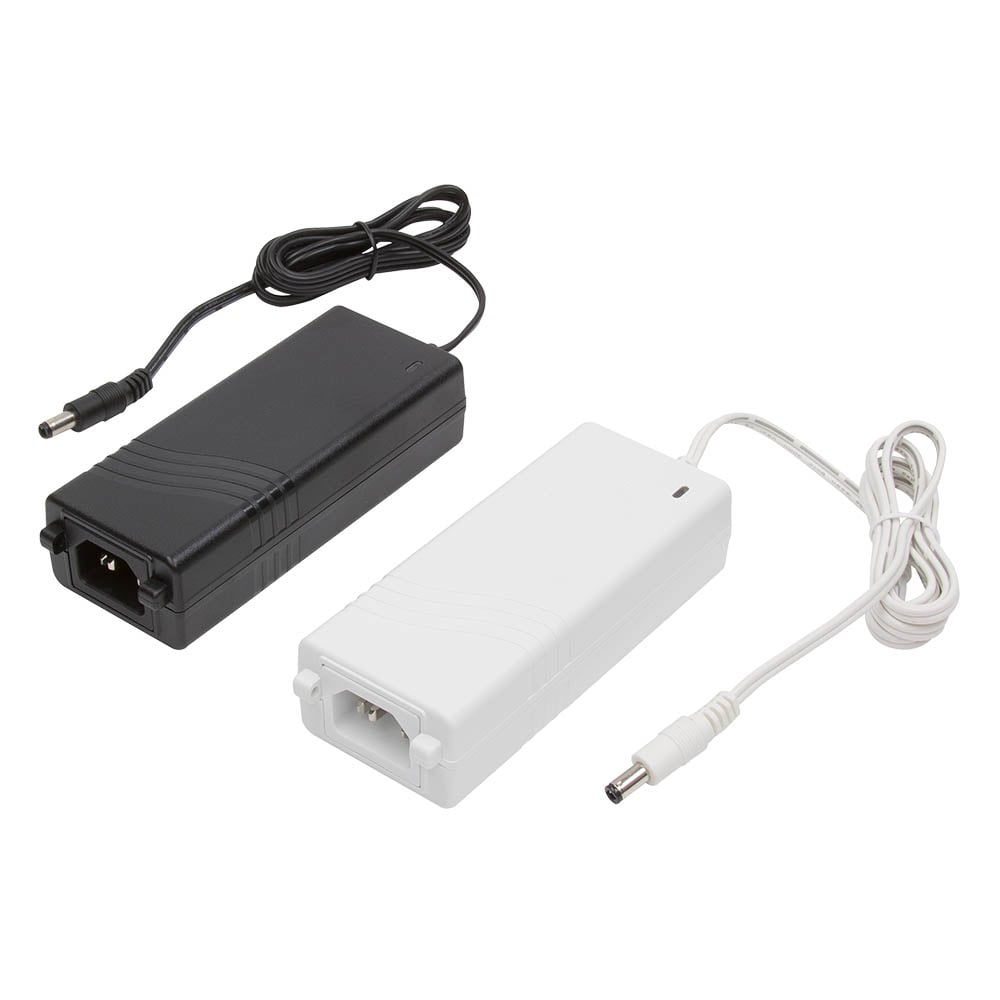

IP rated medical desktop 45W AC-DC power supplies upgraded with home healthcare approvals
The AKM45 series of desktop adaptors comply with medical, home-healthcare and IT approvals along with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption.
Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive industrial and medical applications while maintaining industry leading performance. The standard class I version has an IEC320-C14 inlet, the class II version with suffix C2 has a polarized IEC320-C8 inlet.
datasheet Contact usFeatures
- Energy efficiency level VI
- European CoC Tier 2
- ITE & medical (2 x MOPP) approvals
- 4th edition medical EMC
- Class I as standard, Class II optional
- Class B conducted & radiated emissions
- Input voltage range 90 to 264VAC
- Output voltages from 9 to 48VDC
- 0°C to +60°C operating temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
AKM45US09 | 45 W | Single Phase | 9V | 4.5A |
|
|
|
|
|
AKM45US12 | 45 W | Single Phase | 12V | 4A |
|
|
|
|
|
AKM45US15 | 45 W | Single Phase | 15V | 3.2A |
|
|
|
|
|
AKM45US18 | 45 W | Single Phase | 18V | 2.66A |
|
|
|
|
|
AKM45US24 | 45 W | Single Phase | 24V | 2A |
|
|
|
|
|
AKM45US48 | 45 W | Single Phase | 48V | 1A |
|
|
|
|
|
AKM45US09C2 | 45 W | Single Phase | 9V | 4.5A |
|
|
|
|
|
AKM45US12C2 | 45 W | Single Phase | 12V | 4A |
|
|
|
|
|
AKM45US15C2 | 45 W | Single Phase | 15V | 3.2A |
|
|
|
|
|
AKM45US18C2 | 45 W | Single Phase | 18V | 2.66A |
|
|
|
|
|
AKM45US24C2 | 45 W | Single Phase | 24V | 2A |
|
|
|
|
|
AKM45US48C2 | 45 W | Single Phase | 48V | 1A |
|
|
|
Specifications
Dimensions
AKM45: 4.82 x 2.02 x 1.24‚ (122.4 x 51.4 x 31.5 mm)
Input Voltage
90 to 264 Vac
No Load Input Power
75 mW
Efficiency
89% Typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input
Operating Temperature
0 to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C. Agency approval to 40 °C max.
Isolation
Input to Output: 4000 VAC, Input to Output, 2 x MOPP Input to GND: 1500 VAC, Class I Version Only Output to GND: 1500 VAC, Class I Version Only
Worldwide Safety Approvals
IEC62368-1, IEC60950-1, IEC60601-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601, UL 62368-1
Other Safety Approvals
LVD, AU/NZ 60950.1, GB17625.1, GB4943.1, GB/T9254, CE & UKCA meets all applicable directives & legislation.
EMC
EN55032, Level B Conducted and Radiated EN61000-3-3, Voltage Flicker
