AC-DC Power Supplies

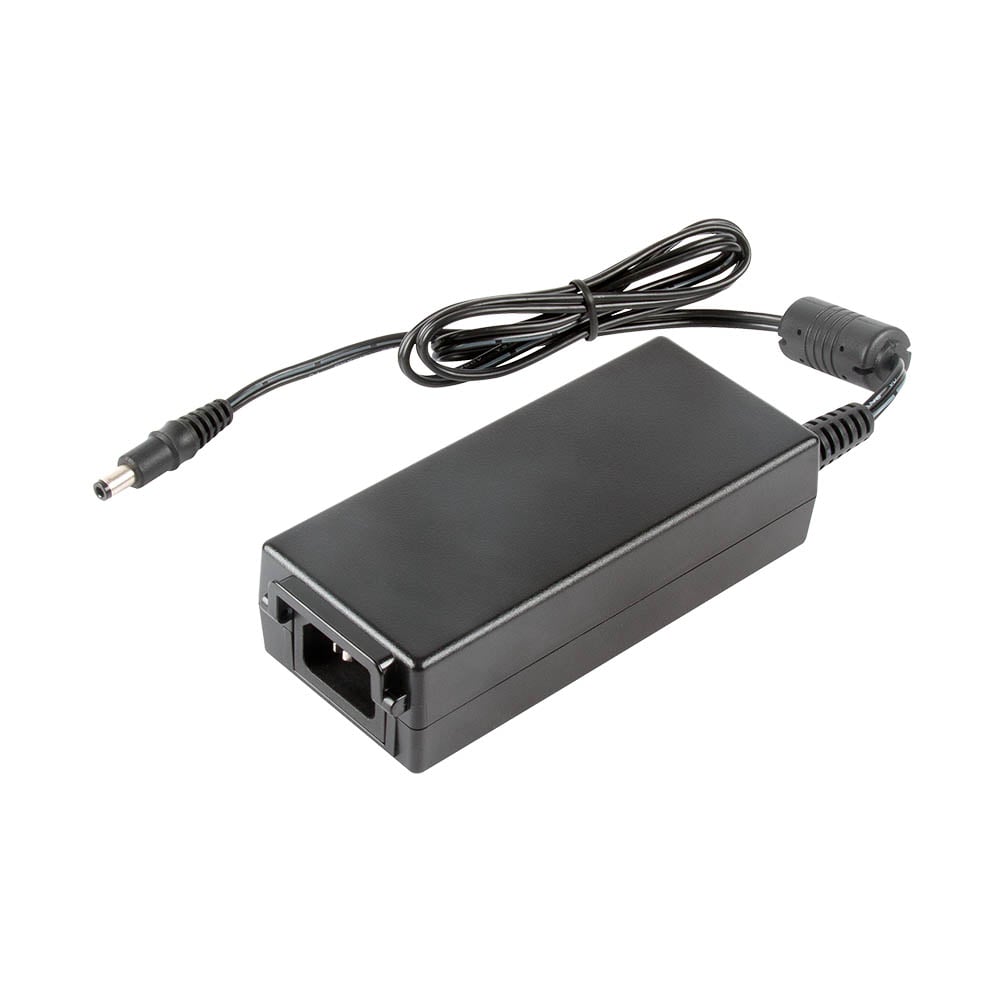

ALM65 Series
65W desktop AC-DC power supplies in a sealed IP32 case for ITE & medical applications
The ALM65 series of medical external power supplies is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting.
datasheet Contact usFeatures
- Medical & IT Safety Approvals
- Energy Efficiency Level VI
- 4th Edition Medical EMC
- IP32 Environmental Rating
- Class I and Class II Versions
- <0.21 W Standby Power
- 0°C to 60°C Operation
- Low Earth Leakage Current
- 3 Year Warrant
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
ALM65US12 | 65 W | Single Phase | 12V | 5.4A |
|
|
|
|
|
ALM65US15 | 65 W | Single Phase | 15V | 4.3A |
|
|
|
|
|
ALM65US19 | 65 W | Single Phase | 19V | 3.4A |
|
|
|
|
|
ALM65US24 | 65 W | Single Phase | 24V | 2.7A |
|
|
|
|
|
ALM65US48 | 65 W | Single Phase | 48V | 1.35A |
|
|
|
Specifications
Dimensions
ALM65: 4.94 x 2.19 x 1.32‚ (125.5 x 55.5 x 33.5 mm)
Input Voltage
80 to 264 Vac, derate linearly from 100% load at 90 VAC to 80% load at 80 VAC
No Load Input Power
0.21 W
Harmonic Currents
EN61000-3-2
Efficiency
88%, see datasheet
Operating Temperature
0 to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
Input to Output: 4000 Vac, 2 x MOPP Input to Ground: 1500 Vac, 1 x MOPP (Class I versions only) Output to Ground: 500 Vac, Class I versions only
Worldwide Safety Approvals
IEC62368-1, IEC60950-1, IEC60601-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601, UL62368-1
Other Safety Approvals
LVD, CCC, KC & RCM
EMC
EN55022, Level B, Conducted & Radiated
