AC-DC Power Supplies
AKM65 Series
IP rated medical desktop 65W AC-DC power supplies upgraded with home healthcare approvals
The AKM65 series of desktop adaptors comply with medical, home-healthcare and IT approvals along with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption.
Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive industrial and medical applications while maintaining industry leading performance. The standard class I version has an IEC320-C14 inlet, the class II version with suffix C2 has a polarized IEC320-C8 inlet.
datasheet Contact usFeatures
- Energy efficiency level VI
- European CoC tier 2
- Medical and ITE approvals
- Class I as standard, Class II optional

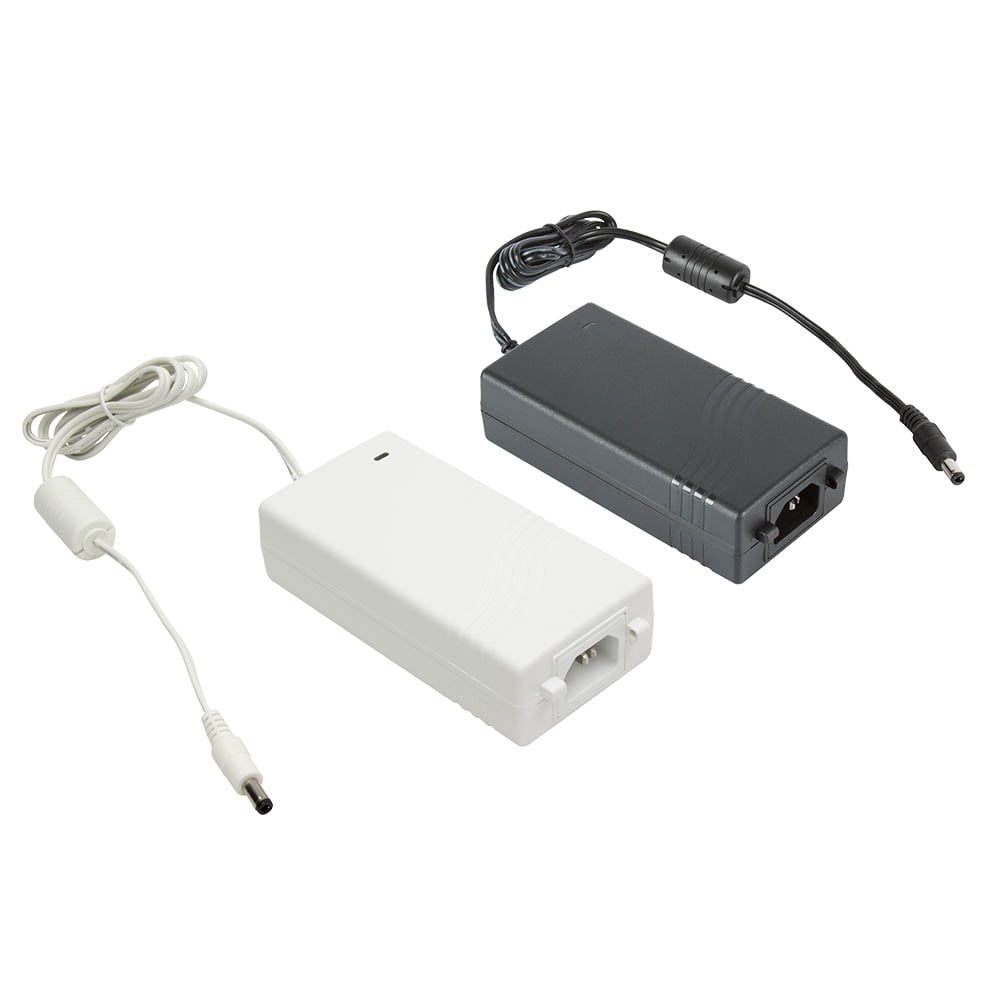

- Optional white versions
- Output Voltages from 12V to 48VDC
- Optional AC cable restraint
- 3 Years Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
AKM65US12 | 65 W | Single Phase | 12V | 5.42A |
|
|
|
|
|
AKM65US15 | 65 W | Single Phase | 15V | 4.3A |
|
|
|
|
|
AKM65US18 | 65 W | Single Phase | 18V | 3.6A |
|
|
|
|
|
AKM65US24 | 65 W | Single Phase | 24V | 2.7A |
|
|
|
|
|
AKM65US48 | 65 W | Single Phase | 48V | 1.35A |
|
|
|
|
|
AKM65US12C2 | 65 W | Single Phase | 12V | 5.42A |
|
|
|
|
|
AKM65US15C2 | 65 W | Single Phase | 15V | 4.3A |
|
|
|
|
|
AKM65US18C2 | 65 W | Single Phase | 18V | 3.6A |
|
|
|
|
|
AKM65US24C2 | 65 W | Single Phase | 24V | 2.7A |
|
|
|
|
|
AKM65US48C2 | 65 W | Single Phase | 48V | 1.35A |
|
|
|
Specifications
Dimensions
AKM65: 4.92 x 2.45 x 1.34‚ (125.0 x 62.3 x 34.0 mm)
Input Voltage
90 to 264 Vac
No Load Input Power
150 mW
Efficiency
89% Typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input
Operating Temperature
0 to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
4000 Vac, Input to Output, 2 x MOPP
Worldwide Safety Approvals
IEC62368-1, IEC60950-1, IEC60601-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601, UL62368-1
Other Safety Approvals
LVD, AU/NZ 60950.1
EMC
EN55032, Level B Conducted and Radiated EN61000-3-3, Voltage Flicker
