AC-DC Power Supplies
ALM85 Series

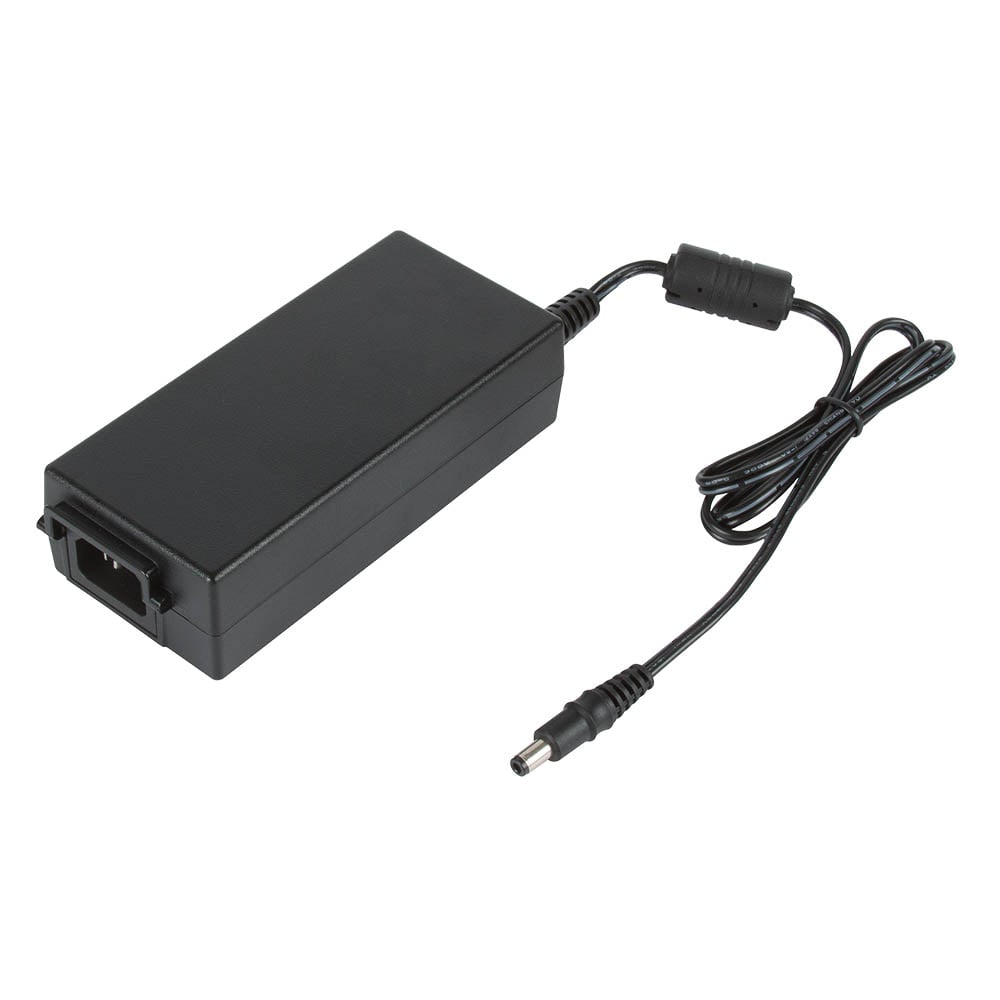

85W desktop AC-DC power supplies in a sealed IP32 case for ITE & medical applications
The ALM85 has both medical (2 x MOPP) and ITE safety approvals, available as class I, or class II construction with a smooth wipe clean IP32 sealed case that is ideal for healthcare applications.
The standard class I version has an IEC320-C14 inlet, the class II version with suffix C2-8 has a polarized IEC320-C8 inlet.
datasheet Contact usFeatures
- Medical & ITE safety approvals
- Energy efficiency level VI
- EU CoC tier 2 compliant
- 4th edition medical EMC
- IP32 environmental rating
- Class I and class II versions
- <0.15 W standby power
- 0°C to 60°C operation
- Low earth leakage current
- 3 year warrant
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
ALM85US12 | 85 W | Single Phase | 12V | 6.67A |
|
|
|
|
|
ALM85US15 | 85 W | Single Phase | 15V | 5.33A |
|
|
|
|
|
ALM85US19 | 85 W | Single Phase | 19V | 4.47A |
|
|
|
|
|
ALM85US24 | 85 W | Single Phase | 24V | 3.54A |
|
|
|
|
|
ALM85US12C2-8 | 85 W | Single Phase | 12V | 6.67A |
|
|
|
|
|
ALM85US15C2-8 | 85 W | Single Phase | 15V | 5.33A |
|
|
|
|
|
ALM85US19C2-8 | 85 W | Single Phase | 19V | 4.47A |
|
|
|
|
|
ALM85US24C2-8 | 85 W | Single Phase | 24V | 3.54A |
|
|
|
Specifications
Dimensions
ALM85: 5.315 x 2.441 x 1.457‚ (135.0 x 62.0 x 37.0 mm)
Input Voltage
80 to 264 VAC, Derate linearly from 100% load at 90 VAC to 80% load at 80 VAC. 300 VAC/5 s maximum
No Load Input Power
0.15W
Harmonic Currents
EN61000-3-2
Efficiency
88% (see datasheet)
Operating Temperature
0 to +60 °C , Derate from 100% load at 40 °C to 60% load at 60 °C
Isolation
Input to Output: 4000 VAC, 2 x MOPP Input to Ground: 1500 VAC, 1 x MOPP (Class I versions only) Output to Ground: 500 VAC, Class I versions only
Worldwide Safety Approvals
IEC62368-1, IEC60950-1, IEC60601-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601, UL62368-1
Other Safety Approvals
LVD
EMC
EN55022, Level B, Conducted & Radiated
