VES90 Series

AC-DC Power Supplies

VES90 Series

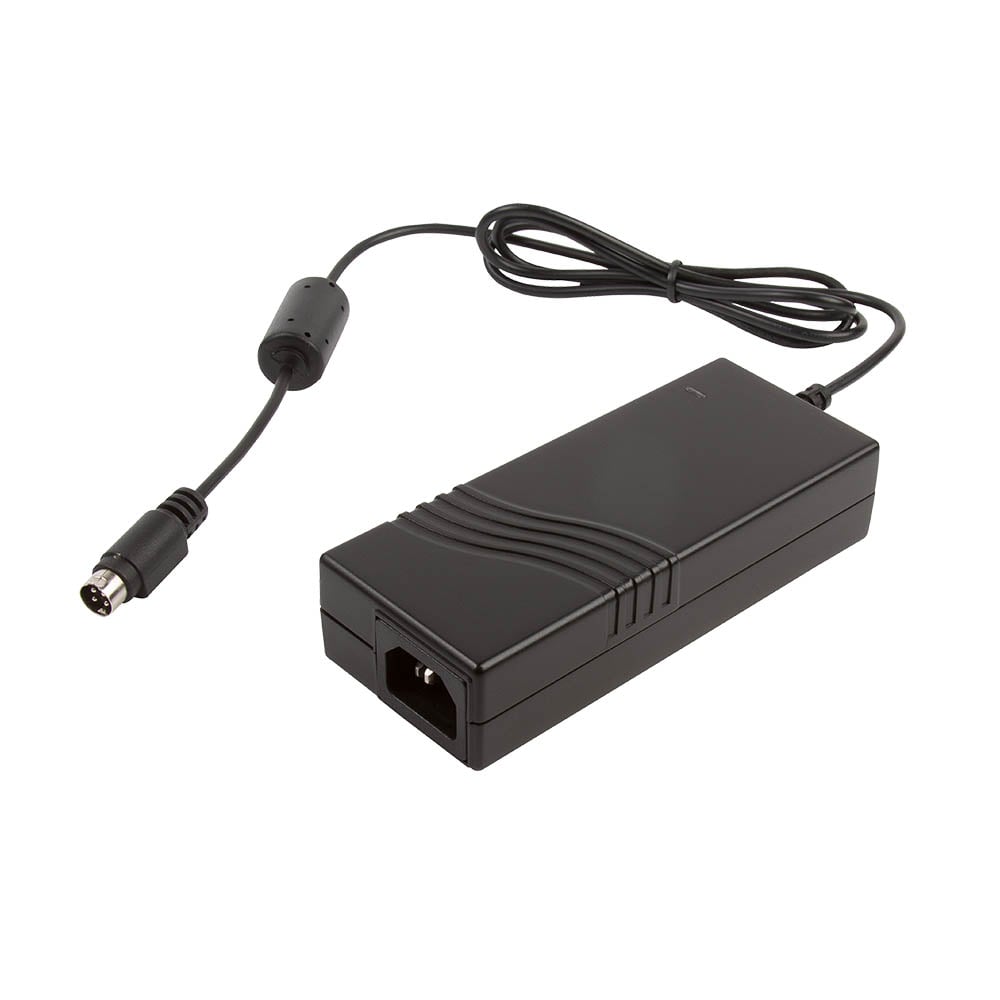

90W low cost desktop AC-DC power supplies

The 90W VES90 with Energy Efficiency Level VI and CoC Tier 2 these desktop/external AC-DC power supplies are designed for high volume/low cost applications.

With class I construction the VES90 are fitted with an IEC320-C14 inlet and have a voltage input range of 90 to 264VAC.

The DC lead is fitted with a 4 pin power mini DIN connector as standard, alternatively a 5.5 x 2.5mm barrel jack connector can be specified as an option.



datasheet Contact us

Features

  • Energy efficiency level VI
  • European CoC tier 2
  • High power density
  • Single outputs from 12V to 48VDC
  • <0.15W standby power
  • China compulsory certification (CCC) qualified
  • 0°C to +60°C operation
  • Optional output connector
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VES90 VES90PS12 90 W Single Phase 12V 7.5A
VES90 VES90PS19 90 W Single Phase 19V 4.74A
VES90 VES90PS24 90 W Single Phase 24V 3.75A
VES90 VES90PS48 90 W Single Phase 48V 1.875A

Specifications


Dimensions

VES90: 5.47 x 2.28 x 1.22‚ (139.0 x 58.0 x 31.0 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

<0.15 W

Harmonic Currents

EN61000-3-2 Class A

Efficiency

89% typical

Operating Temperature

0 °C to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground Output return is connected to input ground

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL60950-1, UL62368-1, China Compulsory Certification, GB4943

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)

EMC

EN55032 Level B conducted & radiated
