AEK15 Series

AC-DC Power Supplies

AEK15 Series

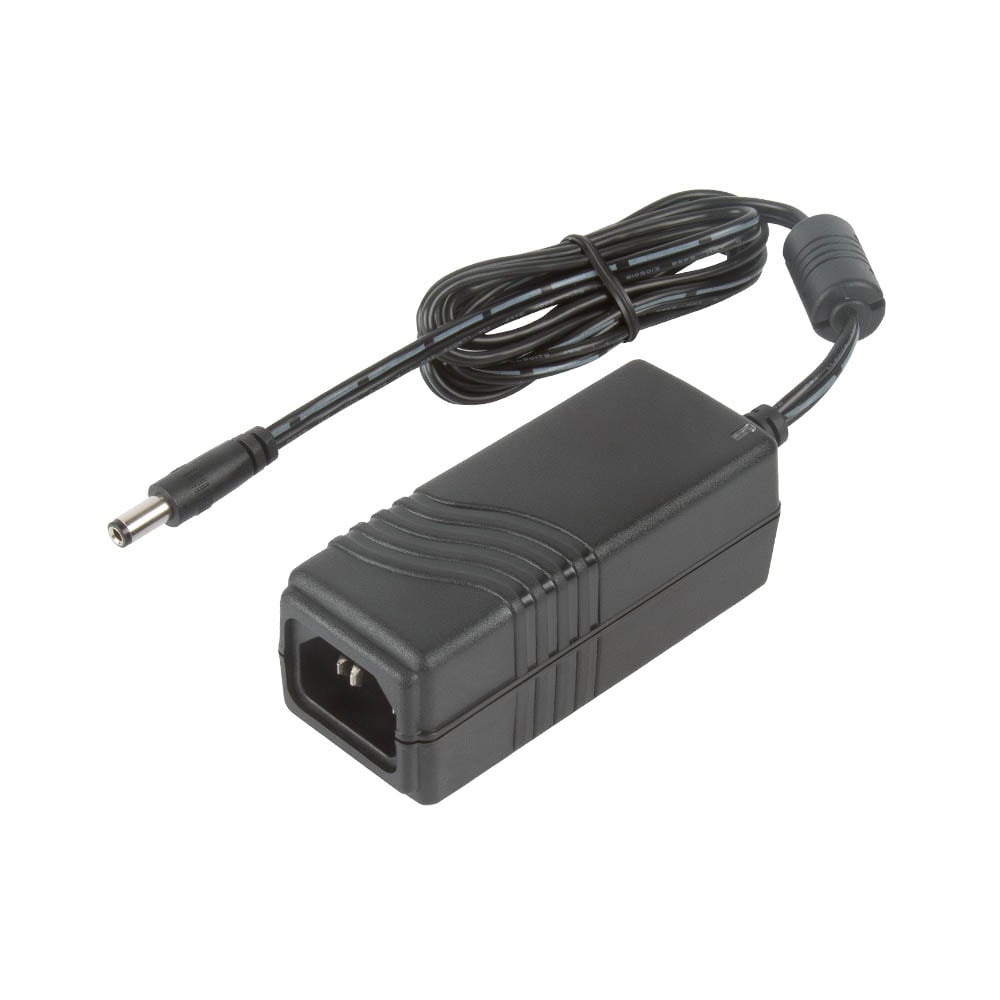

15W desktop AC-DC power supplies with ITE approvals

Energy Efficiency Level VI and CoC Tier 2 the 15W AEK15 desktop AC-DC power supplies are designed for ITE & industrial electronics applications. With a voltage input range of 90 to 264VAC, level B conducted & radiated emissions and class I construction, they are fitted with an IEC320-C14 inlet or an optional IEC320-C6 inlet.



datasheet Contact us

Features

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Universal Input
  • <0.075W Standby Power
  • Single Outputs 5V to 48VDC
  • 0°C to 60°C Operation
  • 3 Year Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
AEK15 AEK15US09 15 W Single Phase 9V 1.66A
AEK15 AEK15US12 15 W Single Phase 12V 1.25A
AEK15 AEK15US15 15 W Single Phase 15V 1A
AEK15 AEK15US48 15 W Single Phase 48V 0.31A

Specifications


Dimensions

AEK15: 3.58 x 1.50 x 1.42‚ (91.0 x 38.0 x 36.0 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW (150 mW for 24 V and 48 V models)

Harmonic Currents

EN61000-3-2, Class A

Efficiency

84% (See Models and Ratings table and curves)

Operating Temperature

0 to +60 °C, Derate from 100% load at 40 °C to 67% load at 60 °C

Isolation

Input to Ground: 1500 VAC Input to Output: 3000 VAC Output to Ground: 500 VDC

Worldwide Safety Approvals

IEC62368-1

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation.

EMC

EN55032, Level B, Conducted & Radiated
