AC-DC Power Supplies
AMF18 Series

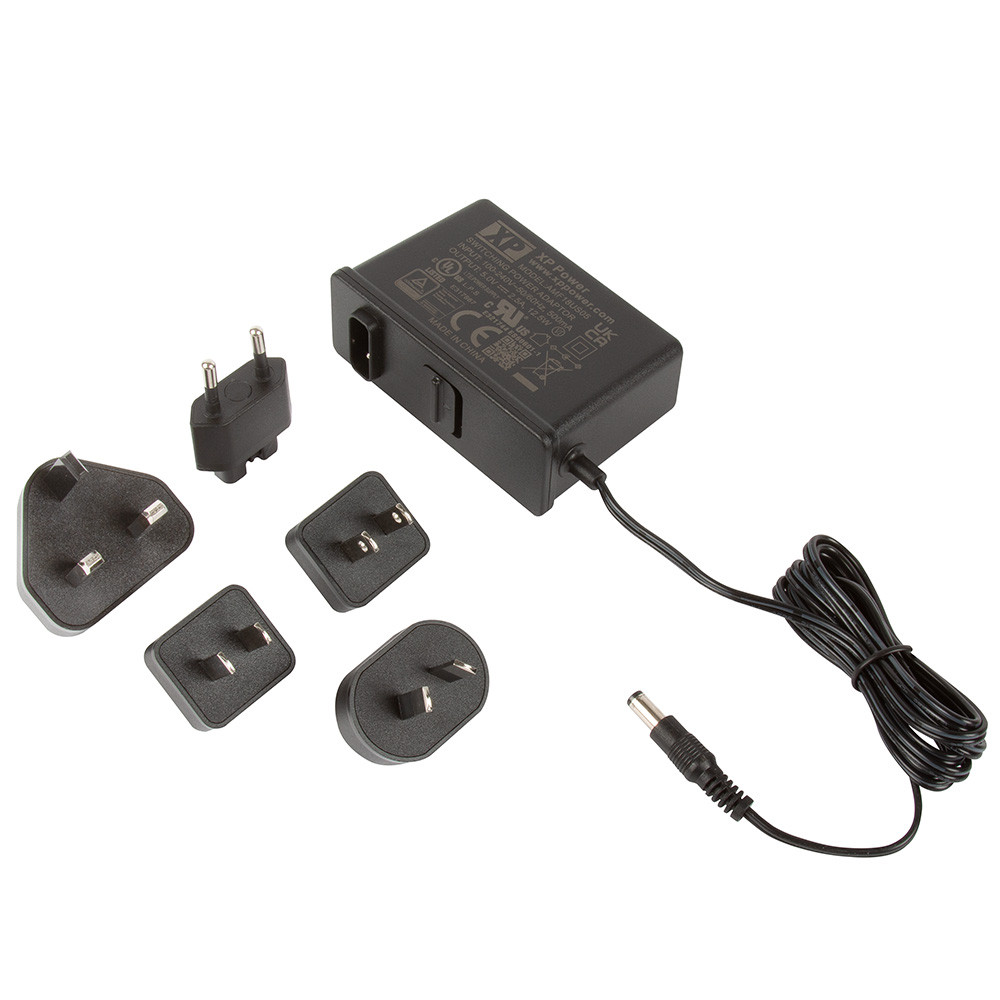

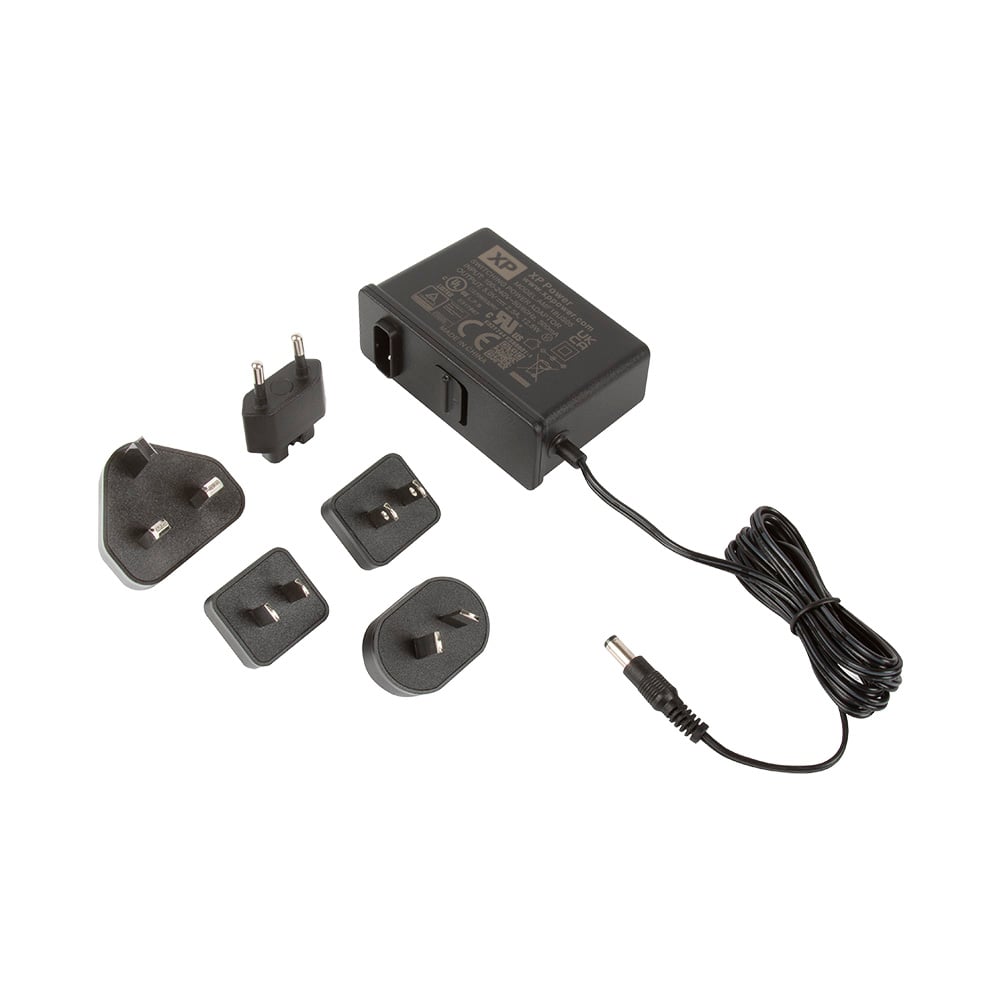

18W plugtop AC-DC power supplies in a sealed IP22 case for medical & home healthcare applications
The AMF18 series of wall mount adaptors comply with medical and home healthcare approvals along with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption.
Available with a range of interchangeable AC connectors these adaptors suit a wide variety of cost sensitive medical applications while maintaining industry leading performance.
datasheet Contact usFeatures
- IP22 ingress protection
- IEC/EN60601-1-11 for home healthcare applications
- Energy efficiency level VI & EU2019/1782
- Medical and home healthcare approvals
- Input voltage range 80 to 264VAC
- Output voltages from 5V to 24VDC
- Interchangeable mains connectors
- Optional white versions
- Class II construction
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
AMF18US05 | 18 W | Single Phase | 5V | 2.5A |
|
|
|
|
|
AMF18US09 | 18 W | Single Phase | 9V | 2A |
|
|
|
|
|
AMF18US12 | 18 W | Single Phase | 12V | 1.5A |
|
|
|
|
|
AMF18US15 | 18 W | Single Phase | 15V | 1.2A |
|
|
|
|
|
AMF18US18 | 18 W | Single Phase | 18V | 1A |
|
|
|
|
|
AMF18US24 | 18 W | Single Phase | 24V | 0.75A |
|
|
|
Specifications
Dimensions
3.56” x 1.32” x 2.3” (90.5 x 33.5 x 58.5mm)
Input Voltage
80 to 264VAC. See datasheet.
No Load Input Power
75 mW max
Harmonic Currents
EN61000-3-2 Class A
Efficiency
88% typical
Operating Temperature
0°C to +60°C. See datasheet
Isolation
4000VAC, Input to Output 2 x MOPP Suitable for BF applications
Worldwide Safety Approvals
IEC60601-1, IEC60601-1-11
European Safety Approvals
EN62368-1, EN60601-11, EN60601-1-11
US Safety Approvals
ANSI/AAMI ES60601-1, CSA C22.2 No. 60601
Other Safety Approvals
CE & UKCA Meets all applicable directives and legislation
EMC
EN55011 Level B conducted & radiated
