AMF24 Series

AC-DC Power Supplies

AMF24 Series

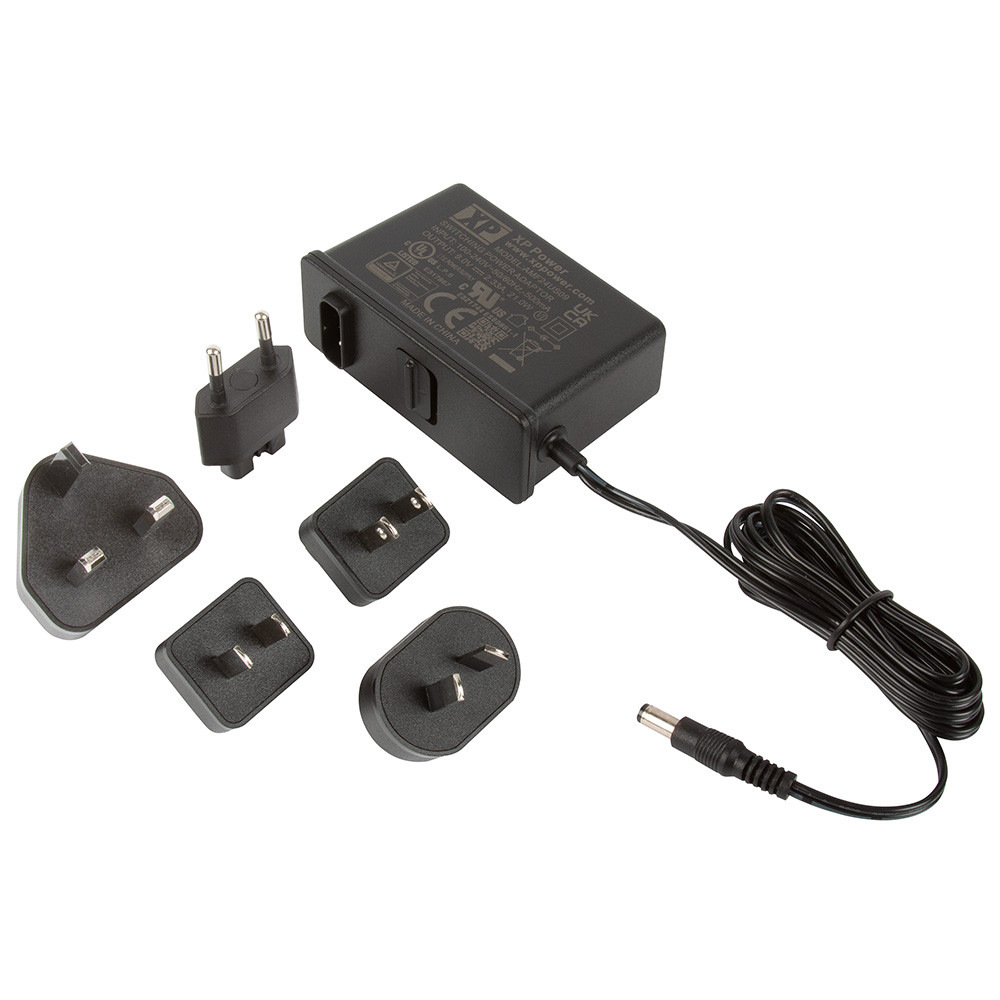

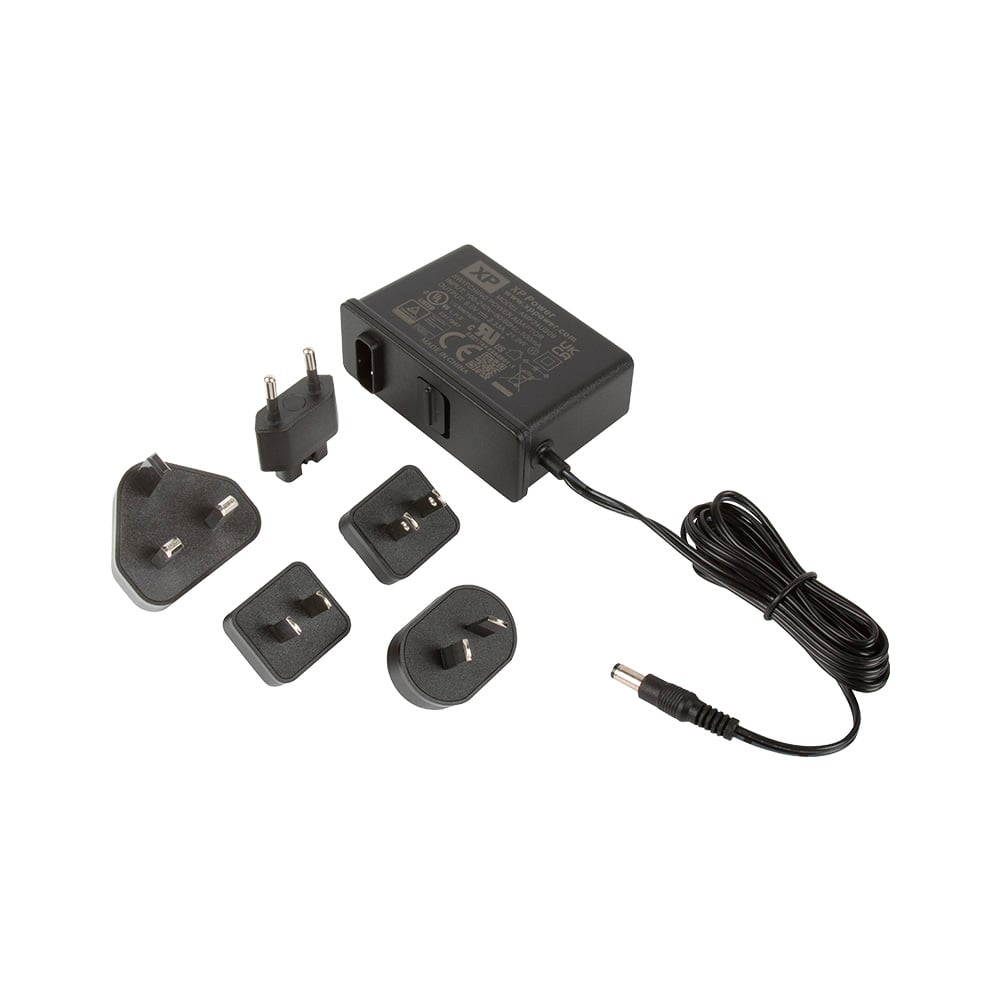

24W plugtop AC-DC power supplies in a sealed IP22 case for medical & home healthcare applications

The AMF24 series of wall mount adaptors comply with medical and home healthcare approvals along with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption.

Available with a range of interchangeable AC connectors these adaptors suit a wide variety of cost sensitive medical applications while maintaining industry leading performance.

datasheet Contact us

Features

  • IP22 ingress protection
  • IEC/EN60601-1-11 for home healthcare applications
  • Energy efficiency level VI & EU2019/1782
  • Medical and home healthcare approvals
  • Input voltage range 80 to 264VAC
  • Output voltages from 9V to 48VDC
  • Interchangeable mains connectors
  • Optional white versions
  • Class II construction
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
AMF24 AMF24US09 24 W Single Phase 9V 2.33A
AMF24 AMF24US12 24 W Single Phase 12V 2A
AMF24 AMF24US15 24 W Single Phase 15V 1.6A
AMF24 AMF24US18 24 W Single Phase 18V 1.33A
AMF24 AMF24US24 24 W Single Phase 24V 1A
AMF24 AMF24US48 24 W Single Phase 48V 0.5A

Specifications


Dimensions

3.56” x 1.32” x 2.3” (90.5 x 33.5 x 58.5mm)

Input Voltage

80 to 264VAC. See datasheet.

No Load Input Power

75mW max

Harmonic Currents

EN61000-3-2 Class A

Efficiency

88% typical

Operating Temperature

0°C to +60°C. See datasheet

Isolation

4000VAC, Input to Output 2 x MOPP Suitable for BF applications

Worldwide Safety Approvals

IEC60601-1, IEC60601-1-11

European Safety Approvals

EN62368-1, EN60601-11, EN60601-1-11

US Safety Approvals

ANSI/AAMI ES60601-1, CSA C22.2 No. 60601

Other Safety Approvals

CE & UKCA Meets all applicable directives and legislation

EMC

EN55011 Level B conducted & radiated
