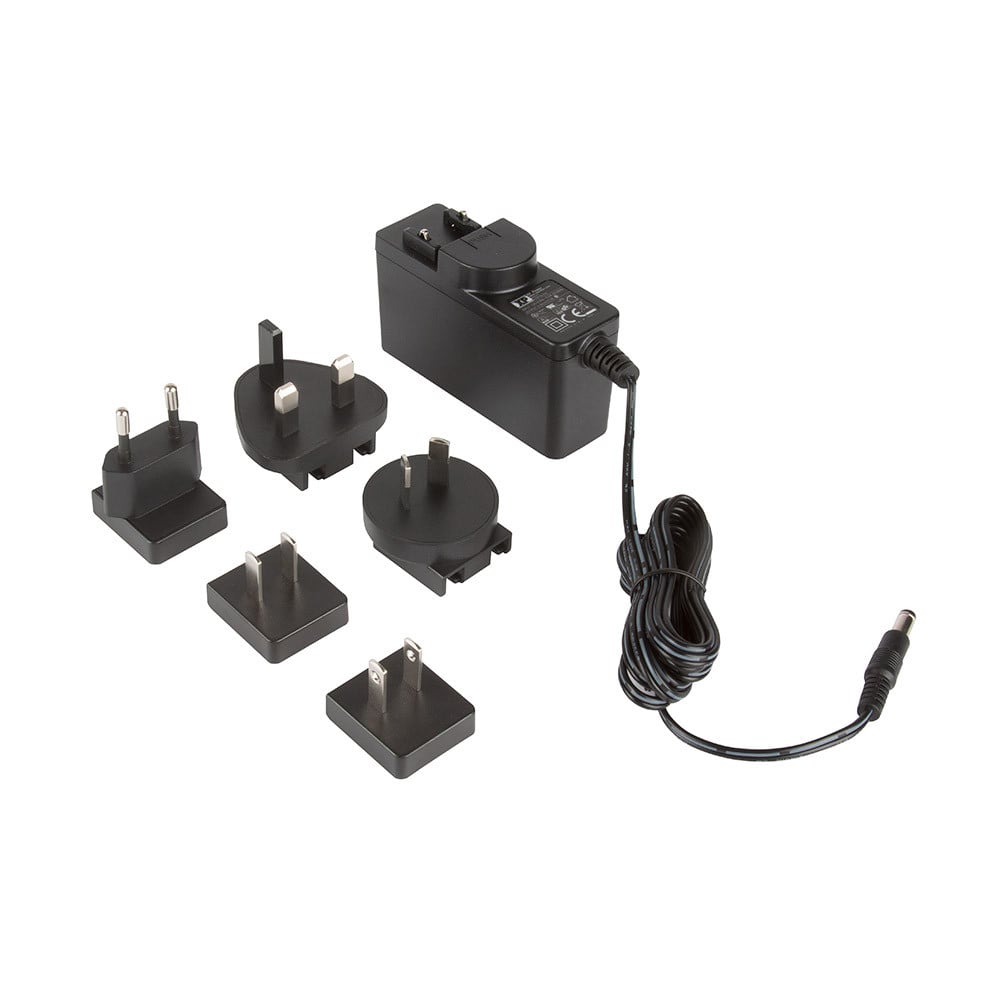

ACM24 Series

AC-DC Power Supplies

ACM24 Series

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Medical and ITE Approvals
  • Interchangeable Mains Connectors
  • Optional White Versions
  • Output Voltages from 5 V to 12 V
  • Class II Construction
  • 3 Years Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
ACM24 ACM24US09 24 W Single Phase 9V 2.33A
ACM24 ACM24US12 24 W Single Phase 12V 2A
ACM24 ACM24US15 24 W Single Phase 15V 1.6A
ACM24 ACM24US18 24 W Single Phase 18V 1.33A
ACM24 ACM24US24 24 W Single Phase 24V 1A



ACM24 (body only): 3.46 x 1.18 x 2.24 in (88.0 x 30.0 x 57.0 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2 Class A


87% typical

Operating Temperature

0 °C to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C


4000 VAC Input to Output, 2 x MOPP

Worldwide Safety Approvals

IEC60950-1, IEC62368-1, IEC60601-1

European Safety Approvals

EN60950-1, EN62368-1, EN60601-1

US Safety Approvals

UL60950-1, UL62368-1, ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601

Other Safety Approvals

EN55032 Level B conducted & radiated, CE (Meets all applicable directives), UKCA (Meets all applicable legislation)


EN55032 Level B conducted & radiated
