AC-DC Power Supplies
ACM36 Series

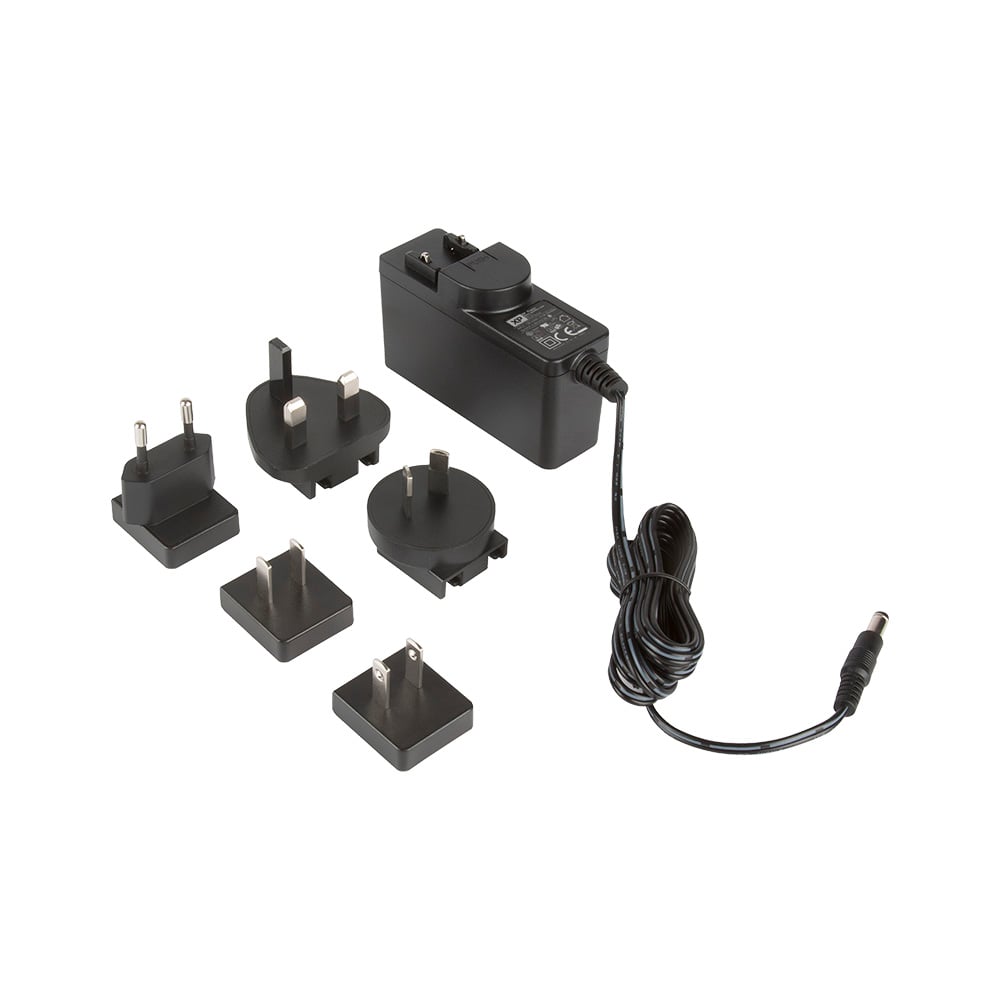

36W plugtop AC-DC power supplies with medical (2 x MOPP) & ITE approvals
The ACM36 series of wall plug adaptors comply with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive medical (2 x MOPP) and ITE & industrial electronics applications while maintaining industry leading performance.
datasheet Contact us
Features
- Energy Efficiency Level VI
- European CoC Tier 2
- Medical and ITE Approvals
- Interchangeable Mains Connectors
- Optional White Versions
- Output Voltages from 5V to 12VDC
- Class II Construction
- 3 Years Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
ACM36US09 | 36 W | Single Phase | 9V | 4A |
|
|
|
|
|
ACM36US12 | 36 W | Single Phase | 12V | 3A |
|
|
|
|
|
ACM36US15 | 36 W | Single Phase | 15V | 2.4A |
|
|
|
|
|
ACM36US18 | 36 W | Single Phase | 18V | 2A |
|
|
|
|
|
ACM36US24 | 36 W | Single Phase | 24V | 1.5A |
|
|
|
|
|
ACM36US30 | 36 W | Single Phase | 30V | 1.2A |
|
|
|
|
|
ACM36US36 | 36 W | Single Phase | 36V | 1A |
|
|
|
Specifications
Dimensions
ACM36 (body only): 3.81 x 1.3 x 2.34 in (96.7 x 33.0 x 59.5 mm)
Input Voltage
90 to 264 VAC
No Load Input Power
75 mW
Harmonic Currents
EN61000-3-2 Class A
Efficiency
88% typical
Operating Temperature
0 °C to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
4000 VAC Input to Output, 2 x MOPP
Worldwide Safety Approvals
IEC60950-1, IEC62368-1, IEC60601-1
European Safety Approvals
EN60950-1, EN62368-1, EN60601-1
US Safety Approvals
UL60950-1, UL62368-1, ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601
Other Safety Approvals
EN55032 Level B conducted & radiated, CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55032 Level B conducted & radiated
