VER36 Series

AC-DC Power Supplies

VER36 Series

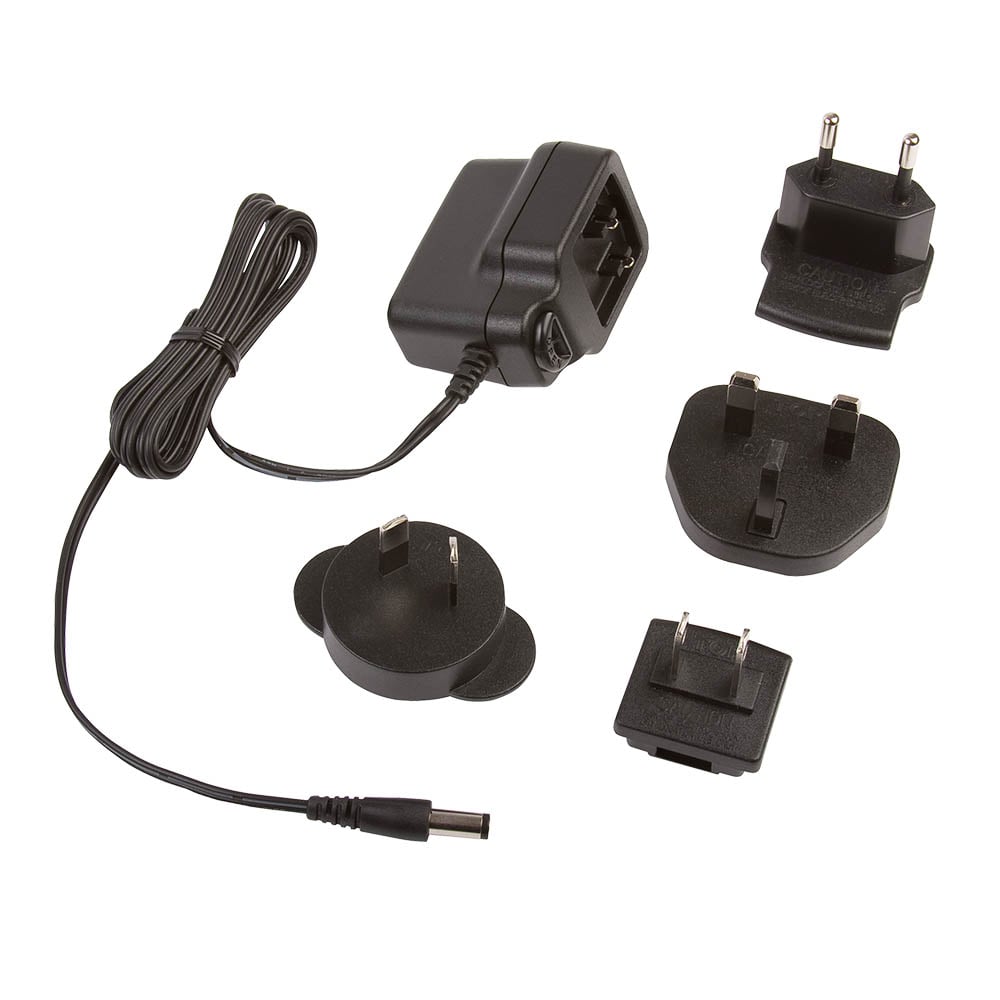

36W plugtop AC-DC power supplies with ITE approvals, supplied complete with interchangeable US, UK, EU & AU plugs

The VER36 series of 36W class II wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency, low no load power consumption and are limited power source (LPS) approved.

Supplied complete with interchangeable US, UK, EU & AU mains plugs, the DC lead has a 5.5mm x 2.5mm centre positive barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.



datasheet Contact us

Features

  • Energy efficiency level VI
  • European CoC tier 2
  • Interchangeable mains connectors included
  • Universal input
  • Output voltages from 12.0V to 24.0VDC
  • Class II construction
  • Limited power source (LPS) approved
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VER36 VER36US120-JA 36 W Single Phase 12V 3A
VER36 VER36US150-JA 36 W Single Phase 15V 2.4A
VER36 VER36US180-JA 36 W Single Phase 18V 2A
VER36 VER36US240-JA 36 W Single Phase 24V 1.5A

Specifications


Dimensions

VER (body only): 3.72 x 1.85 x 1.71‚ (94.5 x 47.0 x 43.9 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2, class A

Efficiency

85% Typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input

Operating Temperature

0 to +60 °C Derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL/cUL60950-1, approved as limited power source (LPS), UL62368-1

Other Safety Approvals

China Compulsory Certification, GB4943, AU/NZ 60950.1

EMC

EN55022 level B conducted & radiated
