VEL36 Series

AC-DC Power Supplies

VEL36 Series

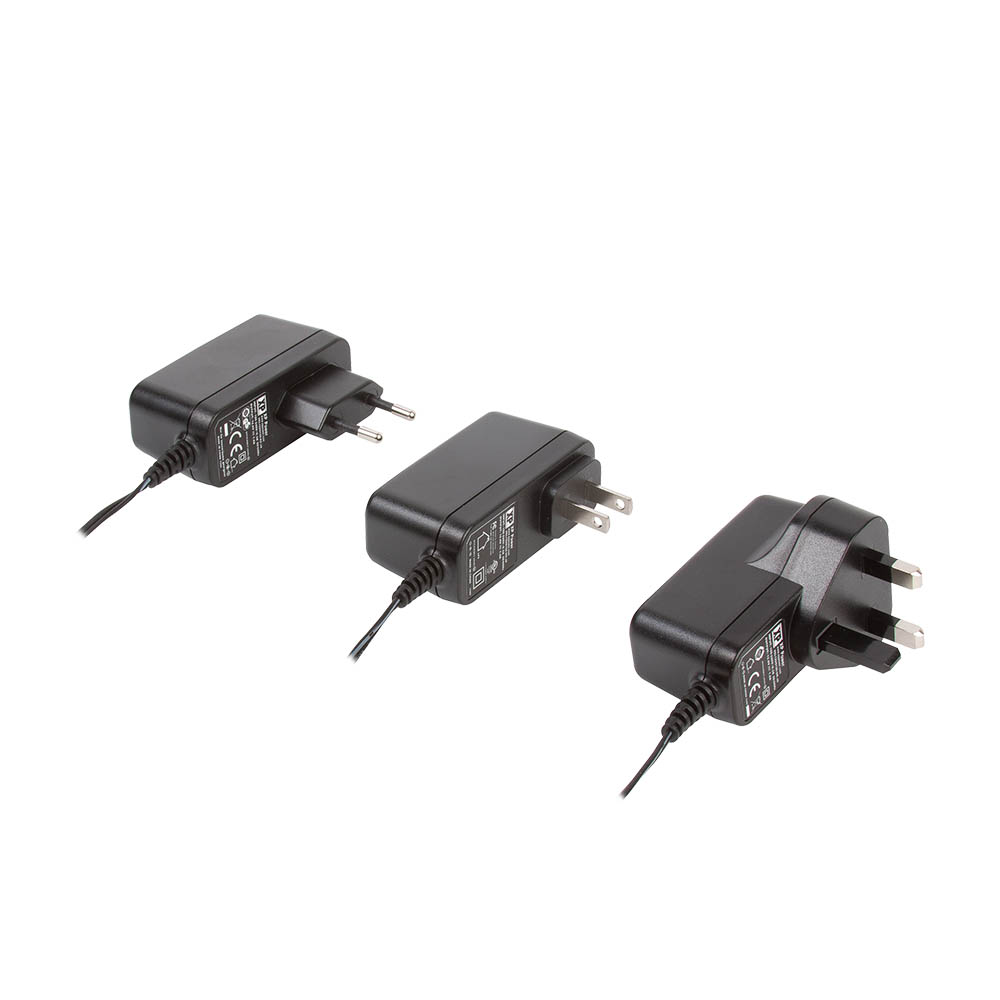

36W plugtop AC-DC power supplies with ITE approvals

The VEL36 series of wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency and extremely low no load power consumption.

Available in US, UK, EU & AU plug formats, the DC lead has a 5.5mm x 2.5mm centre positive barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.



datasheet Contact us

Features

  • Energy efficiency level VI
  • European CoC tier 2
  • Fixed mains connectors
  • Universal input
  • Output voltages from 12.0V to 24.0VDC
  • Class II construction
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VEL36 VEL36US120 36 W Single Phase 12V 3A
VEL36 VEL36US150 36 W Single Phase 15V 2.4A
VEL36 VEL36US180 36 W Single Phase 18V 2A
VEL36 VEL36US240 36 W Single Phase 24V 1.5A

Specifications


Dimensions

VEL (body only): -US: 3.70 x 1.38 x 1.83‚ (94.0 x 35.0 x 46.6 mm) EU: 3.70 x 1.38 x 2.55‚ (94.0 x 35.0 x 64.8 mm) UK: 3.70 x 1.95 x 2.11‚ (94.0 x 49.6 x 53.6 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2, class A

Efficiency

87% Typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input

Operating Temperature

0 to +60 °C, derate from 100% load at 45 °C to 50% load at 60 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL/cUL60950-1, approved as limited power source (LPS), UL62368-1

Other Safety Approvals

China Compulsory Certification, GB4943, AU/NZ 60950.1

EMC

EN55032 level B conducted & radiated
