VER24 Series

AC-DC Power Supplies

VER24 Series

  • Energy Efficiency Level VI
  • European CoC Tier 2

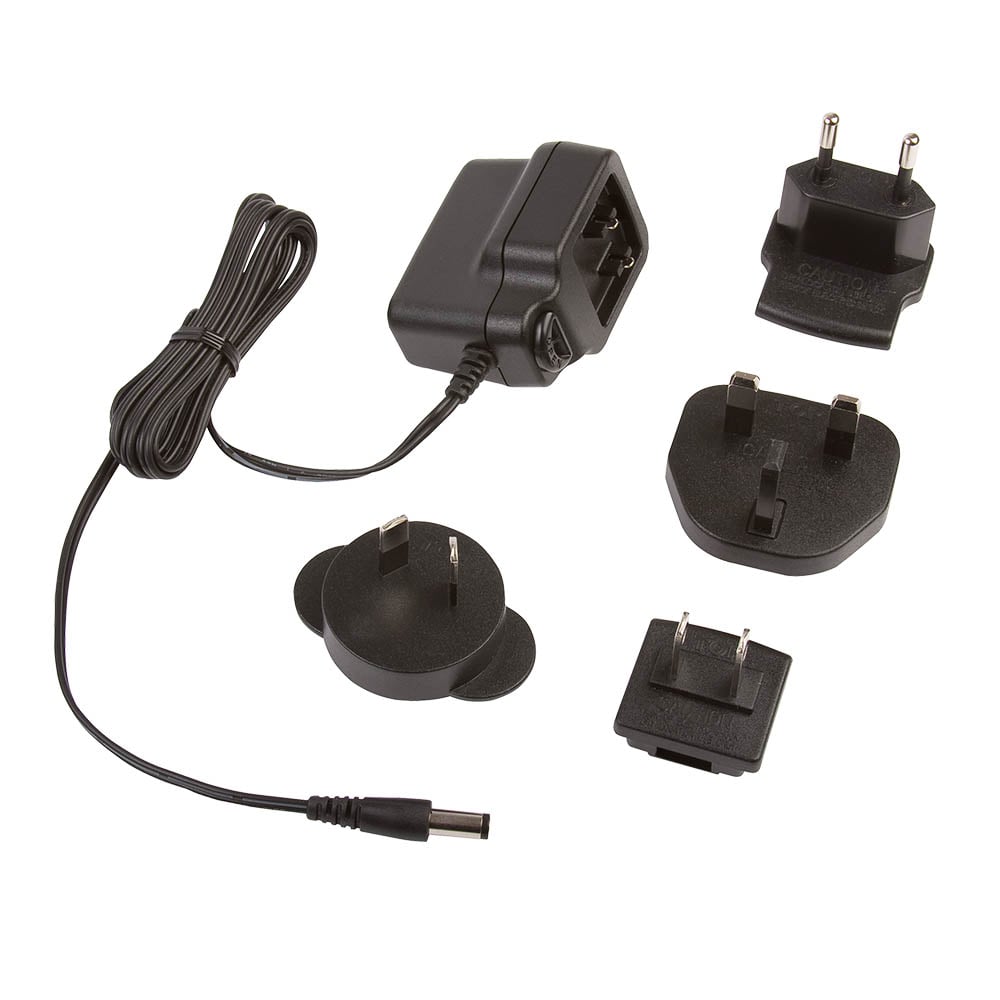

  • Interchangeable Mains Connectors Included
  • Universal Input
  • Output Voltages from 12.0 V to 24.0 V
  • Class II Construction
  • Low Cost
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VER24 VER24US120-JA 24 W Single Phase 12V 2A
VER24 VER24US150-JA 24 W Single Phase 15V 1.5A
VER24 VER24US180-JA 24 W Single Phase 18V 1.32A
VER24 VER24US240-JA 24 W Single Phase 24V 1A

Specifications


Dimensions

VER (body only): 3.54 x 1.69 x 1.68‚ (90.5 x 42.0 x 42.7 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2 class A

Efficiency

85%, typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input

Operating Temperature

0 to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1

European Safety Approvals

EN60950-1

US Safety Approvals

UL/cUL60950-1, approved as limited power source (LPS)

Other Safety Approvals

China Compulsory Certification, GB4943

EMC

EN55032 level B conducted & radiated
