AC-DC Power Supplies
VEL24 Series

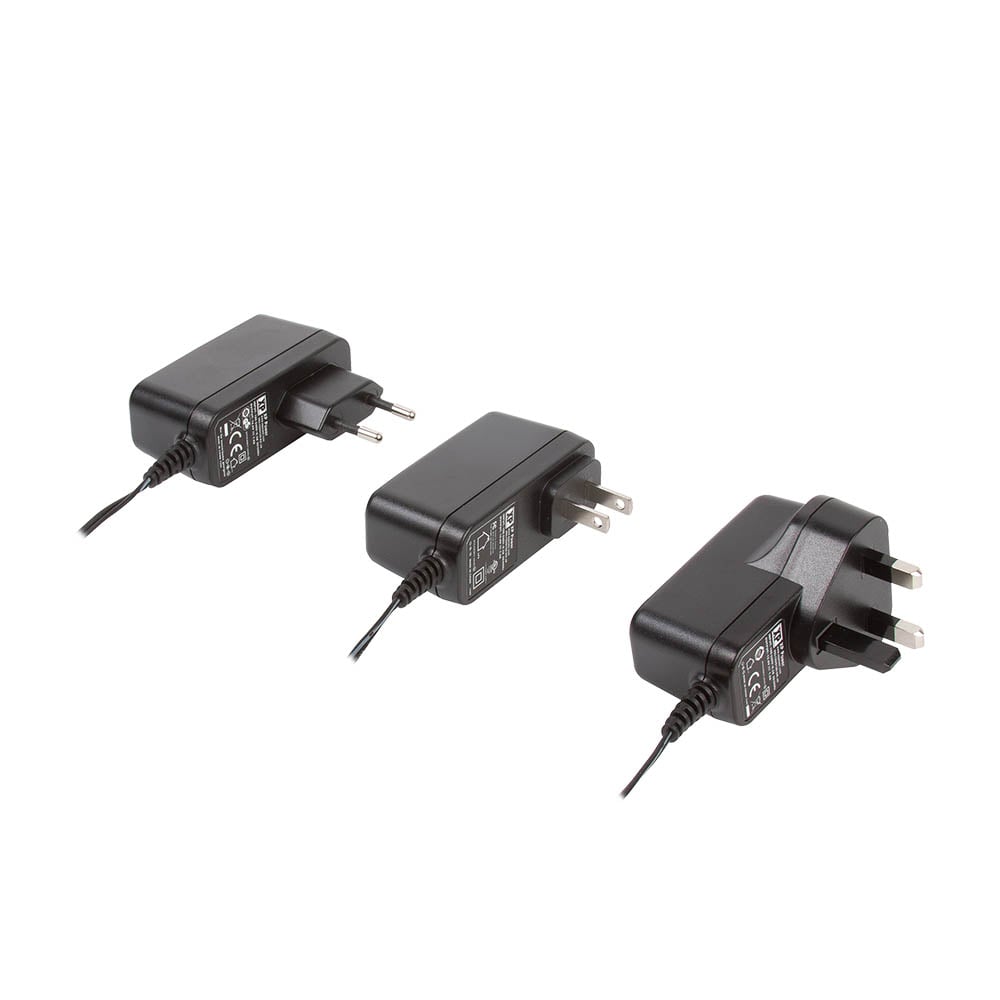

24W plugtop AC-DC power supplies with ITE approvals
The VEL24 series of wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency and extremely low no load power consumption.
Available in US, UK, EU & AU plug formats, the DC lead has a 5.5mm x 2.5mm centre positive barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.
datasheet Contact us
Features
- Energy efficiency level VI
- European CoC tier 2
- Fixed Mains Connectors
- Universal input
- Output voltages from 12.0V to 24.0VDC
- Class II construction
- Low cost
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VEL24US120 | 24 W | Single Phase | 12V | 2A |
|
|
|
|
|
VEL24US150 | 24 W | Single Phase | 15V | 1.6A |
|
|
|
|
|
VEL24US180 | 24 W | Single Phase | 18V | 1.32A |
|
|
|
|
|
VEL24US240 | 24 W | Single Phase | 24V | 1A |
|
|
|
Specifications
Dimensions
VEL (body only): -US: 3.54 x 1.34 x 1.87‚ (90.0 x 34.0 x 47.5 mm) EU: 3.54 x 1.34 x 2.26‚ (90.0 x 34.0 x 57.57 mm) UK: 3.54 x 1.95 x 1.96‚ (90.0 x 49.5 x 50.0 mm)
Input Voltage
90 to 264 VAC
No Load Input Power
75 mW
Harmonic Currents
EN61000-3-2, class A
Efficiency
85 %, typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input
Operating Temperature
0 to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
3000 VAC Input to Output
Worldwide Safety Approvals
IEC60950-1, IEC62368-1
European Safety Approvals
EN60950-1, EN62368-1
US Safety Approvals
UL62368-1
Other Safety Approvals
China Compulsory Certification, GB4943, AU/NZ 60950.1
EMC
EN55032 level B conducted & radiated
