BCT40
Single regulated outputs from 3.3V to 24VDC
Dual regulated outputs ±12V & ±15VDC
4:1 wide input voltage range
25.4 x 25.4mm (1" x 1") package
2kVDC isolation
UL62368-1 & EN62368-1 safety approvals
Continuous short circuit protection
Remote on/off
-40°C to +105°C operation temperature
3 year warranty
FLXPro
1kW low line to 1.3kW high line fan cooled
4 selectable outputs from 9VDC to 66VDC
Wide output adjustment range
Input range 85 to 264VAC
Up to 23.2W/in³ power density
Medical (2 x MOPP) & ITE approvals
Fully digital architecture incorporating iPSU Intelligent Power technology
Intuitive UI for configuration, monitoring and control
Intelligent configurable fan speed
Efficiency up to 93%
SEMI F47 compliant
Full power up to +50°C
3 year warranty

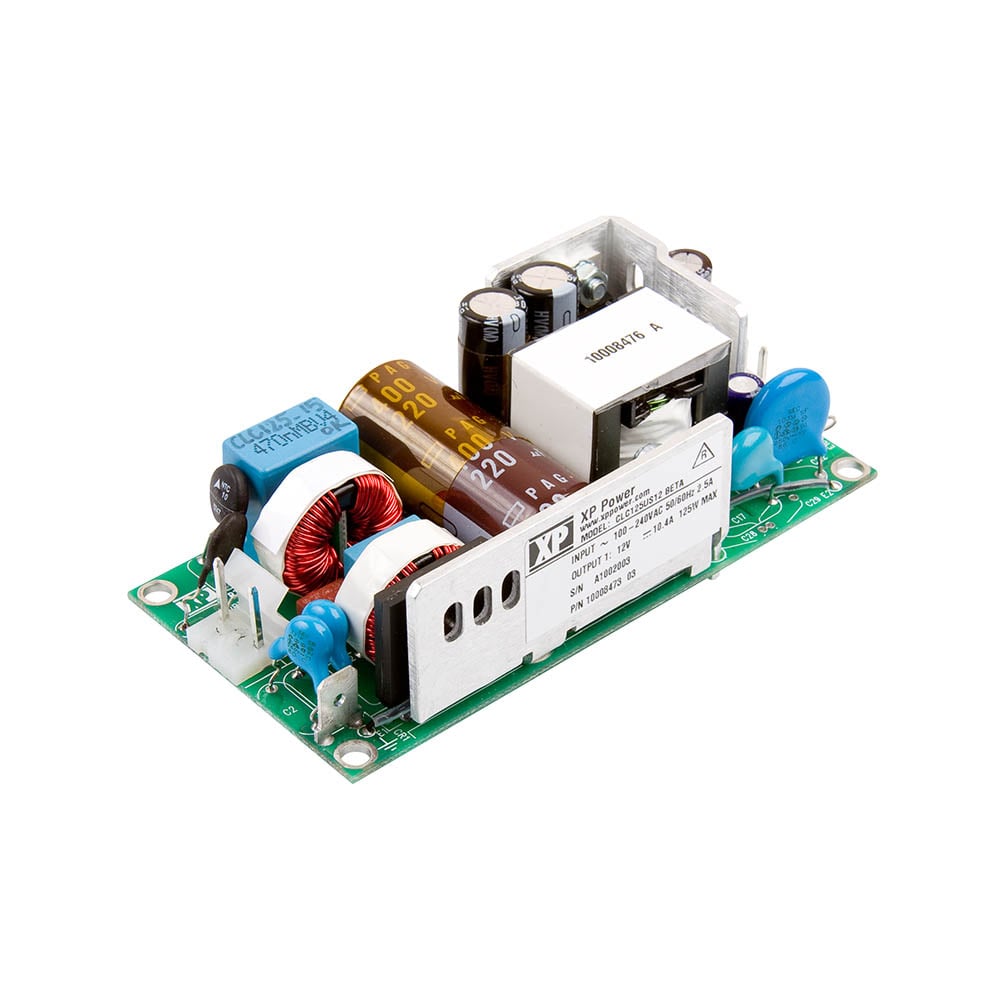

CLC125
- 125W forced air cooled rating
- Low profile 1.25”
- Industry standard 2" x 4" & 3" x 5" package sizes
- 12V fan supply
- Optional ORing diode
- <0.5W no load input power
- 3 year warranty
HDL3000-HV
- 3kW fan cooled
- Single phase input 90 to 264VAC
- Nominal output voltages 150/200/250/300/400VDC
- Programmable output voltage (0-105%)
- Programmable output current (0-105%)
- ITE safety agency approvals
- Class A conducted & radiated emissions
- High efficiency, up to 93%
- Intelligent fan speed control
- Fully featured signals & controls
- Digital protocol: I²C
- 5VDC 0.5A or 9VDC 0.3A standby
- -20°C to +60°C operating temperature
- Full power to +50°C
- 3 year warranty
DNR960TS
- Three Phase AC Input
- Up to 93% Efficiency
- Wide Adjustment Range
- Full Power -40 °C to +60 °C
- Rugged Design for Industrial Applications
- Single Phase Input Operation (340 575 VAC)
- 3 Year Warranty
DNR480TS
- Three Phase AC Input
- Up to 93% Efficiency
- Wide Adjustment Range
- Full Power -40 °C to +60 °C
- Rugged Design for Industrial Applications
- Single Phase Input Operation (340 575 VAC)
- 3 Year Warranty
VFT80
- 80W fan cooled 60W convection cooled
- 4” x 2” footprint, 1.15" profile
- Regulated single outputs from 5V to 24VDC
- Input range 85 to 264VAC
- Peak load capability
- High efficiency
- <0.5W no load input power
- 1 year warranty
VET36
- Energy efficiency level VI
- European CoC tier 2
- Universal input
- Output voltages from 12.0V to 24.0VDC
- Class II construction
- Low cost
VET30
- Energy efficiency level VI
- European CoC tier 2
- Universal input
- Output voltages from 12.0 V to 24.0VDC
- Class II construction
- Low cost
VET24
- Energy efficiency level VI
- European CoC tier 2
- Universal input
- Output voltages from 12.0V to 24.0VDC
- Class II construction
- Low cost
