AC-DC Power Supplies

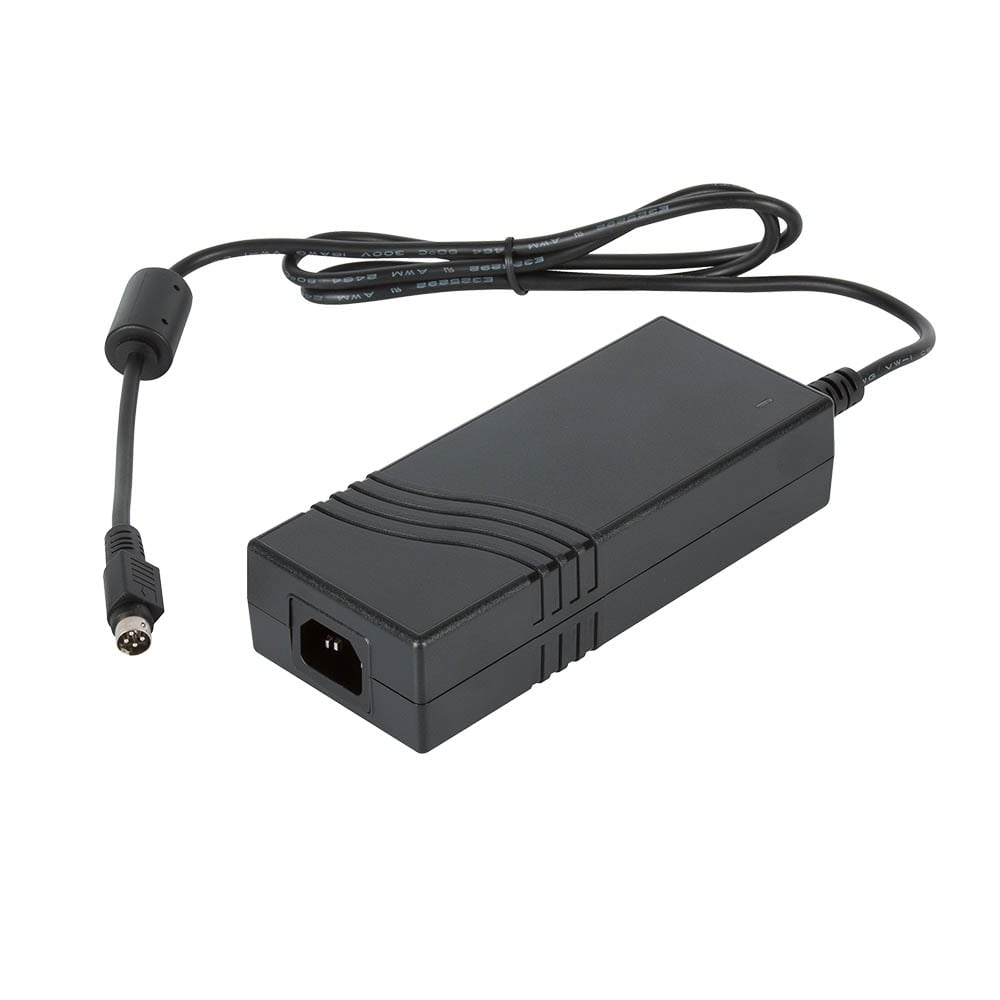

VES150 Series
- Energy Efficiency Level VI
- European CoC Tier 2
- High Power Density
- Single Outputs from 12 V to 24 V
- <0.15 W Standby Power
- China Compulsory Certification (CCC) Qualified
- -10 °C to 60 °C Operation
- Low Cost
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VES150PS12 | 150 W | Single Phase | 12V | 12.5A |
|
|
|
|
|
VES150PS15 | 150 W | Single Phase | 15V | 10A |
|
|
|
|
|
VES150PS19 | 150 W | Single Phase | 19V | 7.8A |
|
|
|
|
|
VES150PS24 | 150 W | Single Phase | 24V | 6.25A |
|
|
|
|
|
VES150PS48 | 150 W | Single Phase | 48V | 3.12A |
|
|
|
Specifications
Dimensions
VES150: 6.66 x 2.79 x 1.56‚ (169.2 x 70.8 x 39.5 mm)
Input Voltage
90 to 264 VAC
No Load Input Power
0.15 W max
Harmonic Currents
EN61000-3-2 Class A
Efficiency
89% (see datasheet)
Operating Temperature
-10 °C to +60 °C. Derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
3000 VAC Input to Output 1500 VAC Input to Ground Output return is connected to input ground
Worldwide Safety Approvals
IEC60950-1, IEC62368-1
European Safety Approvals
EN60950-1, EN62368-1
US Safety Approvals
UL60950-1, UL62368-1, China Compulsory Certification (CCC) Qualified AS/NZS60950.1.2015 + A1
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55022 Level B conducted & radiated
