# Q Series

**
0.5W miniature DC-HVDC converters with outputs 0 - 100VDC to 0 - 10kVDC
**

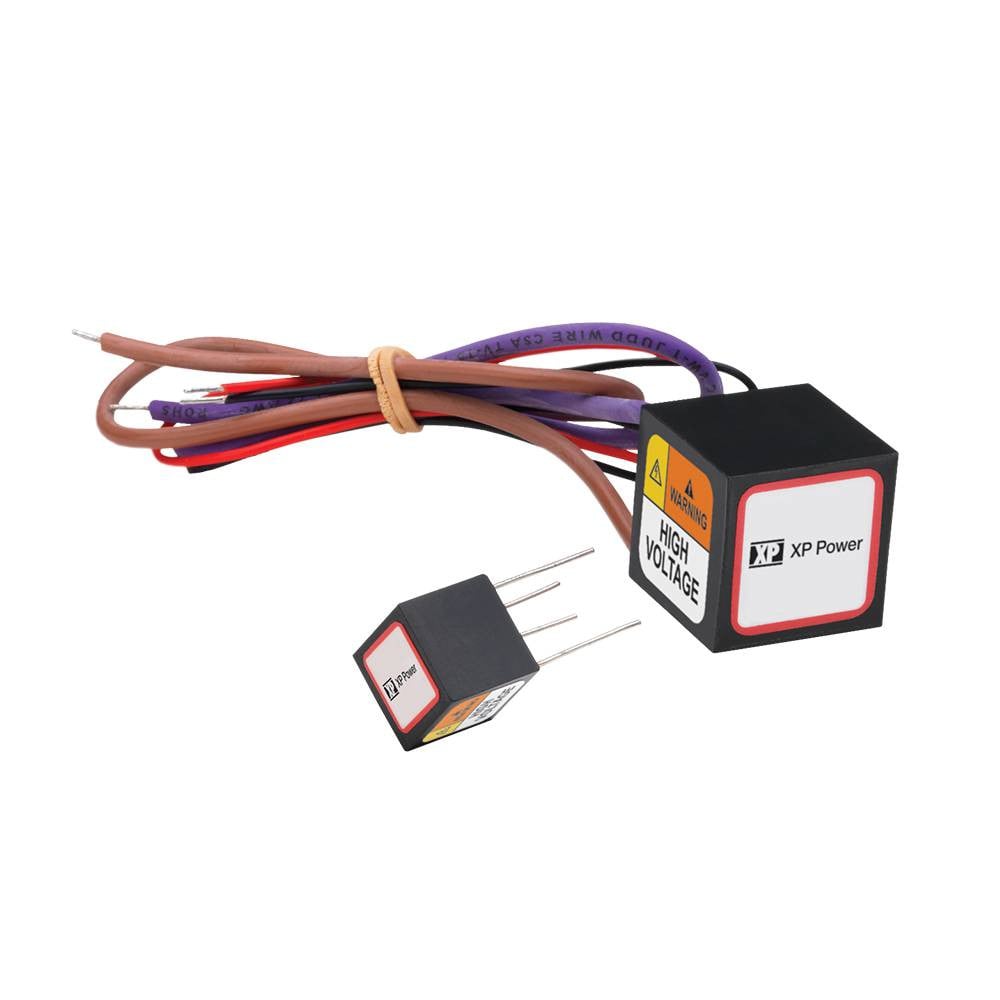

The Q Series is a broad line of ultra-miniature, high reliability DC to HVDC converters supplying up to 5kV in only 0.125 cubic inches and up to 10kV in only 0.614 cubic inches. Input voltage can be +5V, +12V, +15V, or +24V. The output is directly proportional to the input voltage and is linear from <0.7V input to maximum input voltage, allowing for an adjustable output voltage. Output is load dependent. Isolation permits <±500V bias on output return and output power is 0.5W.

No external components or minimum load are required. Variations include dual output (center-tap), a separate control pin, and an external shield. These component-sized converters operate over a wide temperature range making them ideal for portable, battery powered equipment requiring minimal size and weight.

## Features

- Output voltages up to 10kVDC
- Reversible, positive or negative polarity
- Dual output versions
- Isolated output voltage proportional to input voltage
- Input voltage +5V, +12V & +24VDC
- Low turn on voltage: <0.7VDC
- Very low I/O leakage current
- Low noise, quasi-sinewave resonant oscillator
- MTBF>3Mhrs
- 3 year warranty

Image | Model Name | Power | Output Voltage | Input Voltage | Output Regulation | Datasheet | Stock Check | RFQ |
---|---|---|---|---|---|---|---|---|

Q01-5 | 0.5W | 0 to 100V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q01-5C | 0.5W | 0 to 100V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q01-12 | 0.5W | 0 to 100V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q01-12S | 0.5W | 0 to 100V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q01-24 | 0.5W | 0 to 100V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q015-5 | 0.5W | 0 to 150V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q015-12CTRS | 0.5W | 0 to 150V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-5 | 0.5W | 0 to 200V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-5CS | 0.5W | 0 to 200V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-5TR | 0.5W | 0 to 200V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-12 | 0.5W | 0 to 200V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-12CTS | 0.5W | 0 to 200V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q02-24 | 0.5W | 0 to 200V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q02CT-24R | 0.5W | 0 to 200V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q025-5 | 0.5W | 0 to 250V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q025-5C | 0.5W | 0 to 250V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q025-5RS | 0.5W | 0 to 250V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q025-12 | 0.5W | 0 to 250V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q03-5 | 0.5W | 0 to 300V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q03-12 | 0.5W | 0 to 300V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q04-5 | 0.5W | 0 to 400V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q04-5RS | 0.5W | 0 to 400V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q04-12 | 0.5W | 0 to 400V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q04CT-12 | 0.5W | 0 to 400V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q04-24 | 0.5W | 0 to 400V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q04-24TR | 0.5W | 0 to 400V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q045-12 | 0.5W | 0 to 450V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-5 | 0.5W | 0 to 500V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-5C | 0.5W | 0 to 500V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-5CTRS | 0.5W | 0 to 500V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-12 | 0.5W | 0 to 500V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-12T | 0.5W | 0 to 500V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-15 | 0.5W | 0 to 500V | 0.7 to 15VDC | Proportional | Datasheet | Stock | RFQ | |

Q05-24 | 0.5W | 0 to 500V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q06-5 | 0.5W | 0 to 600V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q06-12 | 0.5W | 0 to 600V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q06-24 | 0.5W | 0 to 600V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q07-5 | 0.5W | 0 to 700V | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q07-12 | 0.5W | 0 to 700V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q09-12 | 0.5W | 0 to 900V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q09-12T | 0.5W | 0 to 900V | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q09-24R | 0.5W | 0 to 900V | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-5 | 0.5W | 0 to 1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-5CTS | 0.5W | 0 to 1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-5RS | 0.5W | 0 to 1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-5TS | 0.5W | 0 to 1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10N-5 | 0.5W | 0 to -1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10N-5C | 0.5W | 0 to -1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10N-5CS | 0.5W | 0 to -1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10N-5S | 0.5W | 0 to -1kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-12 | 0.5W | 0 to 1kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-12CTS | 0.5W | 0 to 1kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q10N-12 | 0.5W | 0 to -1kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q10-24R | 0.5W | 0 to 1kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q12-5 | 0.5W | 0 to 1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12-5RS | 0.5W | 0 to 1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12-5TS | 0.5W | 0 to 1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-5 | 0.5W | 0 to -1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-5RS | 0.5W | 0 to -1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-5TS | 0.5W | 0 to -1.2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q12-12 | 0.5W | 0 to 1.2kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-12 | 0.5W | 0 to -1.2kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-15 | 0.5W | 0 to -1.2kV | 0.7 to 15VDC | Proportional | Datasheet | Stock | RFQ | |

Q12N-24C | 0.5W | 0 to -1.2kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-5 | 0.5W | 0 to 1.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-5S | 0.5W | 0 to 1.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q15N-5 | 0.5W | 0 to -1.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q15N-5S | 0.5W | 0 to -1.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q15N-5T | 0.5W | 0 to -1.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-12 | 0.5W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-12C | 0.5W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-12S | 0.5W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-12T | 0.5W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-12TS | 0.5W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15N-12C | 0.5W | 0 to -1.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q15-24 | 0.5W | 0 to 1.5kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q15N-24 | 0.5W | 0 to -1.5kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q20-5 | 0.5W | 0 to 2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q20-5RS | 0.5W | 0 to 2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q20-5TR | 0.5W | 0 to 2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q20N-5 | 0.5W | 0 to -2kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q20-12 | 0.5W | 0 to 2kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q20N-12 | 0.5W | 0 to -2kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q20-24 | 0.5W | 0 to 2kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q25-5 | 0.5W | 0 to 2.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q25-5T | 0.5W | 0 to 2.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q25N-5TR | 0.5W | 0 to -2.5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q25-12TR | 0.5W | 0 to 2.5kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q25-24 | 0.5W | 0 to 2.5kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q30-5 | 0.5W | 0 to 3kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q30N-5 | 0.5W | 0 to -3kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q30-12 | 0.5W | 0 to 3kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q30N-12 | 0.5W | 0 to -3kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q30-24R | 0.5W | 0 to 3kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q30N-24R | 0.5W | 0 to -3kV | 0.7 to 24VDC | Proportional | Datasheet | Stock | RFQ | |

Q40-5 | 0.5W | 0 to 4kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q40N-5 | 0.5W | 0 to -4kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q40N-5T | 0.5W | 0 to -4kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q40-12 | 0.5W | 0 to 4kV | 0.7 to 12VDC | Proportional | Datasheet | Stock | RFQ | |

Q50-5 | 0.5W | 0 to 5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q50-5C | 0.5W | 0 to 5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q50-5CTS | 0.5W | 0 to 5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q50N-5 | 0.5W | 0 to -5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q50N-5T | 0.5W | 0 to -5kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q60-5 | 0.5W | 0 to 6kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q60-5S | 0.5W | 0 to 6kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q60N-5 | 0.5W | 0 to -6kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q80-5 | 0.5W | 0 to 8kV | 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q101-5 | 0.5W | 0 to 10kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q101N-5 | 0.5W | 0 to -10kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ | |

Q101N-5RS | 0.5W | 0 to -10kV | 0.7 to 5VDC | Proportional | Datasheet | Stock | RFQ |
