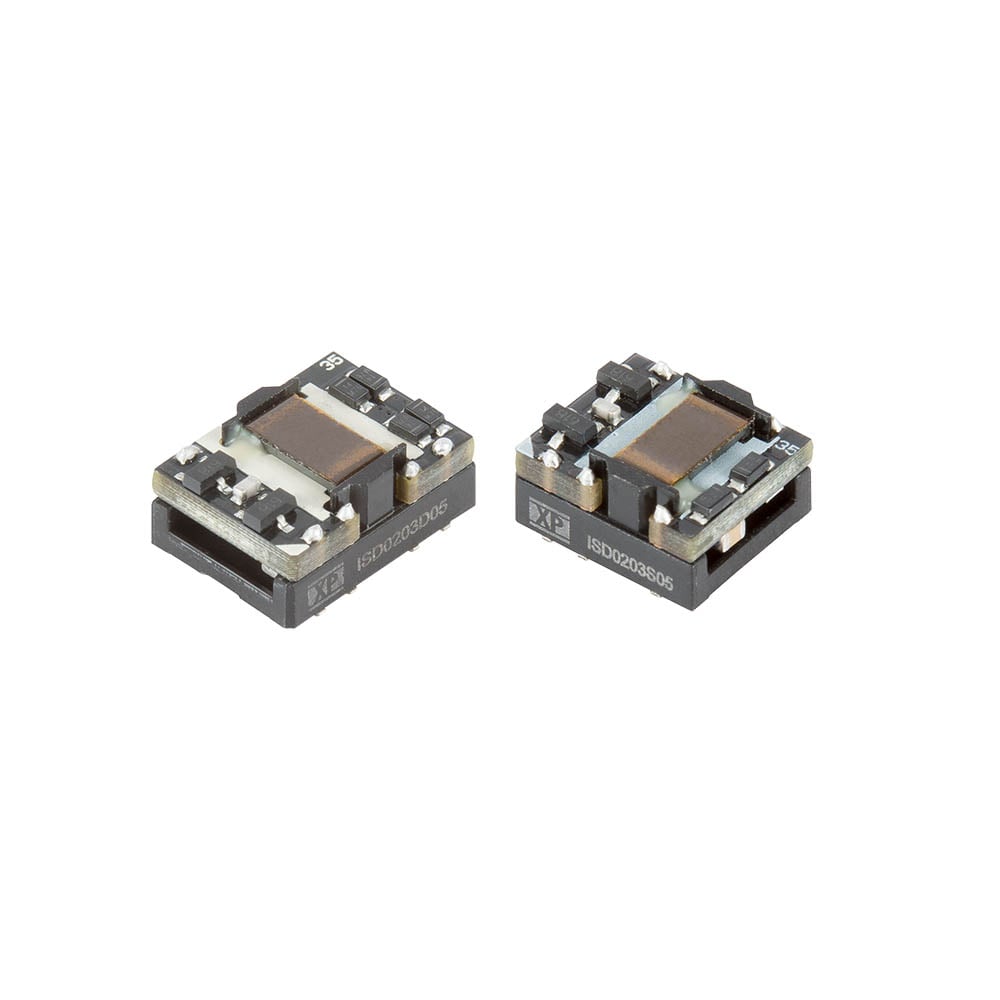

ISD02 Series

DC-DC Converters

ISD02 Series

  • Single & dual outputs
  • ±10% input range
  • Ultra-compact SMD package
  • 4.2kV isolation qualification tested
  • 250 VAC/400 VDC Working Voltage
  • Class B conducted emissions (with minimal additional components)
  • Tape & reel package available
  • -40°C to +105°C operating temperature
  • Full power to +85°C
  • MTBF >6.5MHrs at 25°C (MIL-HDBK-21F, +25°C GB)
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
ISD02 ISD0203S3V3 2 W 2.97 to 3.63 VDC 3.3V 0.5A
ISD02 ISD0203S05 2 W 2.97 to 3.63 VDC 5V 0.4A
ISD02 ISD0203D03 2 W 2.97 to 3.63 VDC 3.3V, -3.3V 0.303A, -0.303A
ISD02 ISD0203D05 2 W 2.97 to 3.63 VDC 5V, -5V 0.2A, -0.3A
ISD02 ISD0205S3V3 2 W 4.5 to 5.5 VDC 3.3V 0.5A
ISD02 ISD0205S05 2 W 4.5 to 5.5 VDC 5V 0.4A
ISD02 ISD0205D03 2 W 4.5 to 5.5 VDC 3.3V, -3.3V 0.303A, -0.303A
ISD02 ISD0205D05 2 W 4.5 to 5.5 VDC 5V, -5V 0.2A, -0.3A

Specifications


Dimensions

ISD02xxS: 0.5 x 0.44 x 0.27‚ (12.7 x 11.2 x 6.85 mm) ISD02xxD: 0.6 x 0.44 x 0.27‚ (15.24 x 11.2 x 6.85 mm)

Input Voltage

2.97-3.63 Vdc 4.5-5.5 Vdc

Efficiency

78% (see datasheet)

Operating Temperature

-40 to +105 °C (see datasheet)

Isolation

Input to Output: 4200 VDC, 60 s. Working voltage 250 VACrms/400 VDC

Worldwide Safety Approvals

Designed to meet IEC60950-1

European Safety Approvals

Designed to meet EN62368-1

US Safety Approvals

Designed to meet UL60950-1, cUL62368-1

EMC

Conducted: EN55032, Class B (see datasheet) Radiated: EN55032, Class B (see datasheet)
