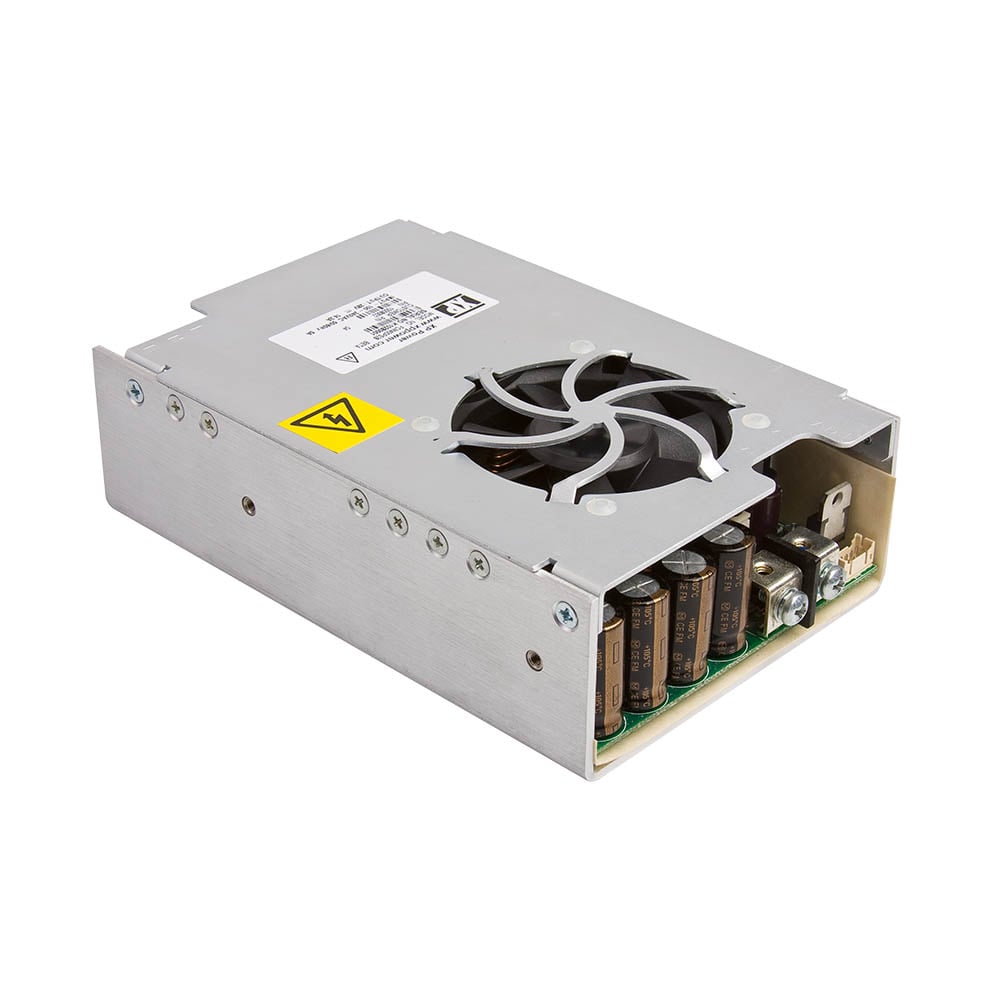

FCM400 Series

AC-DC Power Supplies

FCM400 Series

  • 400 W Continuous, 600 W Peak
  • IT and Medical Approvals
  • 80 V 275 VAC Operation
  • Low Noise Fan
  • Screw Terminals
  • 5 V Standby, AC OK and Remote On/Off
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
FCM400 FCM400PS12 400 W Single Phase 12V 33.3A
FCM400 FCM400PS15 400 W Single Phase 15V 26.6A
FCM400 FCM400PS24 400 W Single Phase 24V 16.6A
FCM400 FCM400PS28 400 W Single Phase 28V 14.2A
FCM400 FCM400PS36 400 W Single Phase 36V 11.1A
FCM400 FCM400PS48 400 W Single Phase 48V 8.3A

Specifications


Dimensions

FCM: 6.00 x 4.00 x 1.93 in (152.4 x 101.6 x 49.0 mm)

Input Voltage

80-275 VAC (see datasheet)

Harmonic Currents

EN61000-3-2, class A EN61000-3-2, class C for loads ?50%

Efficiency

85% typical

Operating Temperature

-10 °C to +70 °C, derate linearly from +50 °C at 2.5% / °C to 50% load at +70 °C

Isolation

4000 VAC Input to Output, 2 x MOPP 1500 VAC Input to Ground 1 x MOPP 500 VAC Output to Ground

Worldwide Safety Approvals

IEC60950-1, IEC60601-1

European Safety Approvals

EN60950-1, EN60601-1, including risk management

US Safety Approvals

UL60950-1, CSA 22.2 No.60601-1, ANSI/AAMI ES60601-1

EMC

EN55011/22 level B conducted EN55011/22 level A radiated
