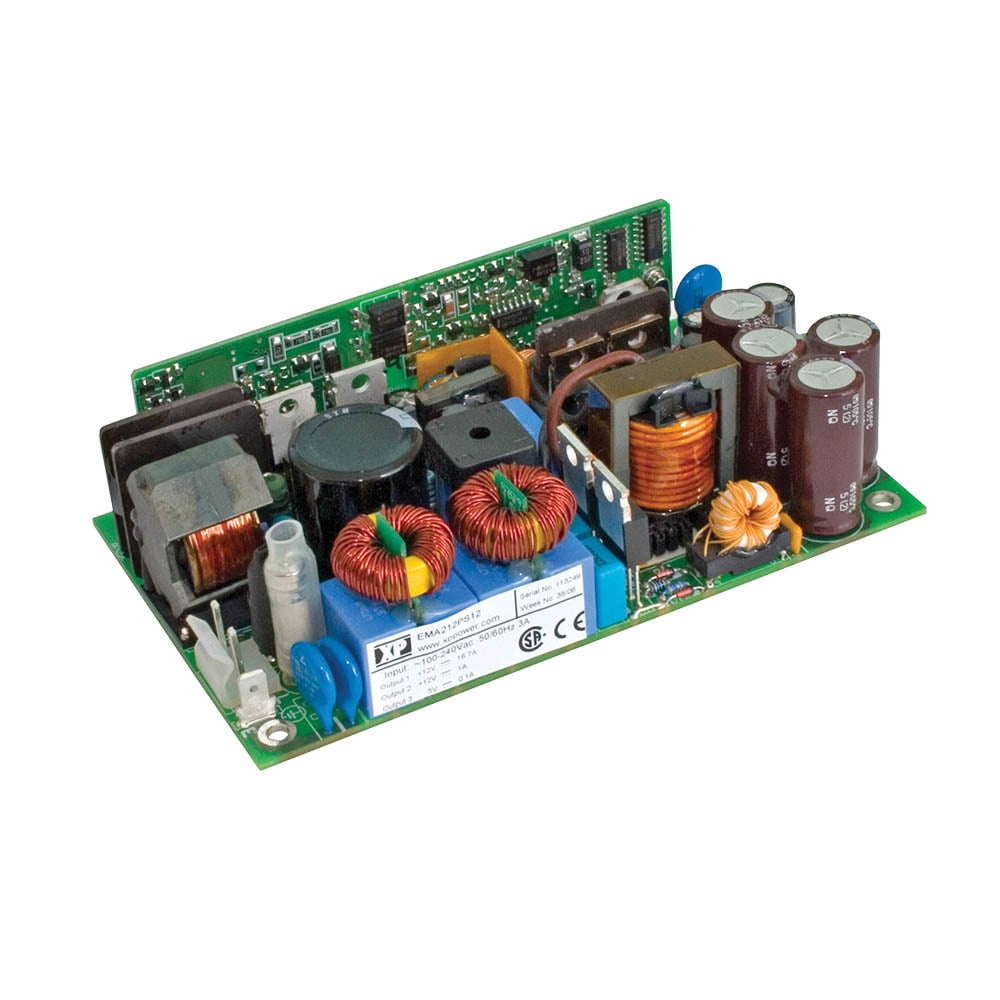

EMA212 Series

AC-DC Power Supplies

EMA212 Series

  • High Power Density - 10.6 W/cubic in
  • Industry Standard 3 x 5 Footprint
  • Up to 90% Efficiency
  • 5 V Standby & 12 V Fan Outputs
  • Remote On/Off & Power Good Signal
  • 48 VDC Input Version Available (DMA212)
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
EMA212 EMA212PS12 212 W Single Phase 12V 16.7A
EMA212 EMA212PS24 212 W Single Phase 24V 8.3A
EMA212 EMA212PS48 212 W Single Phase 48V 4A

Specifications


Dimensions

EMA212: 5.00 x 3.00 x 1.28 in (127.0 x 76.2 x 32.5 mm)

Input Voltage

90-264 VAC

Harmonic Currents

EN61000-3-2, class A

Efficiency

88% typical

Operating Temperature

-10 °C to +70 °C, derate linearly from +50 °C at 2.5%/°C to 50% at +70 °C

Isolation

3000 VAC Input to Output, 1500 VAC Input to Ground, 500 VDC Output to Ground

Worldwide Safety Approvals

IEC60950-1 CB report

European Safety Approvals

EN60950-1

US Safety Approvals

CSA 22.2 No. 60950-1-03

EMC

EN55022, level B conducted EN55022, level A radiated
