DSR240 Series

AC-DC Power Supplies

DSR240 Series

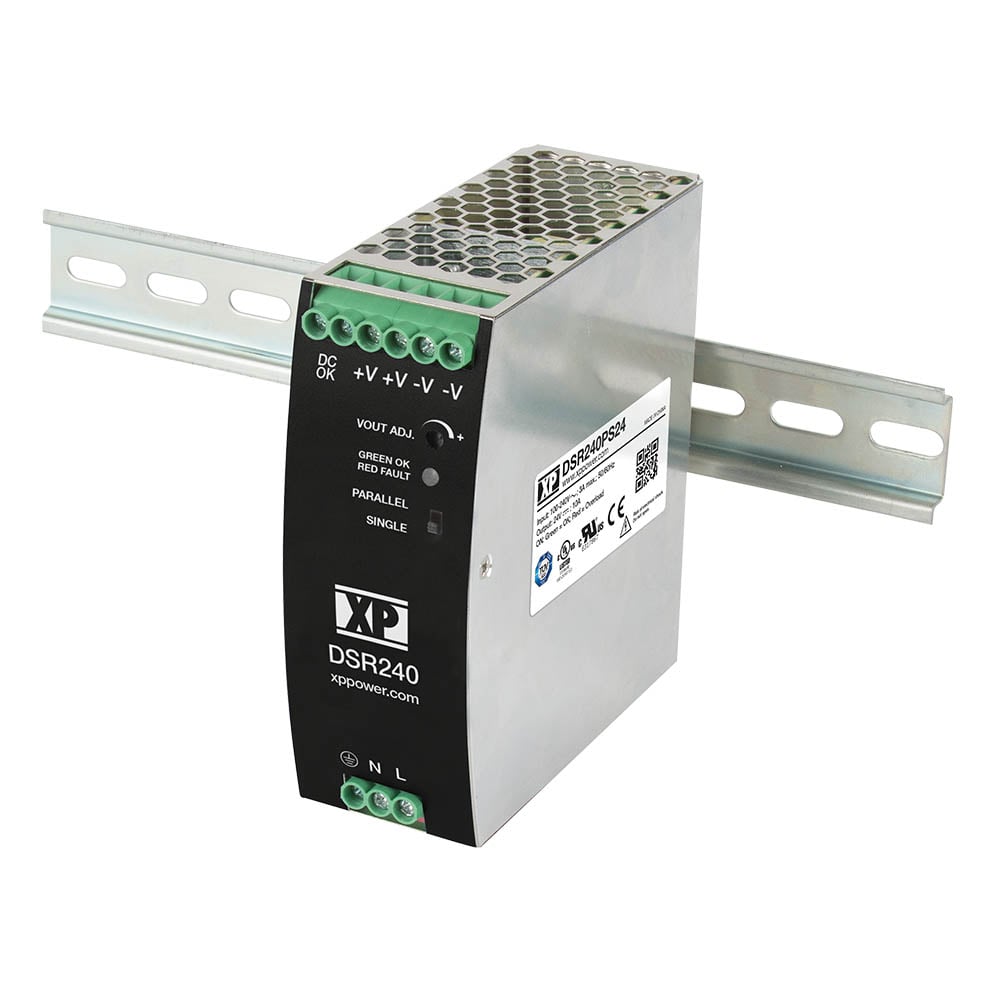

240W slimline DIN rail AC-DC power supplies for ICE & ITE applications

The DSR240 series of AC-DC DIN rail power supplies approved for industrial control systems (ICE) and information technology equipment (ITE) applications. These versatile supplies provide reliable power with a 150% peak load capability in a slimline DIN rail mount metal case. Competitively priced, the DSR240's ultra slim, space saving design features a width of just 45mm.

For use in industrial and building control applications, specific deployment areas include machine control, process control, factory automation, escalator / travelator / elevator / lift control, building heating/aircon monitoring, control and security systems. Technological advancements in these areas require greater automation and control, whilst minimising control system size without compromising reliability. XP Power’s DSR power supplies are perfectly suited to address these needs.



datasheet Contact us

Features

  • Ultra slim design - 45mm
  • 150% peak load for 3 seconds
  • 85 to 264VAC operation
  • High efficiency - up to 94%
  • Volt-free contact for DC OK
  • Selectable parallel operation
  • Ambient operation from -25°C to +70°C
  • Full load at 60°C
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DSR240 DSR240PS24 240 W Single Phase 24V 10A
DSR240 DSR240PS48 240 W Single Phase 48V 5A

Specifications


Dimensions

DSR240: 1.77 x 4.88 x 4.69‚ (45.0 x 124.0 x 119.0 mm)

Input Voltage

85 to 264 VAC

Harmonic Currents

EN61000-3-2, Class A

Efficiency

93% (see datasheet)

Operating Temperature

-25°C to +70°C (see datasheet)

Isolation

Input to Output: 3000 VAC Input to Ground: 2500 VAC Output to Ground: 500 VAC

Worldwide Safety Approvals

IEC62368-1

European Safety Approvals

EN62368-1

US Safety Approvals

UL508/UL60950

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

Conducted & Radiated: EN55032, Class B
