Not Recommended No longer manufactured
Unfortunately, this series is no longer available.
Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

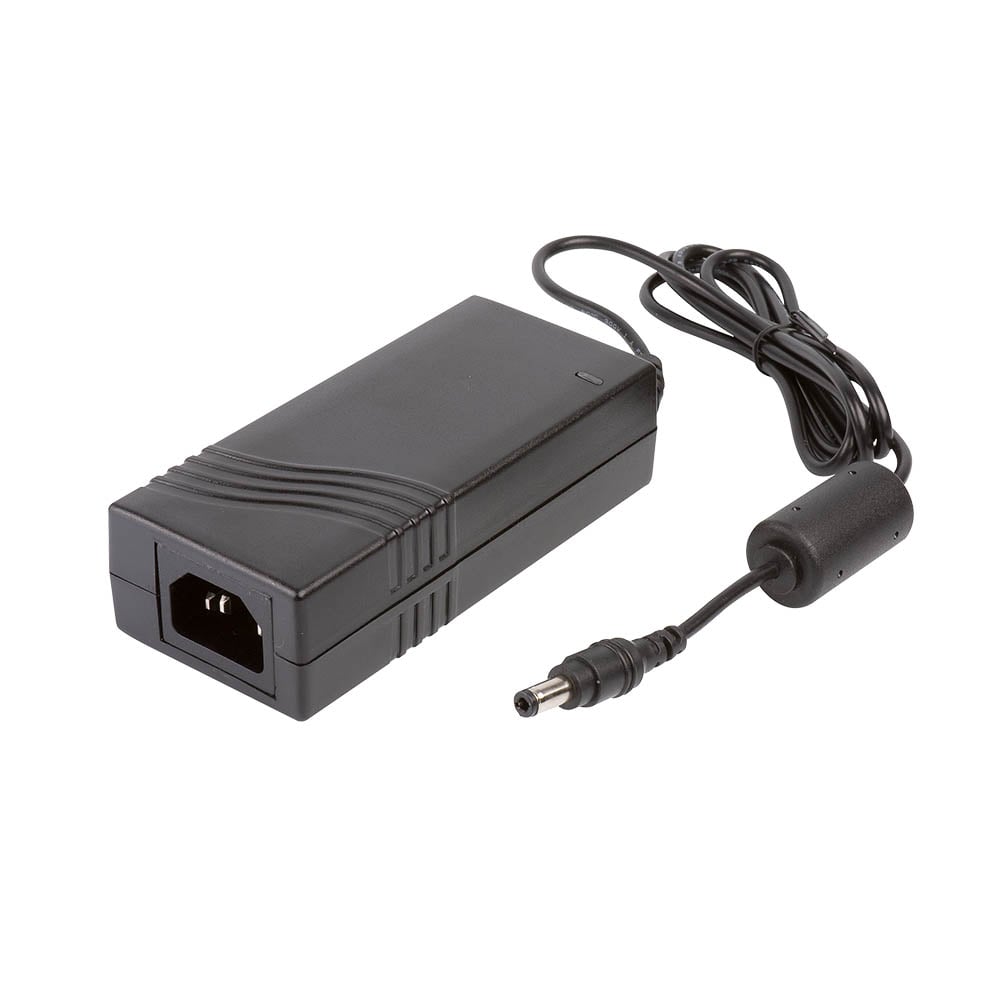

VEF50 Series

AC-DC Power Supplies

VEF50 Series

  • Energy Efficiency Level V
  • CEC 2008 / EISA 2007 / ErP Compliant
  • China Compulsory Certfication (CCC) Qualified
  • Single Outputs from 12 V to 24 V
  • Optional Inlet Connectors
  • No Load Input Power <0.3 W
  • High Power Density
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VEF50 VEF50US12 50 W Single Phase 12V 4.17A
VEF50 VEF50US15 50 W Single Phase 15V 3.33A
VEF50 VEF50US19 50 W Single Phase 19V 2.63A
VEF50 VEF50US24 50 W Single Phase 24V 2.08A

Specifications


Dimensions

VEF50: 4.58 x 2.06 x 1.23 in (116.3 x 52.4 x 31.3 mm)

Input Voltage

90-264 VAC

No Load Input Power

<0.3 W

Harmonic Currents

EN61000-3-2 class A

Efficiency

0.88

Operating Temperature

-10 ?C to +60 ?C derate linearly from 100% load at +40 ?C to 50% load at +60 ?C

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground Negative Output is connected to Ground

Worldwide Safety Approvals

IEC60950-1

European Safety Approvals

EN60950-1

US Safety Approvals

UL/cUL60950-1

Other Safety Approvals

China Compulsory Certification (CCC) qualified Approved as Limited Power Source

EMC

EN55022, level B conducted & radiated
