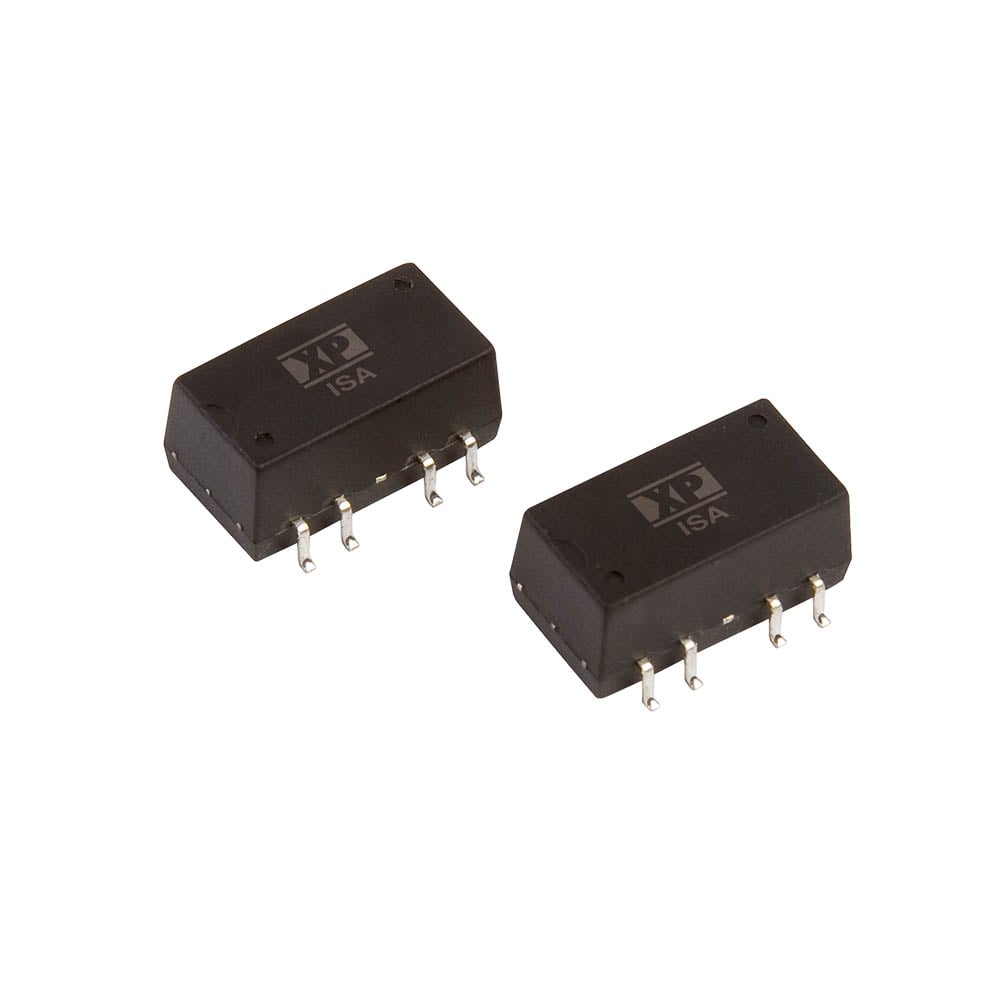

ISA Series
Dual output 1W SMD DC-DC converters
The ISA continues in production for customers with it designed in, however for new projects the IAS01 series is the latest version, constructed around an integrated controller with improved low load and operating efficiency over previous generations, and include continuous short circuit protection with auto recovery.
Features
- Unregulated dual outputs
- ±10% input range
- SMD10 Package
- Industry standard pinout
- 1.5kVDC isolation, 3.0kVDC option
- Tape & Reel option
- Operating temperature -40°C to +105°C
- Full power to +100°C
- 3 year warranty
Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
---|---|---|---|---|---|---|---|---|
ISA0305 | 1W | 2.97 to 3.63VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ | |
ISA0312 | 1W | 2.97 to 3.63VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ | |
ISA0505 | 1W | 4.5 to 5.5VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ | |
ISA0512 | 1W | 4.5 to 5.5VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ | |
ISA0515 | 1W | 4.5 to 5.5VDC | 15V, -15V | 0.033A, -0.033A | Datasheet | Stock | RFQ | |
ISA1205 | 1W | 10.8 to 13.2VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ | |
ISA1209 | 1W | 10.8 to 13.2VDC | 9V, -9V | 0.056A, -0.056A | Datasheet | Stock | RFQ | |
ISA1212 | 1W | 10.8 to 13.2VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ | |
ISA1215 | 1W | 10.8 to 13.2VDC | 15V, -15V | 0.033A, -0.033A | Datasheet | Stock | RFQ | |
ISA1224 | 1W | 10.8 to 13.2VDC | 24V, -24V | 0.021A, -0.021A | Datasheet | Stock | RFQ | |
ISA1515 | 1W | 13.5 to 16.5VDC | 15V, -15V | 0.033A, -0.033A | Datasheet | Stock | RFQ | |
ISA2405 | 1W | 21.6 to 26.4VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ | |
ISA2409 | 1W | 21.6 to 26.4VDC | 9V, -9V | 0.056A, -0.056A | Datasheet | Stock | RFQ | |
ISA2412 | 1W | 21.6 to 26.4VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ | |
ISA2415 | 1W | 21.6 to 26.4VDC | 15V, -15V | 0.033A, -0.033A | Datasheet | Stock | RFQ | |
ISA2424 | 1W | 21.6 to 26.4VDC | 24V, -24V | 0.021A, -0.021A | Datasheet | Stock | RFQ |
