No longer manufacturedUnfortunately, this series is no longer available.
Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

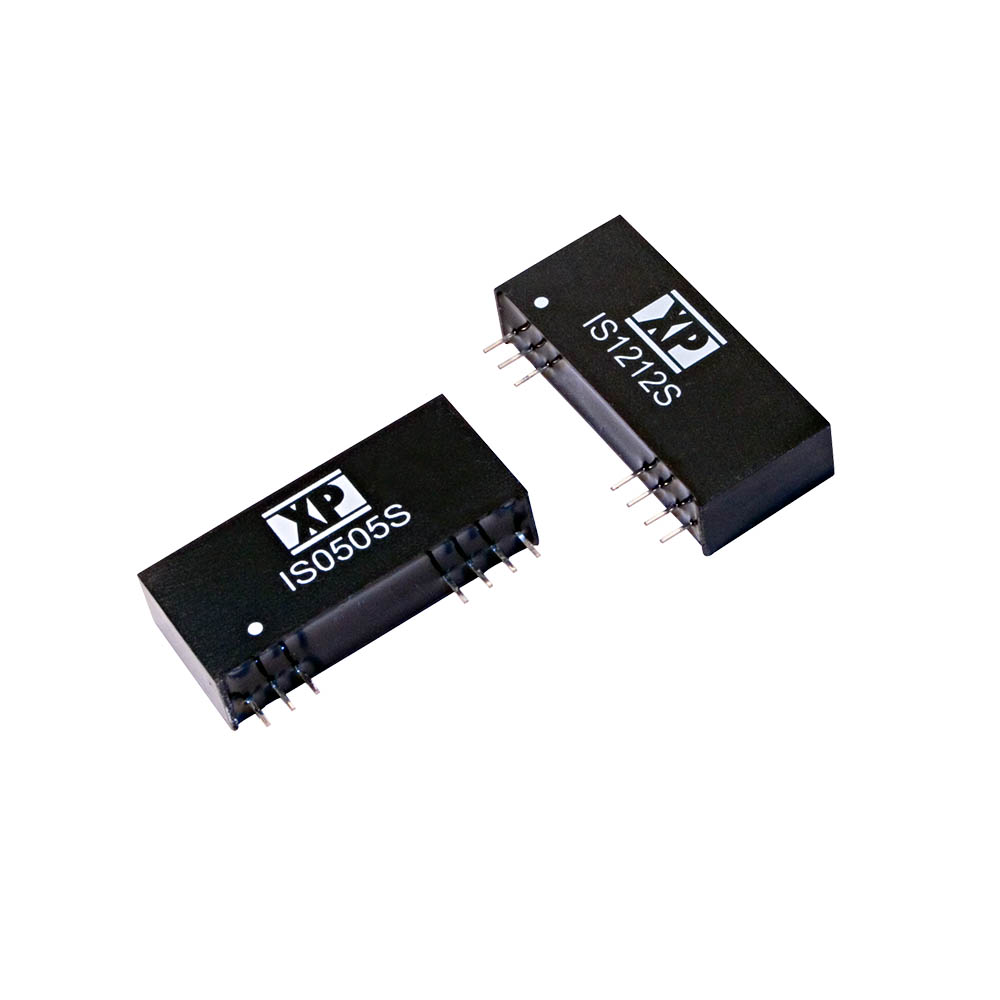

IS Series
±10% input, 3W, regulated, single output DC-DC converters in a SIP12 PCB mount package
The IS series is housed in a SIP12 plastic case for PCB mounting. Featuring a ±10% input voltage range for 5 & 12VDC nominal inputs, offering single outputs of 3.3, 5, 9, 12, 15 & 24VDC.
The 3W IS provides 1kVDC isolation between input and output as standard, with 3kVDC isolation available as an option, short circuit protection is standard. The operating temperature range is from -40°C to +70°C with no derating.
Features
- Regulated single output
- ±10% input range
- Single outputs 3.3 to 24VDC
- SIP12 package
- 1.0kVDC isolation, 3.0kVDC option
- Continuous short circuit protection
- -25°C to +70°C operating temperature
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
IS0503SA | 3W | 4.5 to 5.5VDC | 3.3V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS0505SA | 3W | 4.5 to 5.5VDC | 5V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS0509SA | 3W | 4.5 to 5.5VDC | 9V | 0.333A | Datasheet | Stock | RFQ |
|
|
IS0512SA | 3W | 4.5 to 5.5VDC | 12V | 0.25A | Datasheet | Stock | RFQ |
|
|
IS0515SA | 3W | 4.5 to 5.5VDC | 15V | 0.2A | Datasheet | Stock | RFQ |
|
|
IS0524SA | 3W | 4.5 to 5.5VDC | 24V | 0.125A | Datasheet | Stock | RFQ |
|
|
IS1203SA | 3W | 10.8 to 13.2VDC | 3.3V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS1205SA | 3W | 10.8 to 13.2VDC | 5V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS1209SA | 3W | 10.8 to 13.2VDC | 9V | 0.333A | Datasheet | Stock | RFQ |
|
|
IS1212SA-1 | 3W | 10.8 to 13.2VDC | 12V | 0.25A | Datasheet | Stock | RFQ |
|
|
IS1215SA | 3W | 10.8 to 13.2VDC | 15V | 0.2A | Datasheet | Stock | RFQ |
|
|
IS1224SA | 3W | 10.8 to 13.2VDC | 24V | 0.125A | Datasheet | Stock | RFQ |
|
|
IS2403SA | 3W | 21.6 to 26.4VDC | 3.3V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS2405SA | 3W | 21.6 to 26.4VDC | 5V | 0.6A | Datasheet | Stock | RFQ |
|
|
IS2409SA | 3W | 21.6 to 26.4VDC | 9V | 0.333A | Datasheet | Stock | RFQ |
|
|
IS2412SA | 3W | 21.6 to 26.4VDC | 12V | 0.25A | Datasheet | Stock | RFQ |
|
|
IS2415SA | 3W | 21.6 to 26.4VDC | 15V | 0.2A | Datasheet | Stock | RFQ |
|
|
IS2424SA | 3W | 21.6 to 26.4VDC | 24V | 0.125A | Datasheet | Stock | RFQ |
Environmental Compliance
Declarations of Conformity (DofC)
No resources yet.
