No longer manufactured
Unfortunately, this series is no longer available. Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

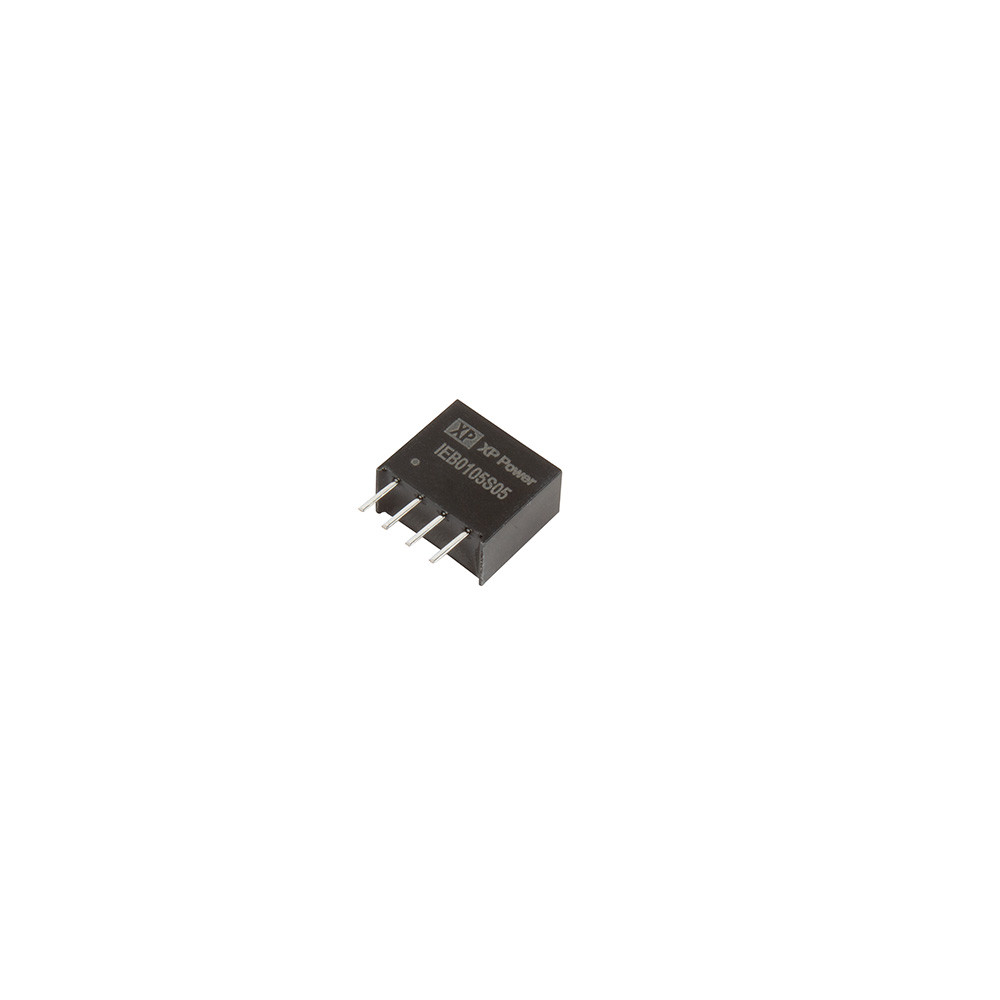

IEB01 Series
±10% input, 1W, unregulated, single output DC-DC converters in a SIP4 PCB mount package
The single output IEB01 series is an ideal solution for isolating voltage rails in a distributed power supply architecture such as analog, digital, data and relay circuits. This product family offers a compact long lasting design with high efficiency, 1.5kV functional isolation, short circuit protection, high operating temperature and high MTBF.
Features
- Unregulated single output
- ±10% input range
- Single outputs 3.3 to 24VDC
- SIP4 package
- 1.5 kVDC isolation
- Continuous short circuit protection
- Class B conducted & radiated emissions
- -40˚C to +105˚C operating temperature
- Full load to +85˚C ambient
- MTBF >3.5Mhrs
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
IEB0105S3V3 | 1W | 4.5 to 5.5VDC | 3.3V | 0.303A | Datasheet | Stock | RFQ |
|
|
IEB0105S05 | 1W | 4.5 to 5.5VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IEB0105S09 | 1W | 4.5 to 5.5VDC | 9V | 0.111A | Datasheet | Stock | RFQ |
|
|
IEB0105S12 | 1W | 4.5 to 5.5VDC | 12V | 0.84A | Datasheet | Stock | RFQ |
|
|
IEB0105S15 | 1W | 4.5 to 5.5VDC | 15V | 0.67A | Datasheet | Stock | RFQ |
|
|
IEB0105S24 | 1W | 4.5 to 5.5VDC | 24V | 0.42A | Datasheet | Stock | RFQ |
|
|
IEB0112S3V3 | 1W | 10.8 to 13.2VDC | 3.3V | 0.303A | Datasheet | Stock | RFQ |
|
|
IEB0112S05 | 1W | 10.8 to 13.2VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IEB0112S09 | 1W | 10.8 to 13.2VDC | 9V | 0.111A | Datasheet | Stock | RFQ |
|
|
IEB0112S12 | 1W | 10.8 to 13.2VDC | 12V | 0.83A | Datasheet | Stock | RFQ |
|
|
IEB0112S15 | 1W | 10.8 to 13.2VDC | 15V | 0.67A | Datasheet | Stock | RFQ |
|
|
IEB0112S24 | 1W | 13.5 to 16.5VDC | 24V | 0.42A | Datasheet | Stock | RFQ |
|
|
IEB0115S05 | 1W | 13.5 to 16.5VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IEB0115S09 | 1W | 13.5 to 16.5VDC | 9V | 0.111A | Datasheet | Stock | RFQ |
|
|
IEB0115S12 | 1W | 13.5 to 16.5VDC | 12V | 0.83A | Datasheet | Stock | RFQ |
|
|
IEB0115S15 | 1W | 13.5 to 16.5VDC | 15V | 0.67A | Datasheet | Stock | RFQ |
|
|
IEB0115S24 | 1W | 13.5 to 16.5VDC | 24V | 0.42A | Datasheet | Stock | RFQ |
|
|
IEB0124S3V3 | 1W | 21.6 to 26.4VDC | 3.3V | 0.303A | Datasheet | Stock | RFQ |
|
|
IEB0124S05 | 1W | 21.6 to 26.4VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IEB0124S09 | 1W | 21.6 to 26.4VDC | 9V | 0.111A | Datasheet | Stock | RFQ |
|
|
IEB0124S12 | 1W | 21.6 to 26.4VDC | 12V | 0.83A | Datasheet | Stock | RFQ |
|
|
IEB0124S15 | 1W | 21.6 to 26.4VDC | 15V | 0.67A | Datasheet | Stock | RFQ |
|
|
IEB0124S24 | 1W | 21.6 to 26.4VDC | 24V | 0.42A | Datasheet | Stock | RFQ |
