Products DC-DC Converters IAB01 Series
No longer manufactured
Unfortunately, this series is no longer available.
Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

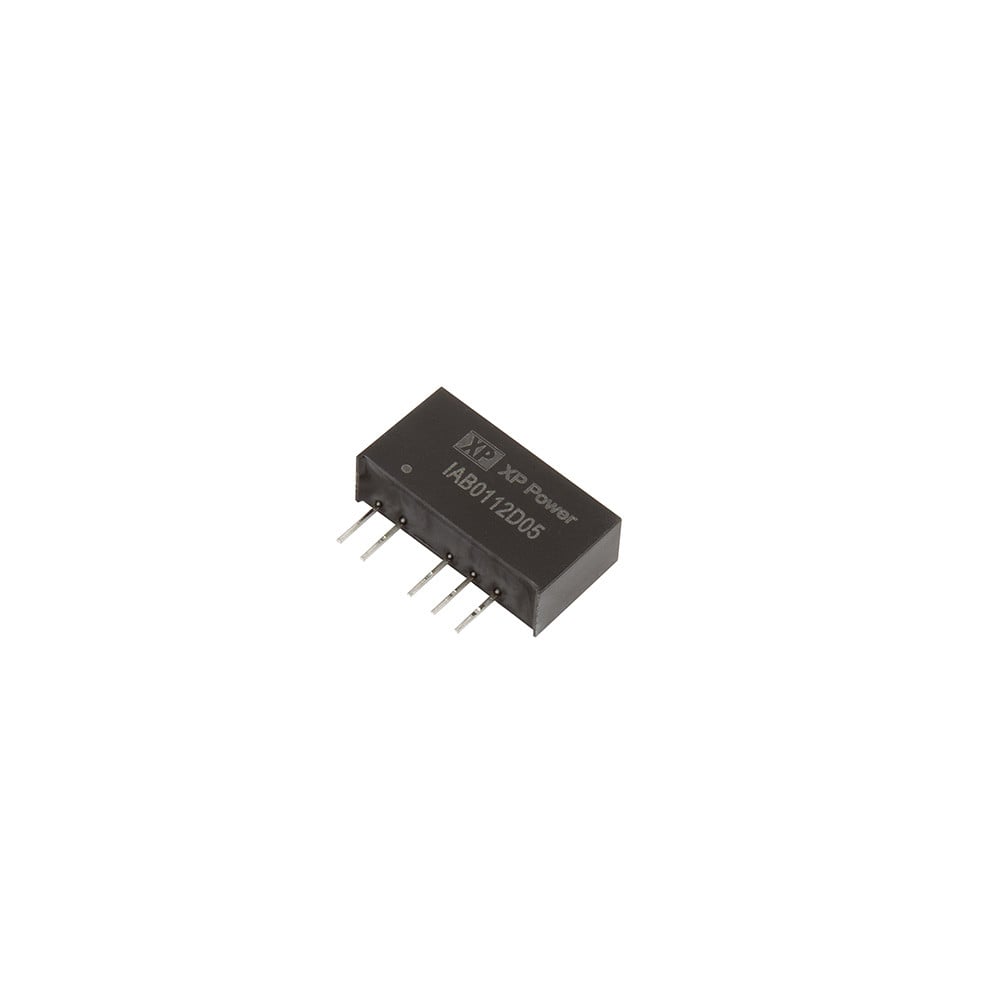

IAB01 Series

±10% input, 1W, unregulated, dual output DC-DC converters in a SIP7 PCB mount package

The dual output IAB01 series is an ideal solution for isolating voltage rails in a distributed power supply architecture such as analog, digital, data and relay circuits. This product family offers a long-lasting compact design with high efficiency, 1.5kV functional isolation, short circuit protection, high operating temperature and high MTBF.

Datasheet Contact us

Features

  • Unregulated dual outputs
  • ±10% input range
  • Dual outputs ±3.3 to ±24VDC
  • SIP7 package
  • 1.5kVDC isolation
  • Short circuit protection
  • Class B conducted & radiated emissions
  • -40˚C to +105˚C operation
  • Full load to 100˚C ambient
  • MTBF >3.5Mhrs
  • 3 year warranty
Image Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
IAB0105D3V3 1W 4.5 to 5.5VDC 3.3V, -3.3V 0.152A, 0.152A Datasheet Stock RFQ
IAB0105D05 1W 4.5 to 5.5VDC 5V, -5V 0.1A, -0.1A Datasheet Stock RFQ
IAB0105D09 1W 4.5 to 5.5VDC 9V, -9V 0.56A, -0.56A Datasheet Stock RFQ
IAB0105D12 1W 4.5 to 5.5VDC 12V, -12V 0.42A, -0.42A Datasheet Stock RFQ
IAB0105D15 1W 4.5 to 5.5VDC 15V, -15V 0.34A, -0.34A Datasheet Stock RFQ
IAB0105D24 1W 4.5 to 5.5VDC 24V, -24V 0.21A, -0.21A Datasheet Stock RFQ
IAB0112D3V3 1W 10.8 to 13.2VDC 3.3V, -3.3V 0.152A, -0.152A Datasheet Stock RFQ
IAB0112D05 1W 10.8 to 13.2VDC 5V, -5V 0.1A, -0.1A Datasheet Stock RFQ
IAB0112D12 1W 10.8 to 13.2VDC 12V, -12V 0.42A, -0.42A Datasheet Stock RFQ
IAB0112D15 1W 10.8 to 13.2VDC 15V, -15V 0.34A, -0.34A Datasheet Stock RFQ
IAB0112D24 1W 10.8 to 13.2VDC 24V, -24V 0.21A, -0.21A Datasheet Stock RFQ
IAB0115D05 1W 13.5 to 16.5VDC 5V, -5V 0.1A, -0.1A Datasheet Stock RFQ
IAB0115D12 1W 13.5 to 16.5VDC 12V, -12V 0.42A, -0.42A Datasheet Stock RFQ
IAB0115D15 1W 13.5 to 16.5VDC 15V, -15V 0.34A, -0.34A Datasheet Stock RFQ
IAB0124D05 1W 21.6 to 26.4VDC 5V, -5V 0.1A, -0.1A Datasheet Stock RFQ
IAB0124D12 1W 21.6 to 26.4VDC 12V, -12V 0.42A, -0.42A Datasheet Stock RFQ
IAB0124D15 1W 21.6 to 26.4VDC 15V, -15V 0.34A, -0.34A Datasheet Stock RFQ
IAB0124D24 1W 21.6 to 26.4VDC 24V, -24V 0.21A, -0.21A Datasheet Stock RFQ

Safety

UL Report – IAB01 - UL62368

Environmental Compliance

RoHS Statement
WEEE Statement
REACH Statement

Declarations of Conformity (DofC)

EU Declaration of Conformity – IAB01
UK Declaration of Conformity – IAB01
IAB01 - STEP 3D Model
